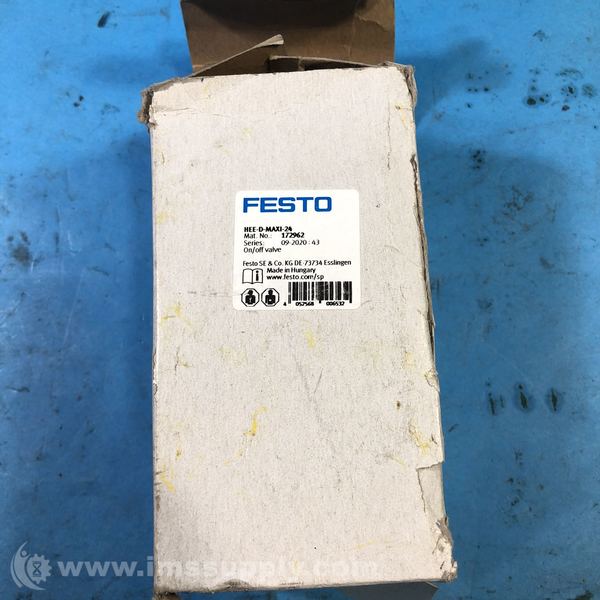

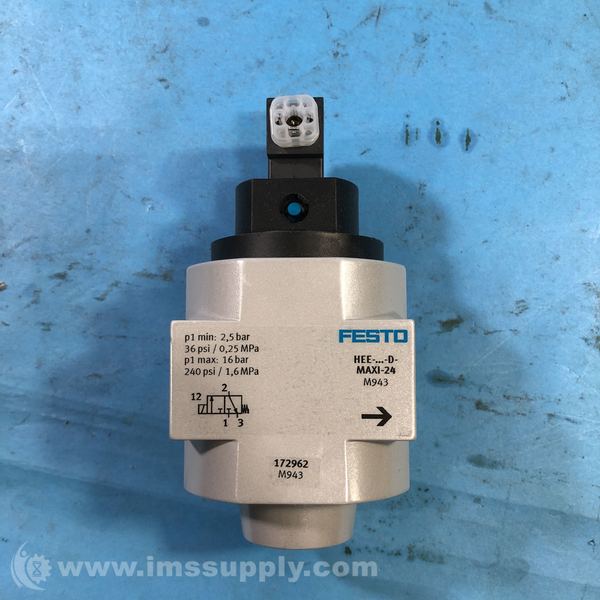

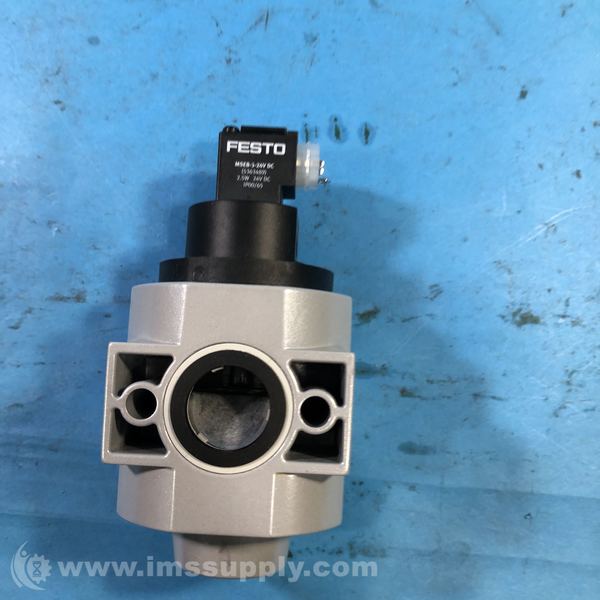

FESTO HEE-D-MAXI-24 ON/OFF VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: HEE-D-MAXI-24
IMS Product Code: 1862142
Packaging: Sold Individually
Description:
Festo HEE-D-MAXI-24 On/Off Valve
Piston gate valve design, Electric type of actuation, Soft sealing principle, Without flow control option exhaust-air function, Detenting manual override, Mechanical spring type of reset, Pilot actuated type of piloting
Specifications
- Size: Maxi
- Operating pressure: 2.5 - 16 bar
- Pneumatic connection: G 3/8"
- Voltage: 24V DC
- Function: 3/2 NC
- Supply voltage: 24 V DC
- Valve function: 3/2-way, closed, monostable
- Coil data: 24 V DC: 2.5 W
- Permissible voltage fluctuations: +/- 10 %
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
- Corrosion resistance class: 2 - Moderate corrosion stress
- Material seals: NBR
- Material housing: Die-cast aluminium
- Media temperature: -10 degrees C to 60 degrees C
- Ambient temperature: -10 degrees C to 60 degrees C
- Pneumatic connection, port 3: G3/8
- Electrical connection: Type C electrical connection, Plugs, To DIN EN 175301-803
- Duty cycle: 100 %
- Type of actuation: Electrical
- Sealing principle: Soft
- Exhaust-air function: Not throttleable
- Manual override: Detenting
- Type of reset: Mechanical spring
- Type of piloting: Piloted
- Product weight: 800 G
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 17 minutes.
Used (Special):
Part has additional attachments. Top attachment MFG: Festo, PN: MSBB-3-24V DC, attachment part cable has been cut. Bottom attachment MFG: Festo, PN: U-3/U-B.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 17 minutes.
Used (Special):
Part has an unknown top attachment with a cut cable sticking out, and is missing a gasket, top attachment MFG: Festo, PN: MSEBB-3-24V DC. Bottom attachment MFG: Festo, PN: U-3/U-B.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 17 minutes.
Used (Special):
This product is missing the MSEBB-3-24V, but includes compressor silencer U-3/8-B 6843.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 17 minutes.
For Parts or Repair:
A non-functional product sold as-is for parts or repair.
Availability: 6 In Stock
Ships today if ordered in the next 12 hours and 17 minutes.
