FESTO MPA-MPM-VI VALVE MANIFOLD
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: MPA-MPM-VI
IMS Product Code: 1761385
Packaging: Sold Individually
Description:

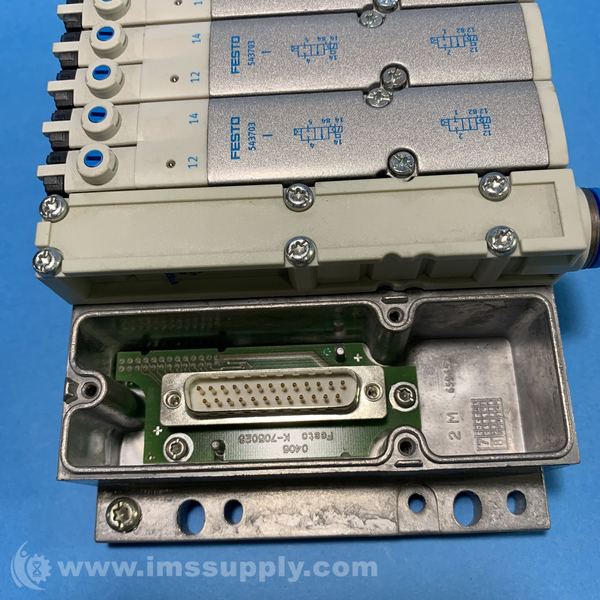

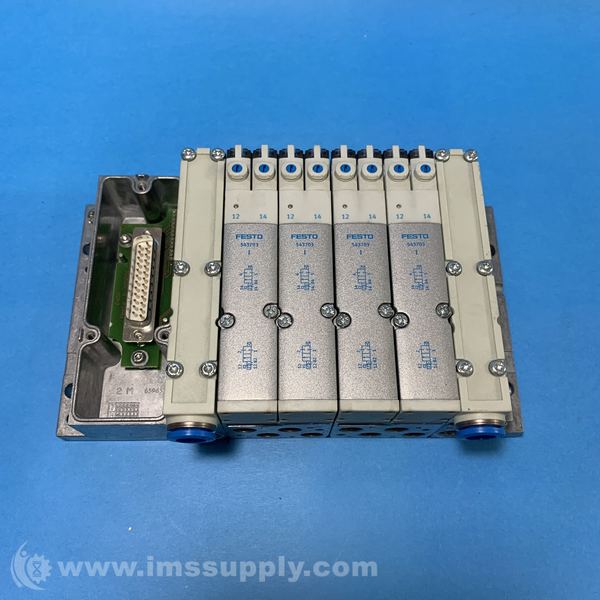

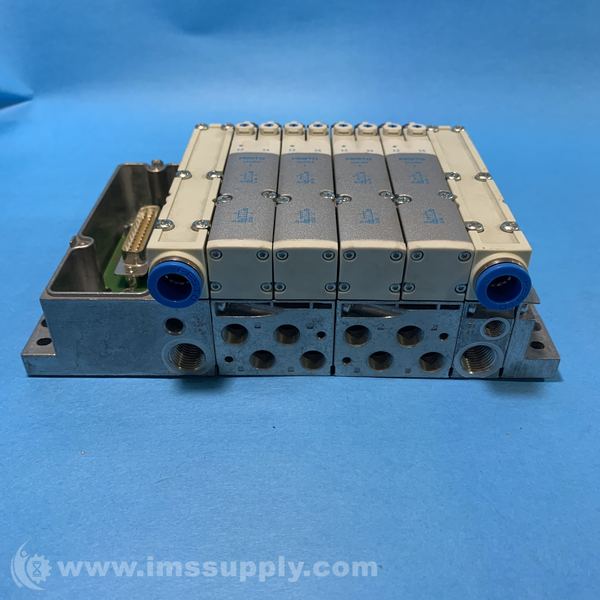

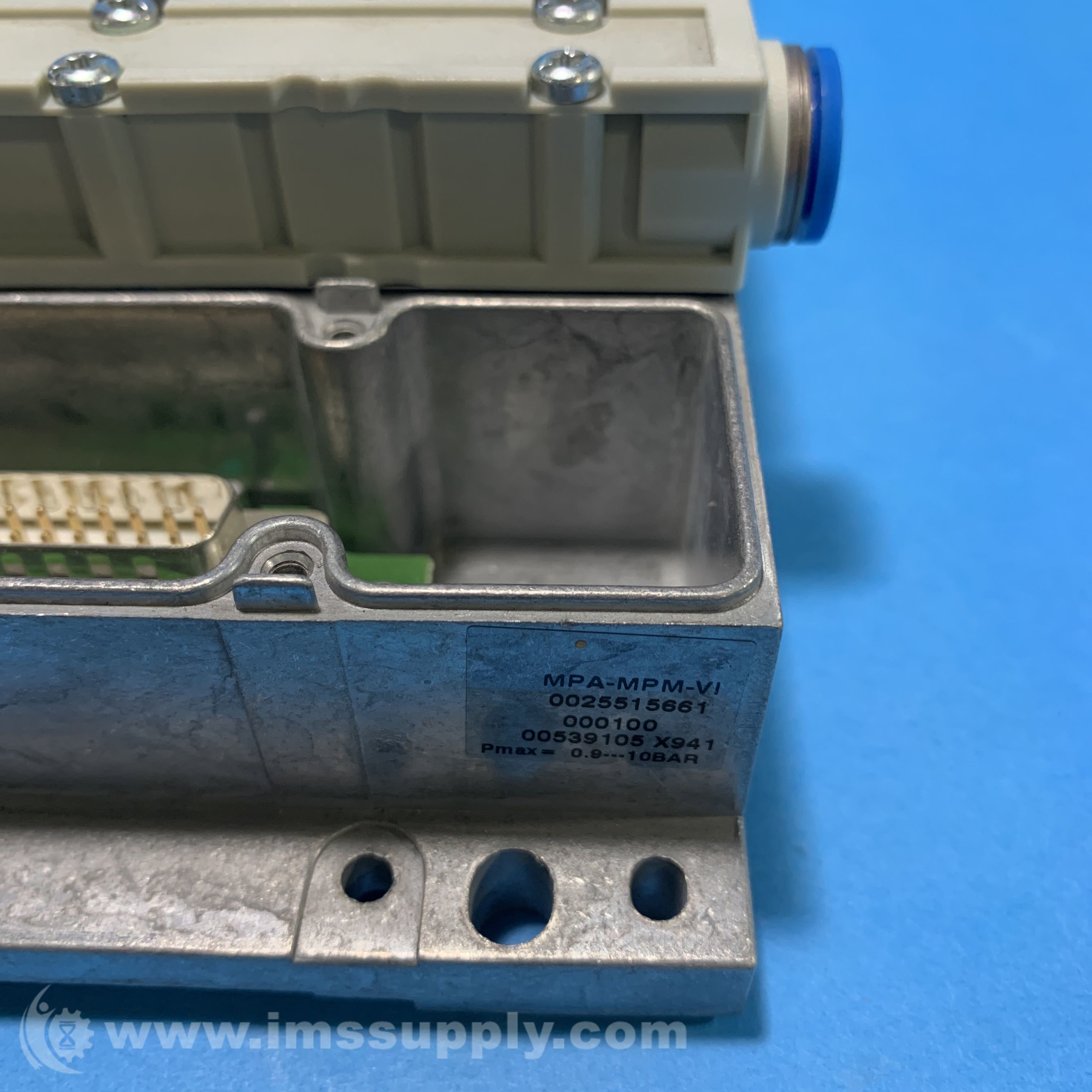

Festo MPA-MPM-VI Valve Manifold
Modular valve manifold with electrical actuation and multi-pin connection. Suitable for various pneumatic applications.
Specifications
- Valve function: 5/2, monostable; 5/3, exhausted; 2x3/2, open/closed, monostable; etc.
- Max. standard nominal flow rate: 360 l/min at 10 mm; 550 l/min at 14 mm; 700 l/min at 20 mm
- Pneumatic working port: QS-6; QS-8; QS-3/16; M7; QS-1/4; G1/8; QS-4; QS-5/16
- Operating pressure: -0.9 bar to 10 bar
- Electrical actuation: Multi-pin
- Max. no. of valve positions: 24
- Ambient temperature: -5 degrees C to 50 degrees C
- Degree of protection: IP67
- Nominal operating voltage DC: 24 V
Used (Special):

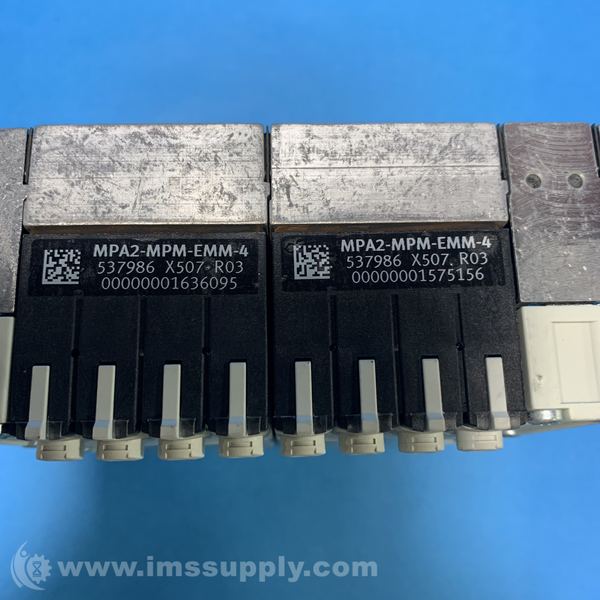

Comes with two Festo MPA2-MPM-EMM-4 and four Festo VMPA2-M1H-I-PI.
Availability: 1 In Stock
