FESTO VMPA2-IC-AP-1 PNEUMATIC VALVE TERMINAL
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VMPA2-IC-AP-1
IMS Product Code: 1761387
Packaging: Sold Individually
Description:

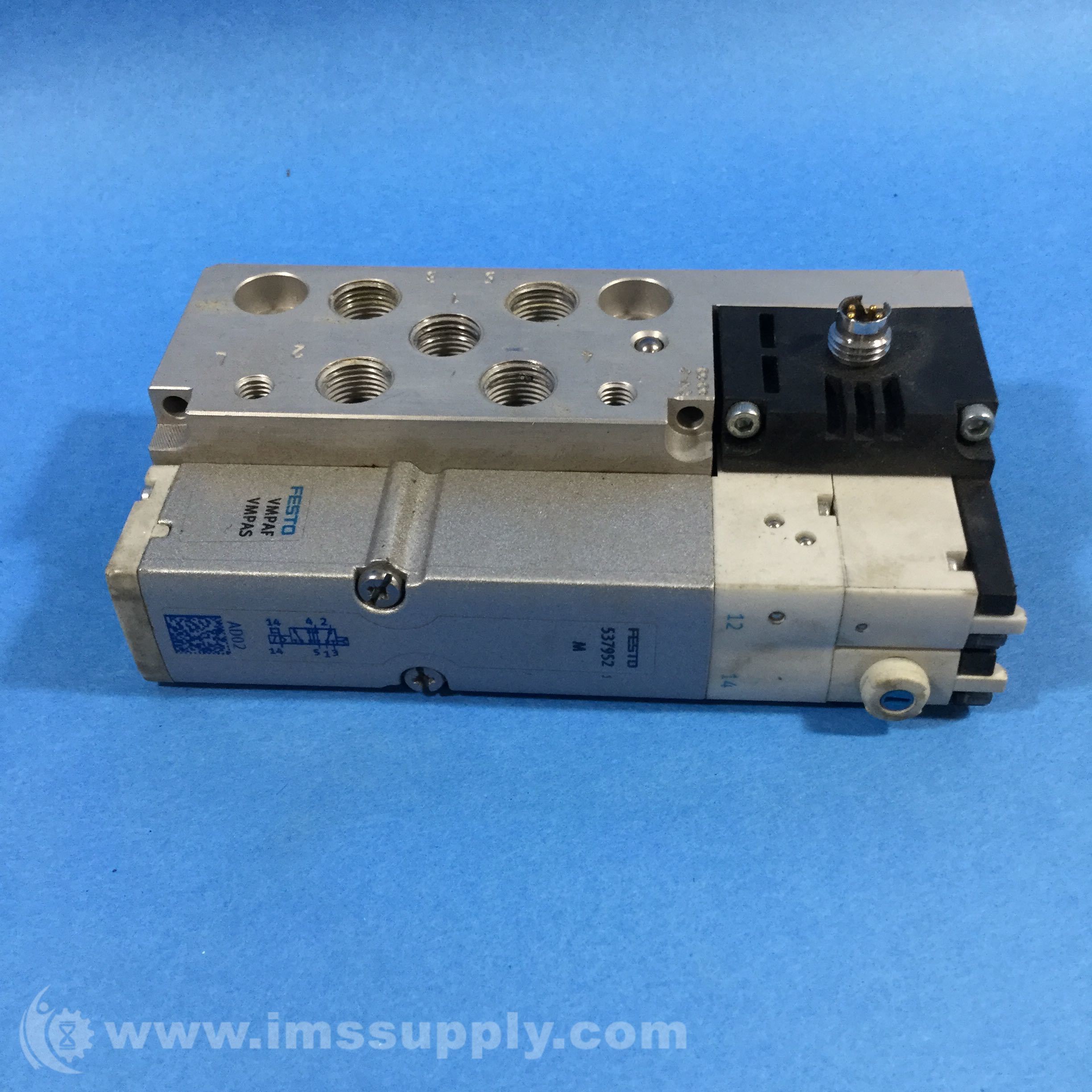

Festo VMPA2-IC-AP-1 Pneumatic Valve Terminal
Pneumatically actuated valve terminal with AP interface, multi-pin plug connection, and internal pilot air supply.
Specifications
- Type: Sub-base
- Interface: AP
- Number of sections: 1
- Actuation type: Pneumatic
- Connection type: Multi-pin plug
- Pneumatic connection: G1/8
- Electrical connection: Multi-pin plug
- Operating voltage: 24V DC
- Operating pressure: 3 - 8 bar
- Pilot pressure: 3 - 8 bar
- Flow rate: 1000 l/min
- Protection class: IP65
- Ambient temperature: -5 - 50 degrees C
- Material: Die Cast Aluminum
- Dimensions: 107.3 mm L x 30.5 mm W
- Grid dimension: 21 mm
- Suitable for: Individual valve MPA2 with internal pilot air supply
- Circuit class: Class 2 Circuits
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
