FS UCP204 PILLOW BLOCK BEARING UNIT
Quick Overview
Brand: FS
Part Number: UCP204
IMS Product Code: 1837001
Packaging: Sold Individually
Description:

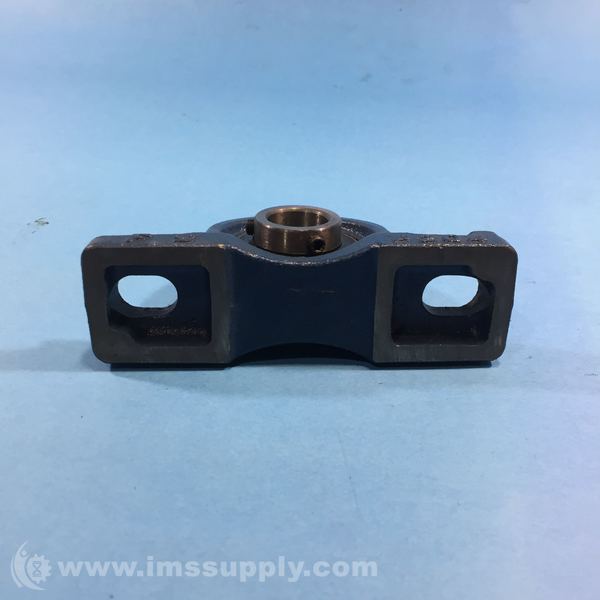

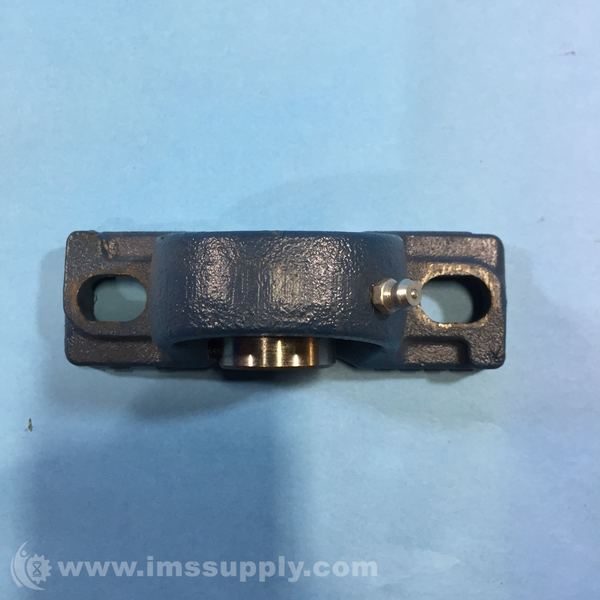

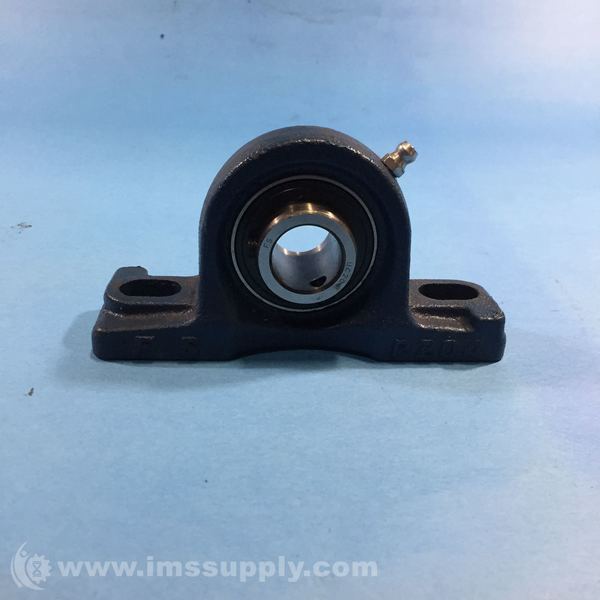

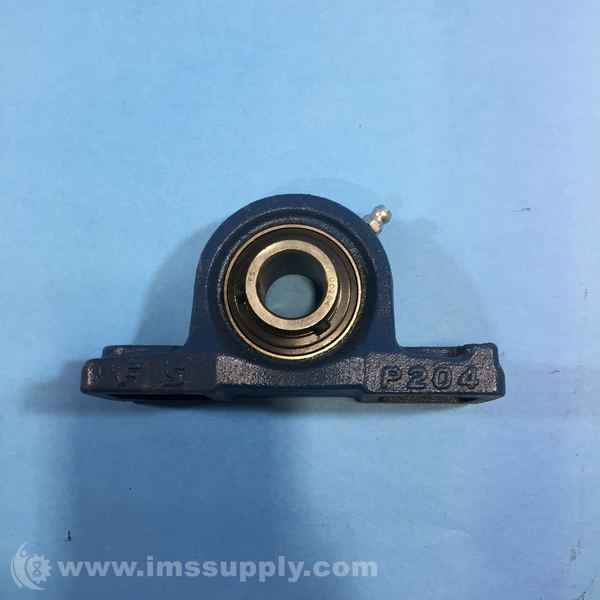

FS UCP204 Pillow Block Bearing Unit
Pillow block bearing unit supporting a rotating shaft with a mounted bearing housed in a cast base, allowing for easy installation and reliable shaft alignment.
Specifications
- Bearing Inner Bore Diameter: 20mm
- Shaft Height: 33.3mm
- Housing Length: 127mm
- Housing Height: 65mm
- Distance Between Centre Of Bolt Holes: 95mm
- Locking Style: Set Screw Locking
- Housing Construction: Two-Bolt Pillow Block
- Bearing Number: UC204
- Shaft Size d: 20 mm
- Base to Center Height H: 33.3 mm
- Total Length L: 127 mm
- Housing Width A: 38 mm
- Bolt Hole Spacing J: 95 mm
- Bolt Hole Size N: 13 mm
- Foot Height H1: 16 mm
- Total Height H2: 65 mm
- Dimension L1: 36 mm
- Inner Ring Width B: 31 mm
- Center of Bearing from End S: 12.7 mm
- Static Load Rating: 6650 N
- Dynamic Load Rating: 12800 N
- Housing Material: CAST IRON
- Insert Material: CHROME STEEL SAE-52100
- Lubrication: CHEVRON SRI-2 GREASE
- Speed Limit: 7,450 RPM
- Weight: 1.25 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
