FYH P212 PILLOW BLOCK BEARING HOUSING
Quick Overview
Manufactured By: FYH, INC.
Manufacturer Part Number: P212
IMS Product Code: 1898267
Packaging: Sold Individually
Description:

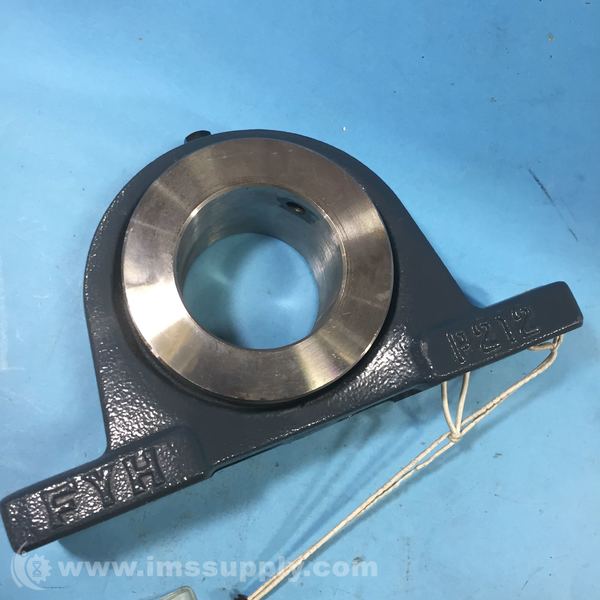

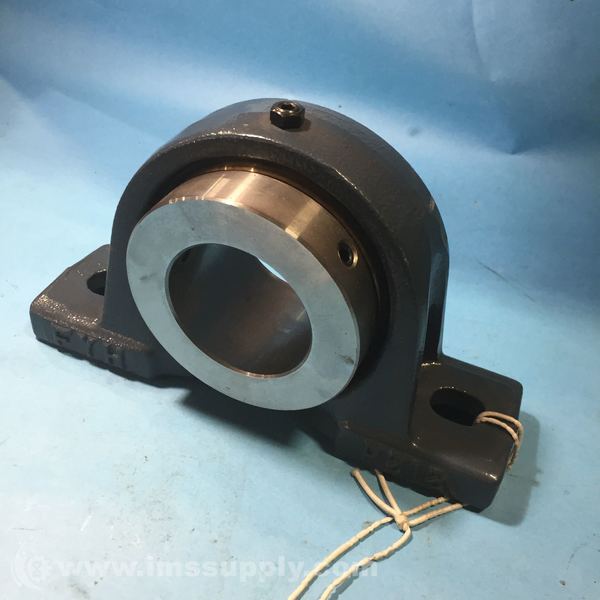

FYH P212 Pillow Block Bearing Housing
Cast iron pillow block bearing housing for industrial applications, accepts UC212 insert bearings.
Specifications
- Shaft Diameter: 60mm (2-1/4" to 2-7/16")
- Mounting Type: 2-Bolt Foot Mount
- Compatible Insert Bearing: UC212
- Material: Cast Iron
- Overall Length (L): 241mm (9.5")
- Height (H): 69.8mm (2.75")
- Overall Height (H2): 138mm (5.39")
- Bolt Spacing (J): 184mm (7.24")
- Base Width (A): 70mm
- Bolt Size: M16
- Bolt Hole Diameter (N): 20mm (.78")
- Series: P200
- Standard: JIS
- Weight: 10.00 LBS
