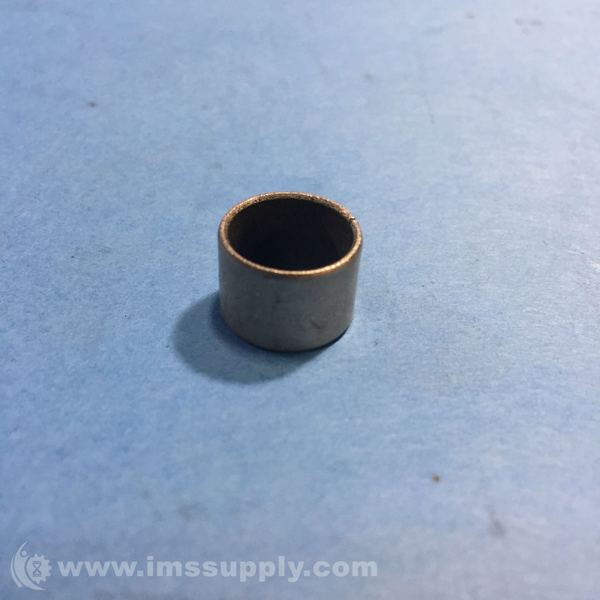

GGB 1210DU PLAIN BEARING
Quick Overview
Brand: GGB
Part Number: 1210DU
IMS Product Code: 1867479
Packaging: Sold Individually
Description:
GGB 1210DU Plain Bearing
Die & Mold Plain-Bearing - 12 mm Bore, 14 mm OD, 10 mm Length, Lead, PTFE Material
Specifications
- Bushing Type: Plain Sleeve
- Bushing Material: Lead, PTFE
- Inside Diameter: 12 mm
- Outside Diameter: 14 mm
- Overall Length: 10 mm
- Groove Type: Plain Interior
- B: 10 mm
- B max.: 10.25 mm
- B min.: 9.75 mm
- Clearance max.: 0.092 mm
- Clearance min.: 0.006 mm
- ci_max: -0.500 mm
- ci_min: -0.100 mm
- co: 0.6 mm
- co_max: 1 mm
- co_min: 0.2 mm
- coa: 20 mm
- coa_max: 28 mm
- coa_min: 12 mm
- Do: 14 mm
- Housing: H7
- dh_min: 14 mm
- Di: 12 mm
- Di,a max. in H7: 12.058 mm
- Di,a min. in H7: 11.99 mm
- Shaft: f7
- dj_min: 11.966 mm
- ep: 1 mm
- Inner (d) MM: 12
- Outer (D) MM: 14
- Width (B) MM: 10
- Inner (d) Inch: 0.4724
- Outer (D) Inch: 0.5512
- Width (B) Inch: 0.3937
- Weight (kg): 0.003
- Suffix description: DU Steel Backing, Bearing Lining Is PTFE+Lead
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships today if ordered in the next 7 hours and 6 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 6 minutes.
