IDC SELECT UCF208-24 4-BOLT FLANGE UNIT
Quick Overview
Manufactured By: IDC SELECT
Manufacturer Part Number: UCF208-24
IMS Product Code: 1923742
Packaging: Box of 2
Description:

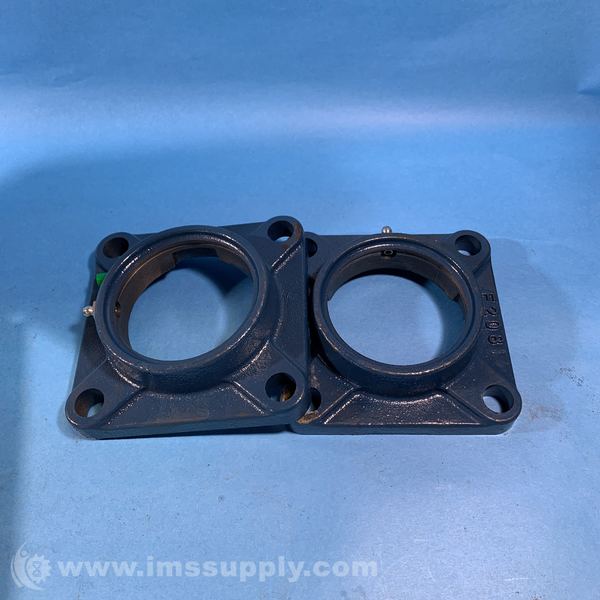

IDC Select UCF208-24 4-Bolt Flange Unit
Flange mounted bearing with set screw locking design, 1.5 inch bore diameter, 5.125 inch overall length.
Specifications
- shaft diameter: 1-1/2 inch
- housing length: 5-1/8 inch
- mounting hole center-to-center: 4-1/64 inch
- mounting base to bearing center: 53/64 inch
- housing base thickness: 5/8 inch
- flange height: 1-27/64 inch
- mounting hole diameter: 5/8 inch
- flange assembly height: 2-1/64 inch
- bearing inner race width - short side: 0.75 inch
- bolt size: 1/2 inch
- insert number: UC208-24
- weight: 4.14 lb
- basic dynamic load rating: 2877.55 lb
- basic static load rating: 4069.04 lb
- locking device: Set Screw
- grease fitting: 1/8-27 NPT
- series: UCF
- type: Flange Mounted Bearing
- bore diameter: 1.5 inch
- bolt center-to-center length: 4.0156 inch
- overall length/diameter: 5.125 inch
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
