IDEC NC1V-1100-2AA CIRCUIT PROTECTOR
Quick Overview
Manufactured By: IDEC
Manufacturer Part Number: NC1V-1100-2AA
IMS Product Code: 2125415
Packaging: Sold Individually
Description:

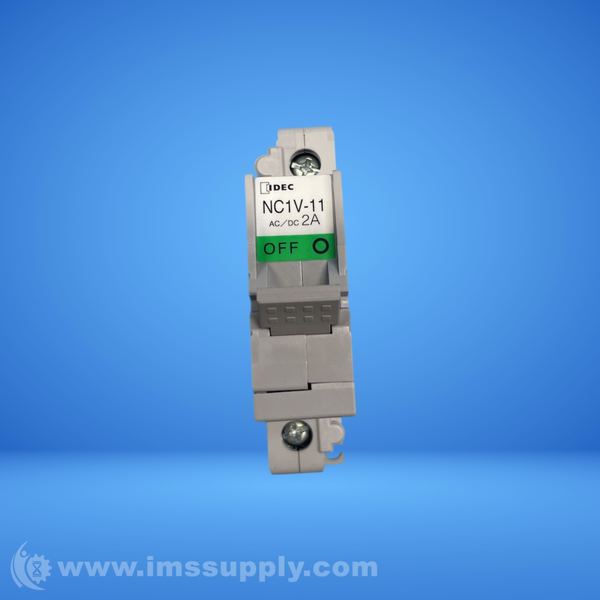

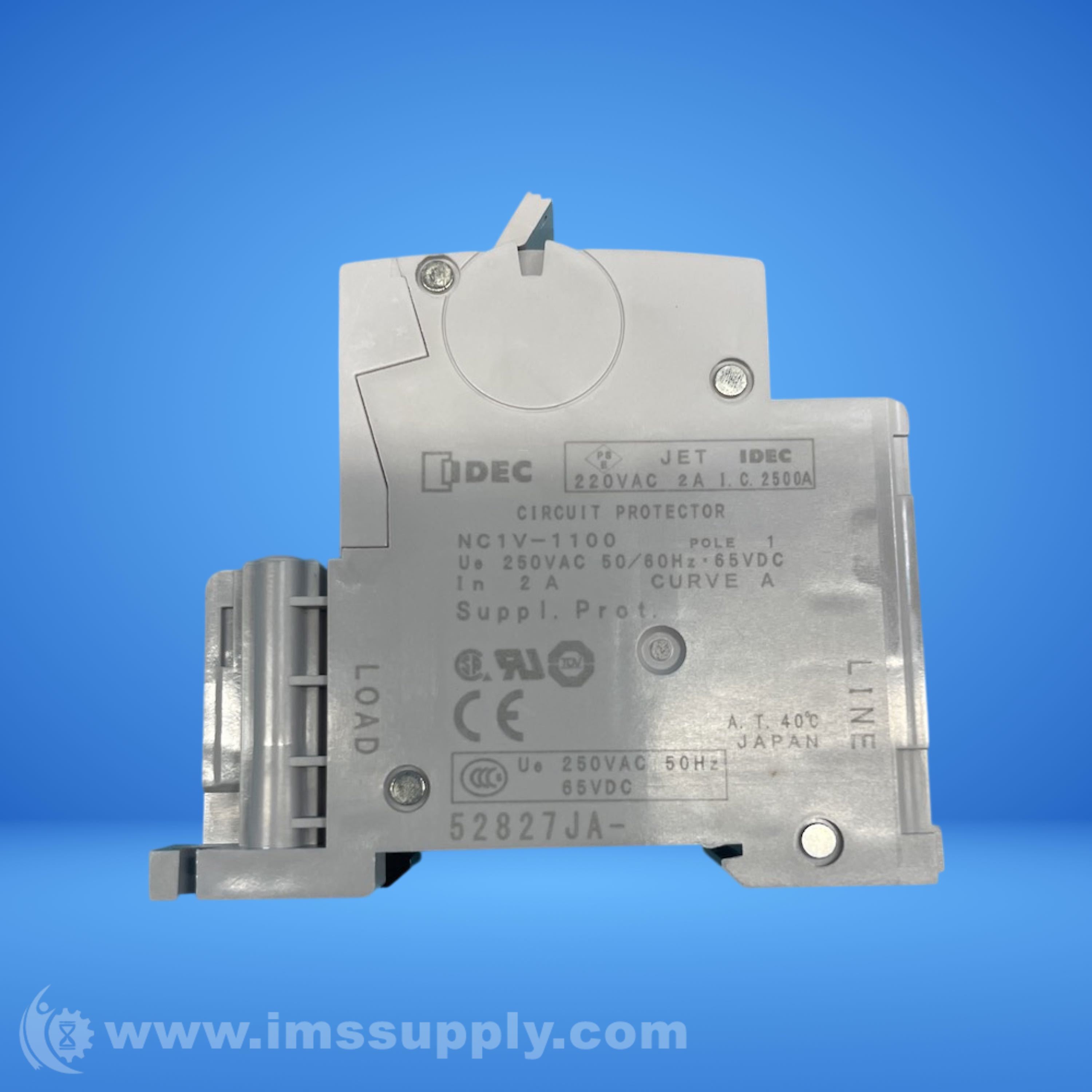

IDEC NC1V-1100-2AA Circuit Protector
1 pole circuit protector with 2A rated current, series trip operation, and medium curve tripping characteristic.
Specifications
- Number Of Poles: 1-position
- Rated Voltage: 250 V AC 50/60 Hz, 65 V DC
- Rated Current: 2 A
- Rated Breaking Current: AC250V 2,500 A, DC65V 2,500 A
- Tripping Operation Characteristics: Medium speed type (A characteristic)
- Operation Method: Flat handle system
- Protection Method: Fluid electromagnetic tripping method, electromagnetic tripping method
- Internal Circuit: Series trip (current trip)
- Insulation Resistance: 100 MO or more (500 V DC megger)
- Withstand Voltage: 2,000 V AC for 1 minute
- Vibration Resistance: Durability: 10 to 55 Hz 147 m/s^2, malfunction: 10 to 55 Hz 98 m/s^2
- Impact Resistance: Durability: 490 m/s^2, malfunction: 196 m/s^2
- Durability: Electrical 10,000 times or more (at rated current)
- Standard Ambient Temperature: 40?
- Ambient Operating Temperature: -10 to +60? (no freezing)
- Ambient Storage Temperature: -40 to +60? (no freezing)
- Ambient Operating Humidity: 45 to 85% RH (no condensation)
- Ambient Storage Humidity: 45 to 85% RH (no condensation)
- Terminal Shape: Main circuit terminal: SS terminal structure: M4 screw terminal
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
