IFM KF5001 CAPACITIVE SENSOR
Quick Overview
Manufactured By: IFM EFECTOR
Manufacturer Part Number: KF5001
IMS Product Code: 2131613
Packaging: Sold Individually
Description:

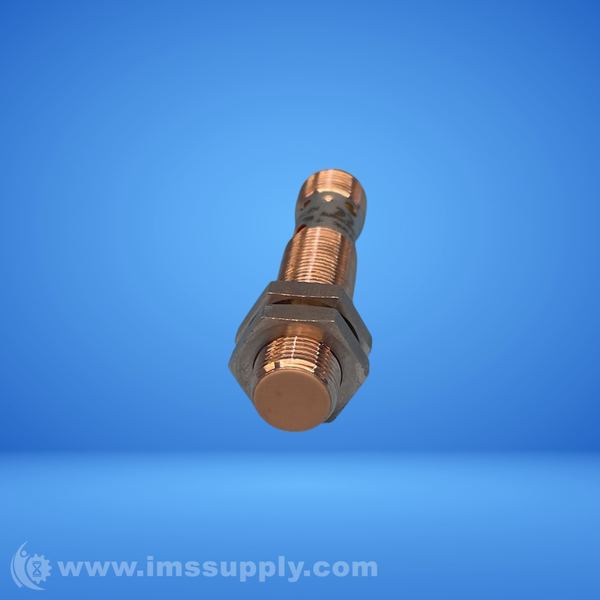

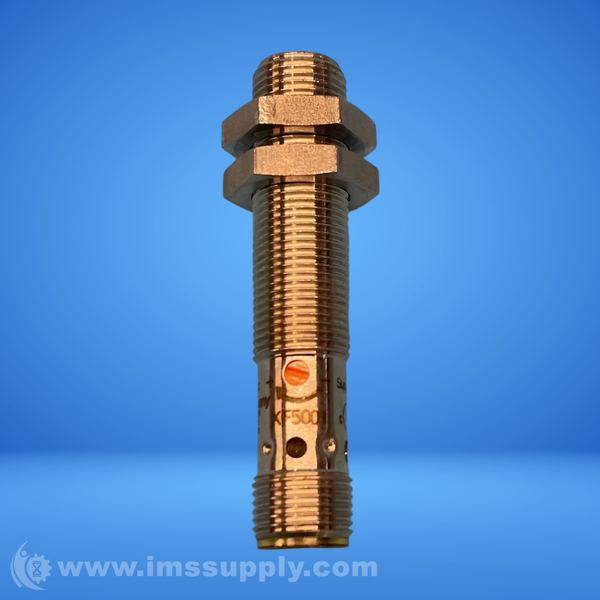

IFM KF5001 Capacitive Sensor
Capacitive proximity sensor with threaded housing, PNP output, normally open, 1-6mm sensing range, M12 connector, IP65 rating, stainless steel and PEEK construction.
Specifications
- Current Type: AC
- Sensor Type: Solid State
- Housing Material: Stainless Steel
- Current Rating: 12 mA
- Max Operating Temperature: 70 degrees C
- Min Operating Temperature: -25 degrees C
- Sensing Distance: 1 mm
- Switching Current: 100 mA
- Switching Frequency: 50 Hz
- Termination: Connector
- Height: 59.8 mm
- Length: 12 mm
- Ratings: IP65
- Electrical design: PNP
- Output function: normally open
- Sensing range [mm]: 1...6
- Housing: Threaded type
- Dimensions [mm]: M12 x 1 / L = 60
- Operating voltage [V]: 10...36 DC
- Current consumption [mA]: < 12
- Protection class: III
- Reverse polarity protection: yes
- Max. voltage drop switching output DC [V]: 2.5
- Permanent current rating of switching output DC [mA]: 100
- Short-circuit proof: yes
- Overload protection: yes
- Sensing range adjustable: yes
- Factory setting sensing range [mm]: 4
- Real sensing range Sr [mm]: 4 ± 10 %
- Hysteresis [% of Sr]: 1...15
- Switch-point drift [% of Sr]: -20...20
- Ambient temperature [°C]: -25...70
- Protection: IP 65
- Increased immunity: yes
- EMC: EN 60947-5-2
- MTTF [years]: 636
- Weight [g]: 39.3
- Mounting: flush mountable
- Thread designation: M12 x 1
- Material: stainless steel (1.4404 / 316L); PEEK
- Display: 1 x LED, yellow

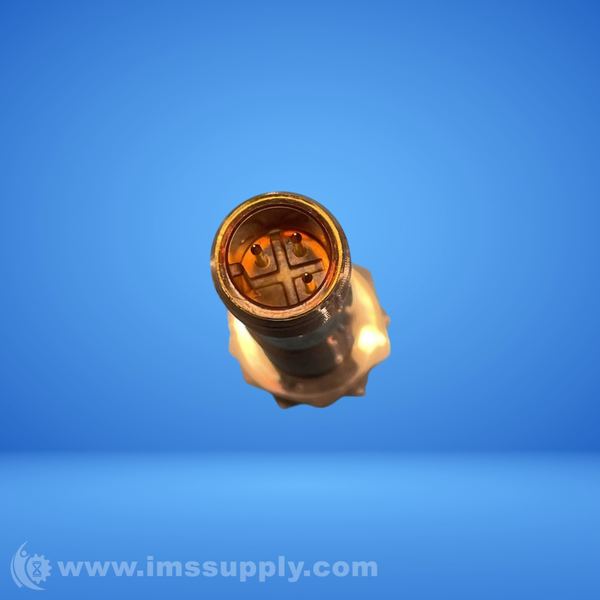

- Connection: Connector: 1 x M12; coding: A
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 7 In Stock
Ships today if ordered in the next 5 hours and 14 minutes.
New - Missing Box (Special):
missing washers
Availability: 2 In Stock
Ships today if ordered in the next 5 hours and 14 minutes.
