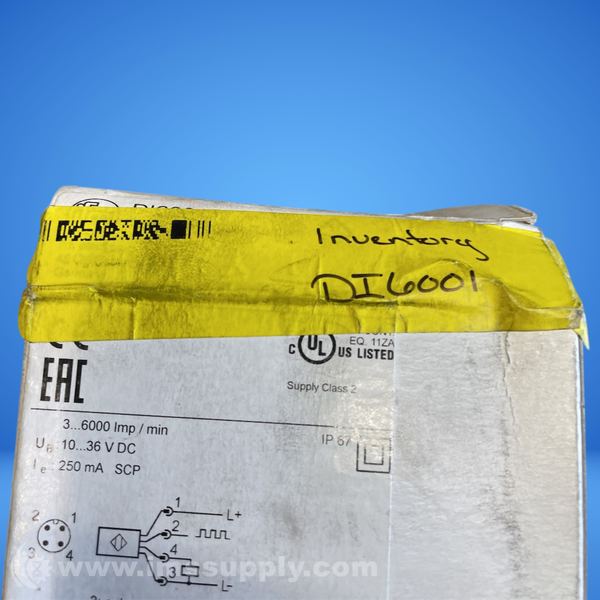

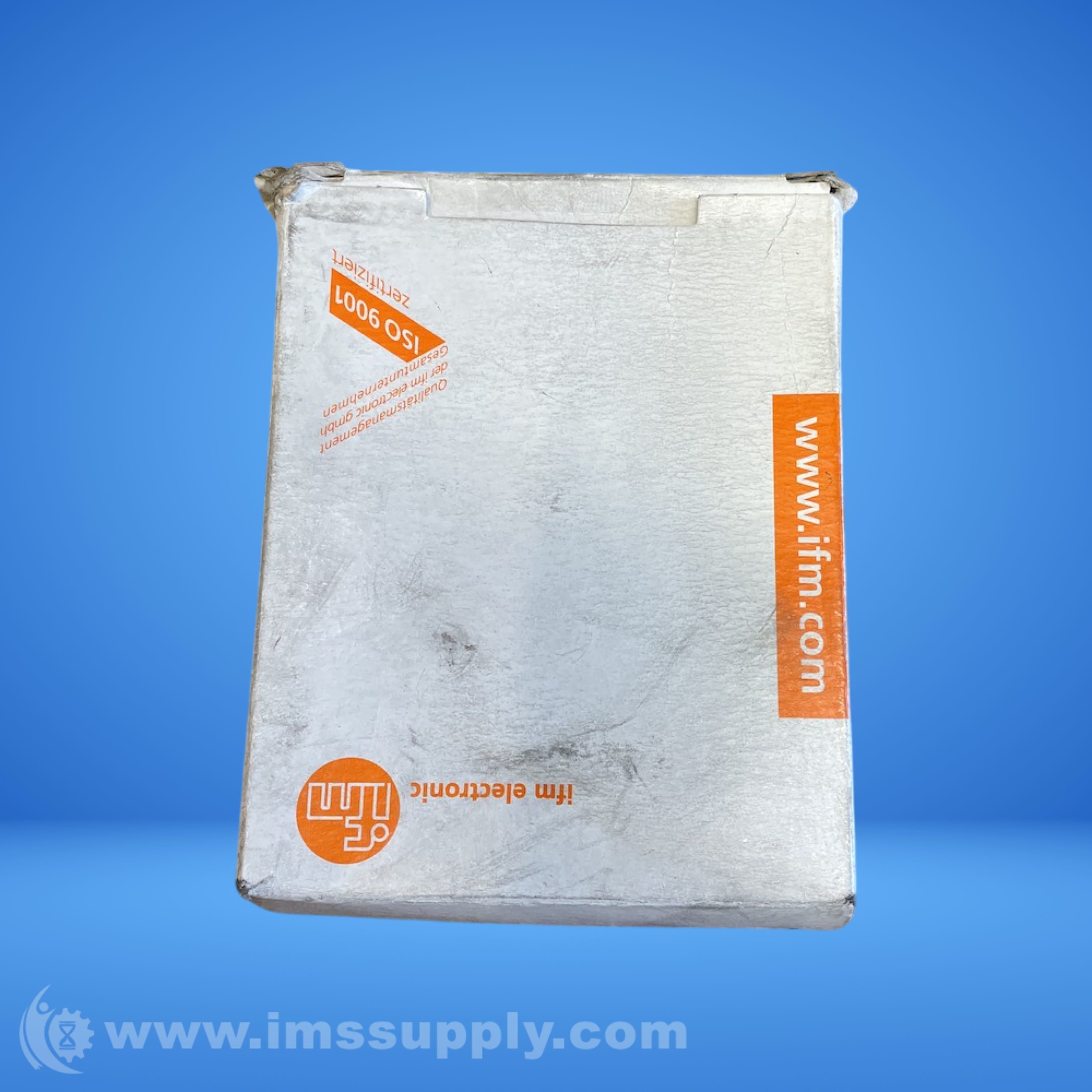

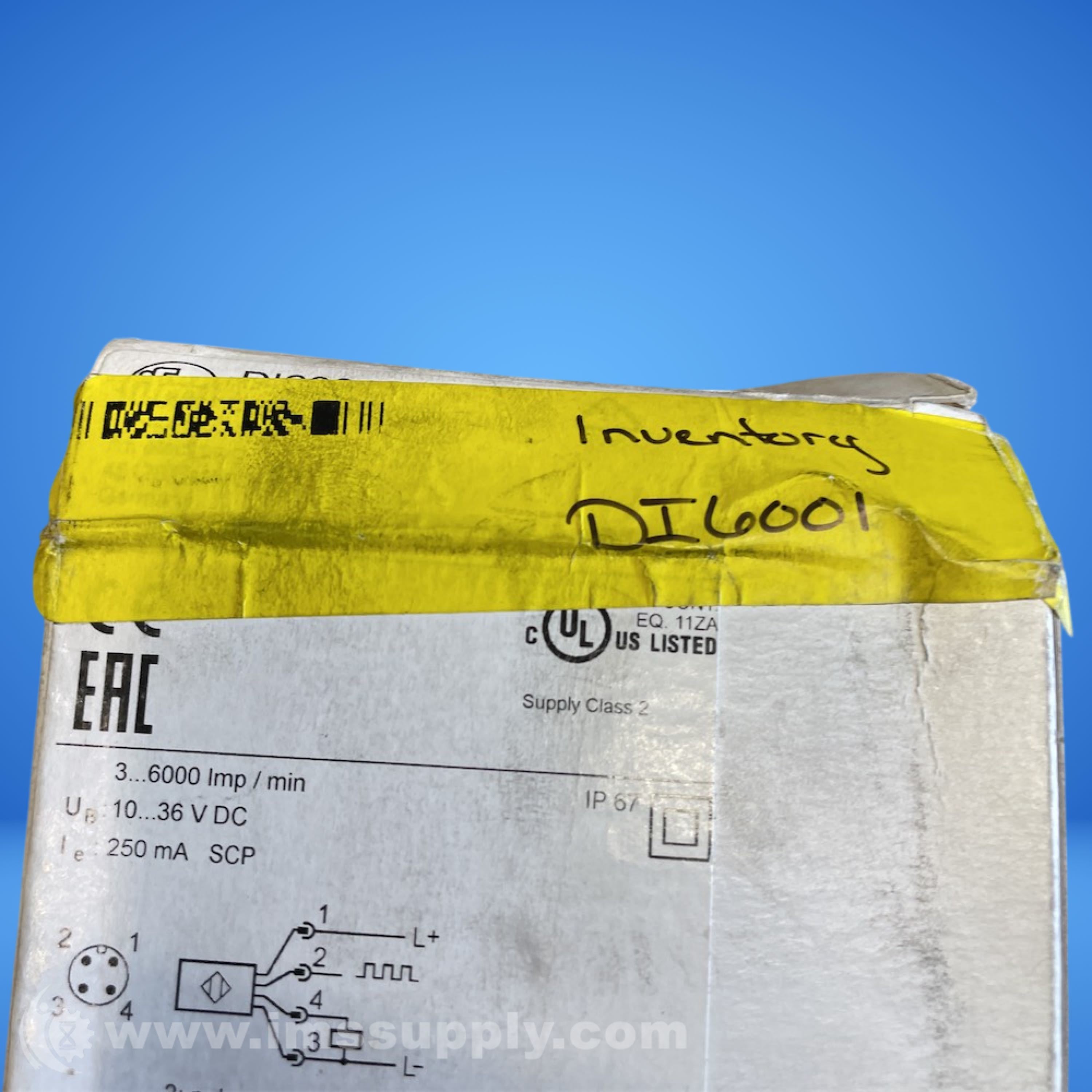

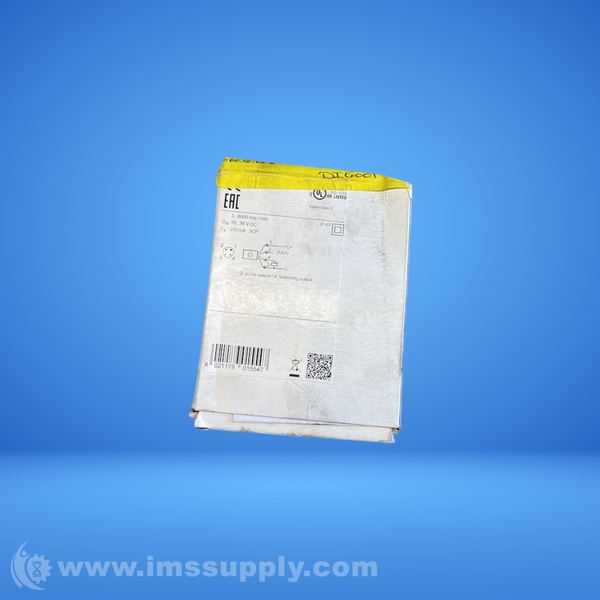

IFM DI6001 COMPACT SPEED MONITOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: DI6001
IMS Product Code: 2146101
Packaging: Sold Individually
Description:
Ifm DI6001 Compact Speed Monitor
Compact evaluation unit for speed monitoring with inductive sensing principle, PNP electrical design, and configurable output function. Features threaded housing with M18 x 1 dimensions and IP67 protection.
Specifications
- Electrical design: PNP
- Output function: normally open / normally closed (parameterisable)
- Sensing range: 12 mm
- Housing: threaded type
- Dimensions: M18 x 1 / L = 68 mm
- Nominal voltage DC: 10...36 V
- Current consumption: < 15 mA
- Protection class: II
- Reverse polarity protection: yes
- Short-circuit protection: yes
- Measuring principle: inductive
- Ambient temperature: -20...80 degrees C
- Protection: IP 67
- Material: stainless steel (1.4571/316Ti); PBT
- Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated
