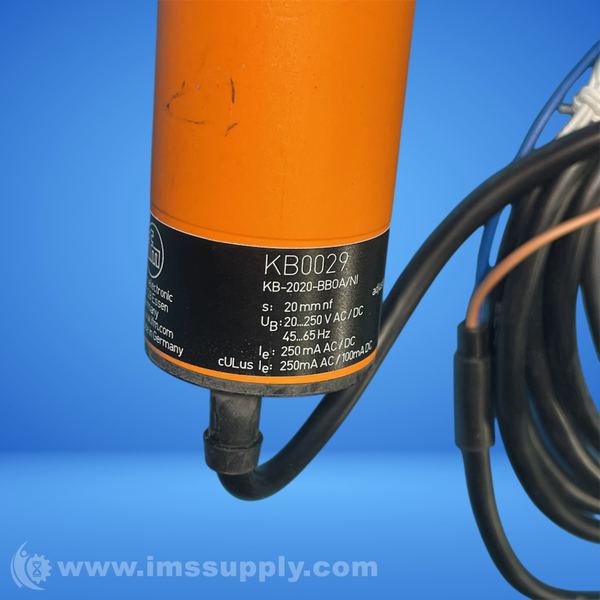

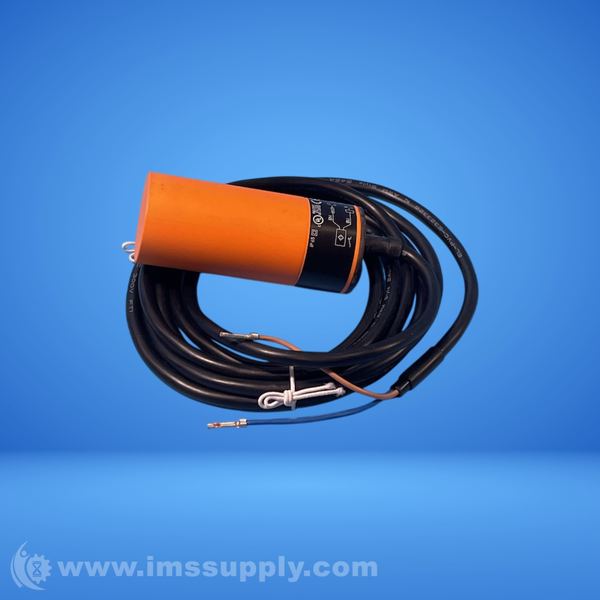

IFM KB0029 CAPACITIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: KB0029
IMS Product Code: 2075983
Packaging: Sold Individually
Description:
Ifm KB0029 Capacitive Sensor
Capacitive sensor with combined AC/DC output stage, two-wire technology, and smooth plastic housing. Non-flush mountable with adjustable sensing range of 3-20 mm.
Specifications
- Output Function: Normally closed
- Sensing Range: 3 - 20 mm
- Housing: Tubular
- Dimensions: Dia. 34 / L = 81 mm
- Operating Voltage: 20 - 250 AC/DC V
- Protection Class: II
- Maximum Voltage Drop Switching Output DC: 8 V
- Maximum Voltage Drop Switching Output AC: 10 V
- Minimum Load Current: 5 mA
- Maximum Leakage Current: 2.5 (250 V AC), 1.7 (110 V AC), 1.5 (24 V DC) mA
- Permanent Current Rating of Switching Output AC: 200 mA
- Permanent Current Rating of Switching Output DC: 200 mA
- Short-Time Current Rating of Switching Output: 1500 mA
- Switching Frequency AC: 25 Hz
- Switching Frequency DC: 40 Hz
- Sensing Range Adjustable: Yes
- Factory Setting Sensing Range: 20 mm
- Real Sensing Range Sr: 20 � 10 % mm
- Operating Distance: 0 - 16.2 mm
- Correction Factor: Glass: 0.4, Water: 1, Ceramics: 0.2, PVC: 0.2
- Hysteresis: 1 - 15 % of Sr
- Switch-Point Drift: -15 - 15 % of Sr
- Ambient Temperature: -25 - 70 degrees C
- Protection: IP 65
- Increased Immunity: Yes
- MTTF: 488 Years
- Weight: 258.5 g
- Mounting: Non-flush mountable
- Material: PBT
- Connection: PVC cable / 2 m, 2 x 0.5 mm�
- Output status indication: LED yellow
- Cable type: PVC-Cable
- Shortcode: KB-2020-BBOA/NI
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 35 minutes.
Used (Special):
looks like cord has been cut
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 35 minutes.
