INA D25 BALL THRUST BEARING
Quick Overview
Manufactured By: INA
Manufacturer Part Number: D25
IMS Product Code: 1954193
Packaging: Sold Individually
Description:

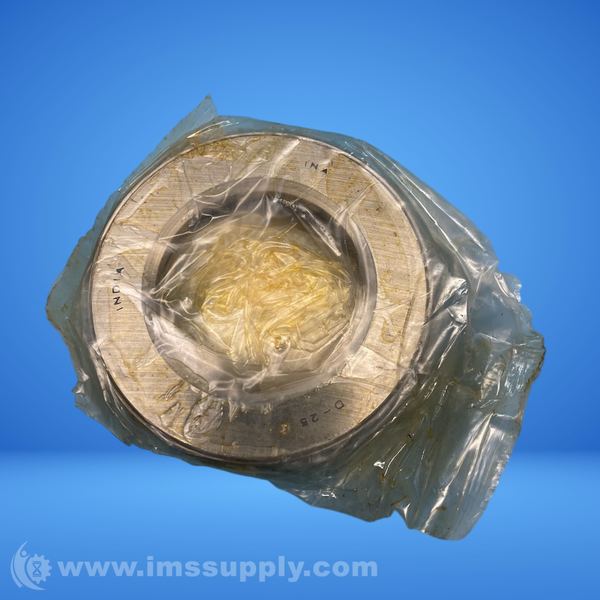

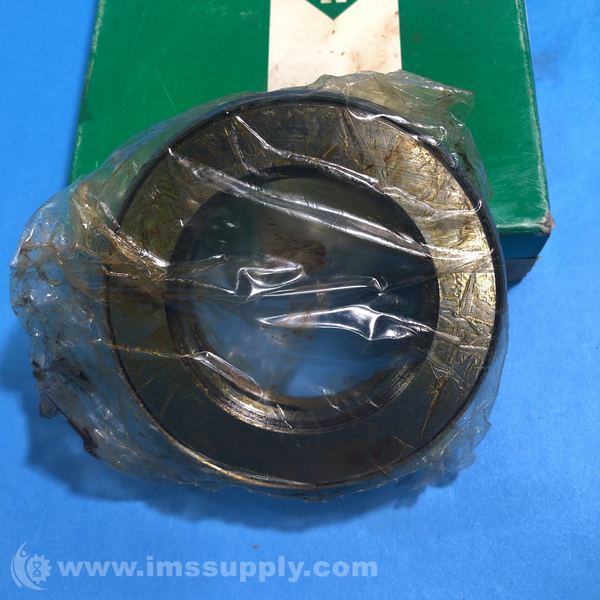

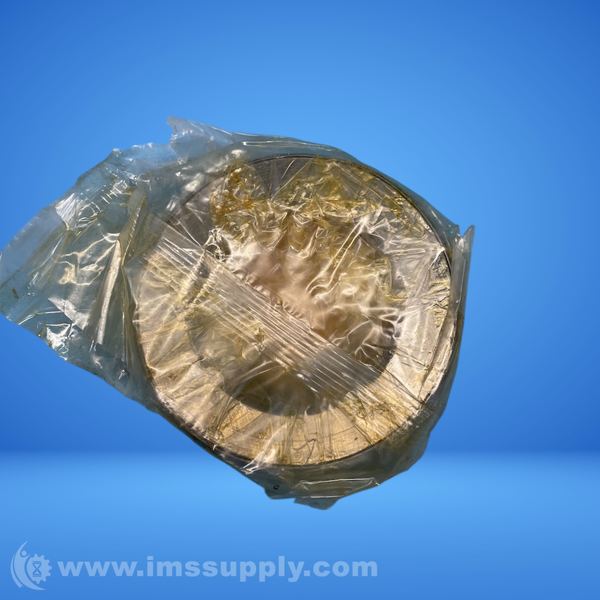

INA D25 Ball Thrust Bearing
Steel ball thrust bearing, single-direction, banded, grooved race, 2 in bore, 3.344 in OD, 0.813 in width.
Specifications
- Thrust Bearing Type: Single-Direction
- Bore Diameter: 2 in
- Outside Diameter: 3.344 in
- Overall Width: 0.813 in
- Separable Or Banded: Banded
- Race Type: Grooved
- Radial Dynamic Load Capacity: 48000 N
- Max Rpm: 2100 rpm
- Bearing Material: Steel
- Series: D Series
- Rows: 1
- Dynamic Load: 10800 lb
- Static Load: 29000 lb
- Maximum Speed: 2100 rpm
- Thrust Direction: Single
- Face Type: Banded Face
- Static Axial Load Capacity: 29000 lbf
- Dynamic Axial Load Capacity: 10800 lbf
- Ball Material: Steel
- Ball Material Grade: 100Cr6
- Washer Material: Steel
- Washer Material Grade: 100Cr6
- Cage Material: Steel
- Cage Material Grade: Sheet Steel
- Lubrication Openings: Lubrication Hole
- Lubricant Material: Oil
- Maximum Temperature: 250 degrees F
- Minimum Temperature: -20 degrees F
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 3 hours and 8 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 8 minutes.
