IPTCI SALF 205 16 G H4 2-BOLT FLANGE BEARING
Quick Overview
Manufactured By: IPTCI
Manufacturer Part Number: SALF 205 16 G H4
IMS Product Code: 2129094
Packaging: Sold Individually
Description:

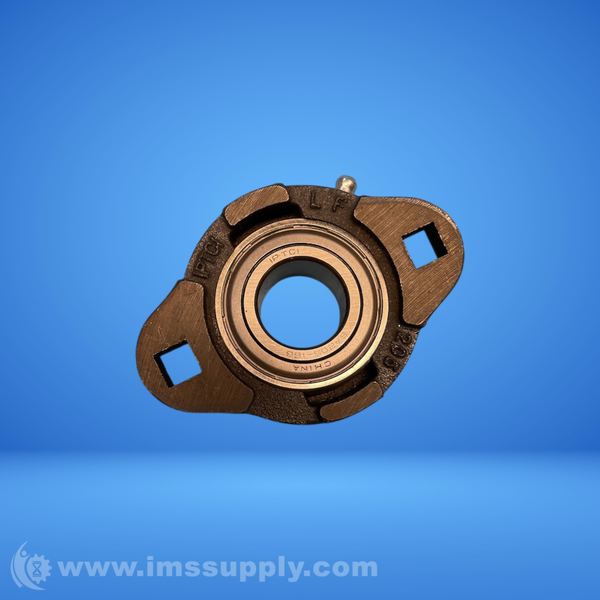

IPTCI SALF 205 16 G H4 2-Bolt Flange Bearing
Eccentric locking collar type. Ductile iron housing Square bolt holes K-type seals Narrow inner race bearing
Specifications
- d - Shaft Dia.: 1 Inch
- A - Dimension: 3 3/4 Inch
- E - Dimension: 2 63/64 Inch
- I - Dimension: 7/16 Inch
- G - Dimension: 7/16 Inch
- L - Dimension: 25/32 Inch
- S - Dimension: 25/64 Inch
- B - Dimension: 2 17/32 Inch
- Z - Dimension: 1 23/64 Inch
- Bi - Dimension: 1.2205 Inch
- N - Dimension: 0.2953 Inch
- K - Dimension: 1.5000 Inch
- Bolt Used: 5/16 Inch
- Bearing No.: SA 205-16G
- Housing No.: LF 205 H4
- Weight: 1 lb
- Seal Type: K-Type
- Bearing Type: 2 Bolt Flange Bearings
- Series: 205
- Housing Material: Ductile Iron
- Locking Mechanism: Eccentric Locking
- Bearing Material: Steel
- Inner Race: Narrow Inner Race
- Seal Details: Single Lip Contact Seal
- Bore / Inner Diameter Inch: 1
- Bore / Inner Diameter MM: 25.4
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 2.984
- Bolt Center to Center MM: 75.794
- Bearing Locking Style: Eccentric Collar
- Rolling Element: Ball Bearing
- Housing Style: 2 Bolt Flange Block
- Expansion / Non-Expansion: Non-expansion
- Length Across Bore Inch: 1.221
- Length Across Bore MM: 31.013

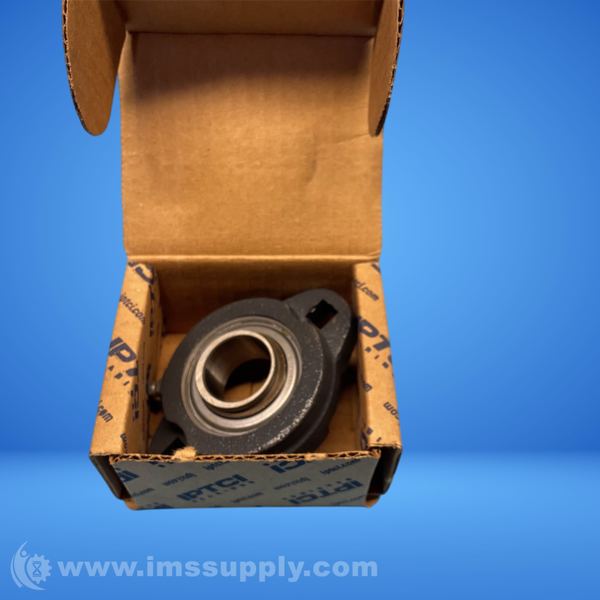

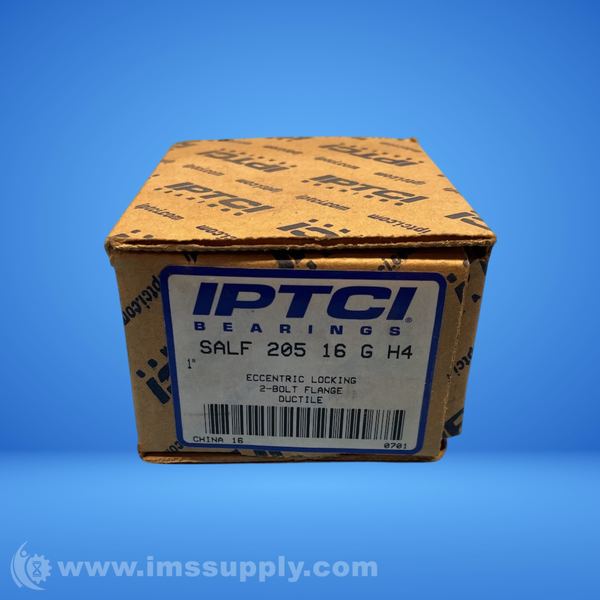

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
