IPTCI SUCTF 205 16 4-BOLT FLANGE BEARING
Quick Overview
Manufactured By: IPTCI
Manufacturer Part Number: SUCTF 205 16
IMS Product Code: 2129099
Packaging: Sold Individually
Description:

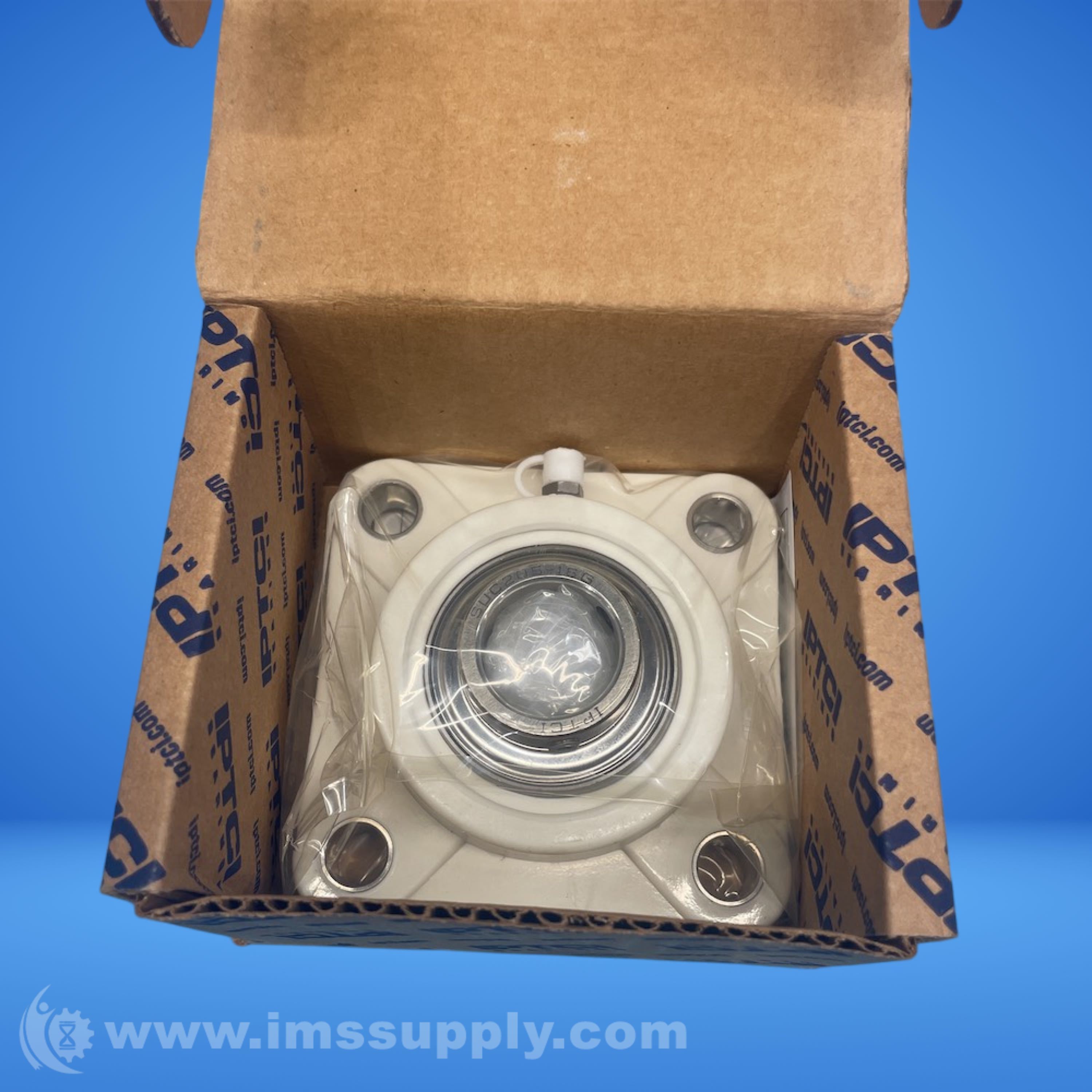

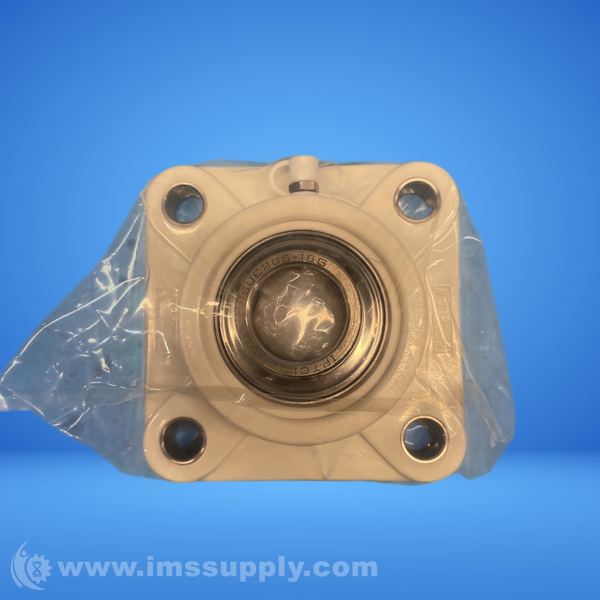

IPTCI SUCTF 205 16 4-Bolt Flange Bearing
Thermoplastic 4-bolt flange bearing with stainless steel insert and set screw lock.
Specifications
- Series: 205
- Type: 4 Bolt Flange Bearings
- Bore Diameter: 1 inch
- Shaft Diameter: 1 Inch
- Housing Material: Thermoplastic
- Bearing Material: Stainless Steel
- Seal Type: B-Type Seal
- Locking Mechanism: Set Screw Locking
- Mounting Configuration: 4-bolt flange
- Weight: 2.1 lb
- Dimension A: 3 3/4 Inch
- Dimension E: 2 3/4 Inch
- Dimension I: 43/64 Inch
- Dimension G: 9/16 Inch
- Dimension L: 1 3/32 Inch
- Dimension S: 7/16 Inch
- Dimension Z: 1 7/16 Inch
- Dimension Bi: 1.3386 Inch
- Dimension N: 0.5630 Inch
- Dimension M: 0.7756 Inch
- Bolt Used: 3/8 Inch

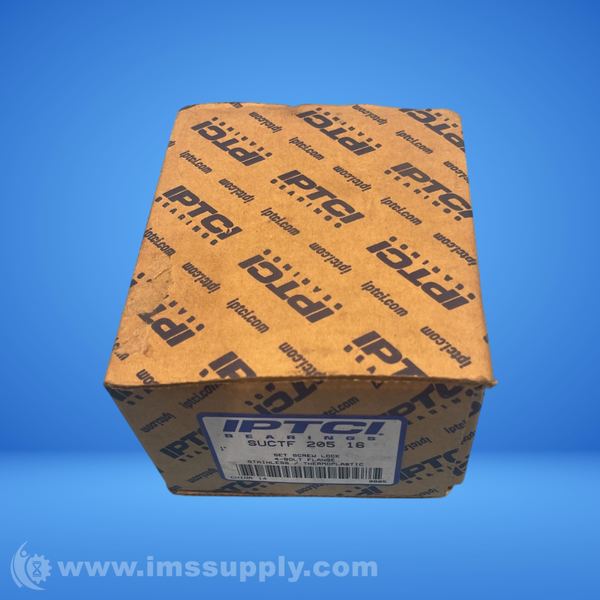

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 13 minutes.
