IPTCI SUCTF 208 24 STAINLESS INSERT 4-BOLT FLANGE BEARING
Quick Overview
Manufactured By: IPTCI
Manufacturer Part Number: SUCTF 208 24
IMS Product Code: 2129111
Packaging: Sold Individually
Description:

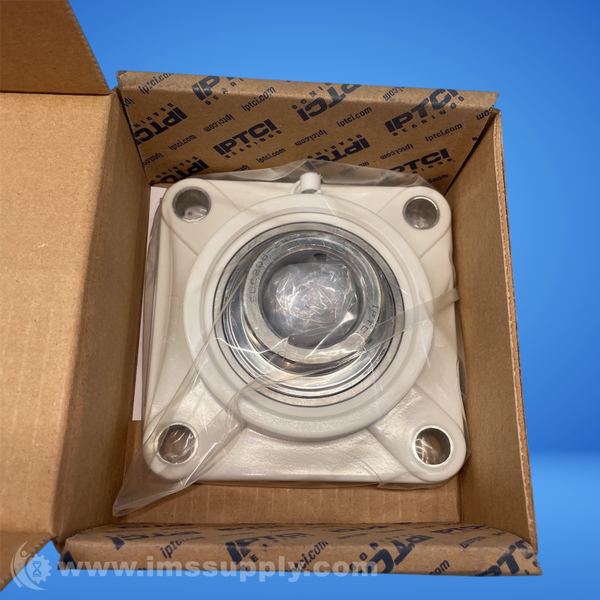

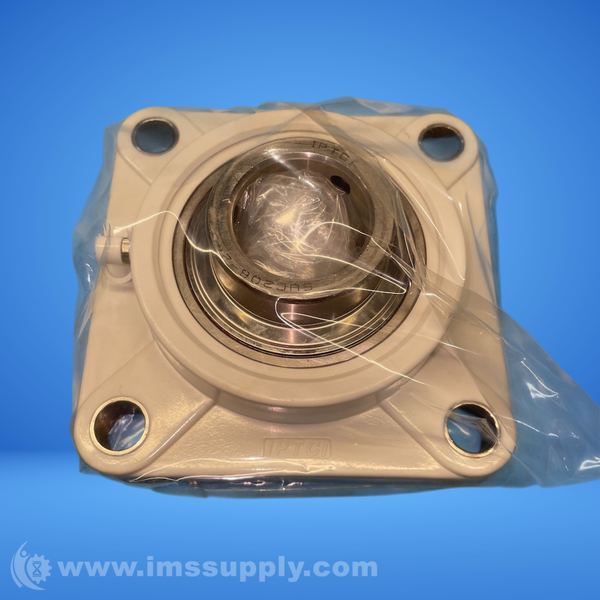

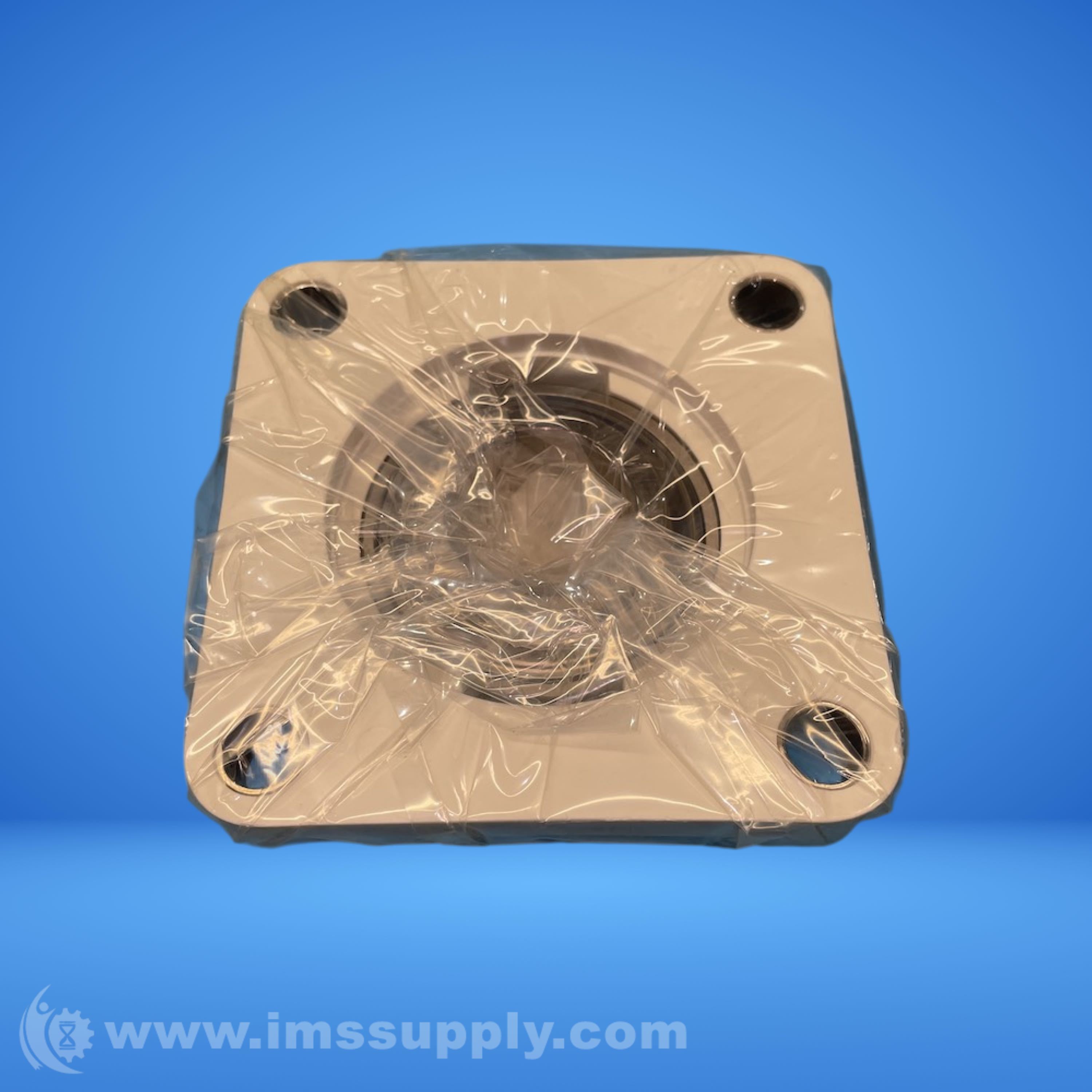

IPTCI SUCTF 208 24 Stainless Insert 4-Bolt Flange Bearing
Stainless steel insert bearing with thermoplastic housing and 4-bolt flange mounting.
Specifications
- Bore Diameter: 1 1/2 Inch
- Housing Material: Thermoplastic
- Bearing Material: Stainless Steel
- Seal Type: B-Type
- Locking Mechanism: Set Screw Locking
- Type: 4 Bolt Flange Bearings
- d - Shaft Dia.: 1 1/2 Inch
- A - Dimension: 5 1/8 Inch
- E - Dimension: 4 Inch
- I - Dimension: 29/32 Inch
- G - Dimension: 21/32 Inch
- L - Dimension: 1 15/32 Inch
- S - Dimension: 35/64 Inch
- Z - Dimension: 2 3/32 Inch
- Bi - Dimension: 1.9370 Inch
- N - Dimension: 0.7480 Inch
- M - Dimension: 1.1890 Inch
- Bolt Used: 1/2 Inch
- Bearing No.: SUC 208-24
- Housing No.: TF 208
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 13 hours and 13 minutes.
