IPTCI SUCTFB 204 12 FLANGE MOUNT BEARING
Quick Overview
Manufactured By: IPTCI
Manufacturer Part Number: SUCTFB 204 12
IMS Product Code: 2129095
Packaging: Sold Individually
Description:

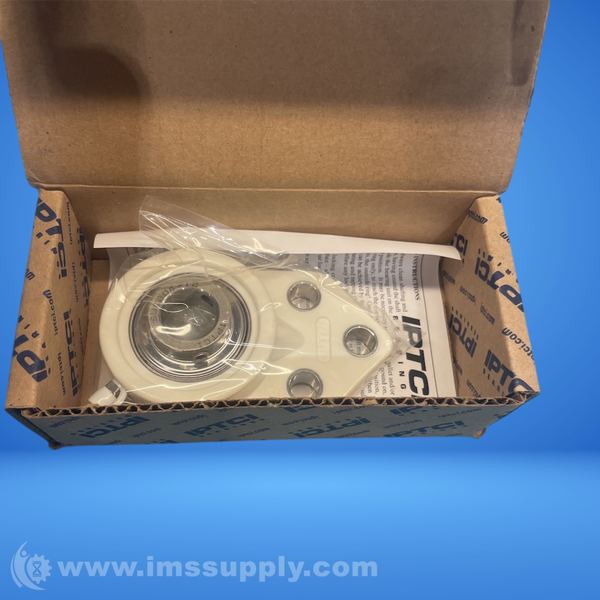

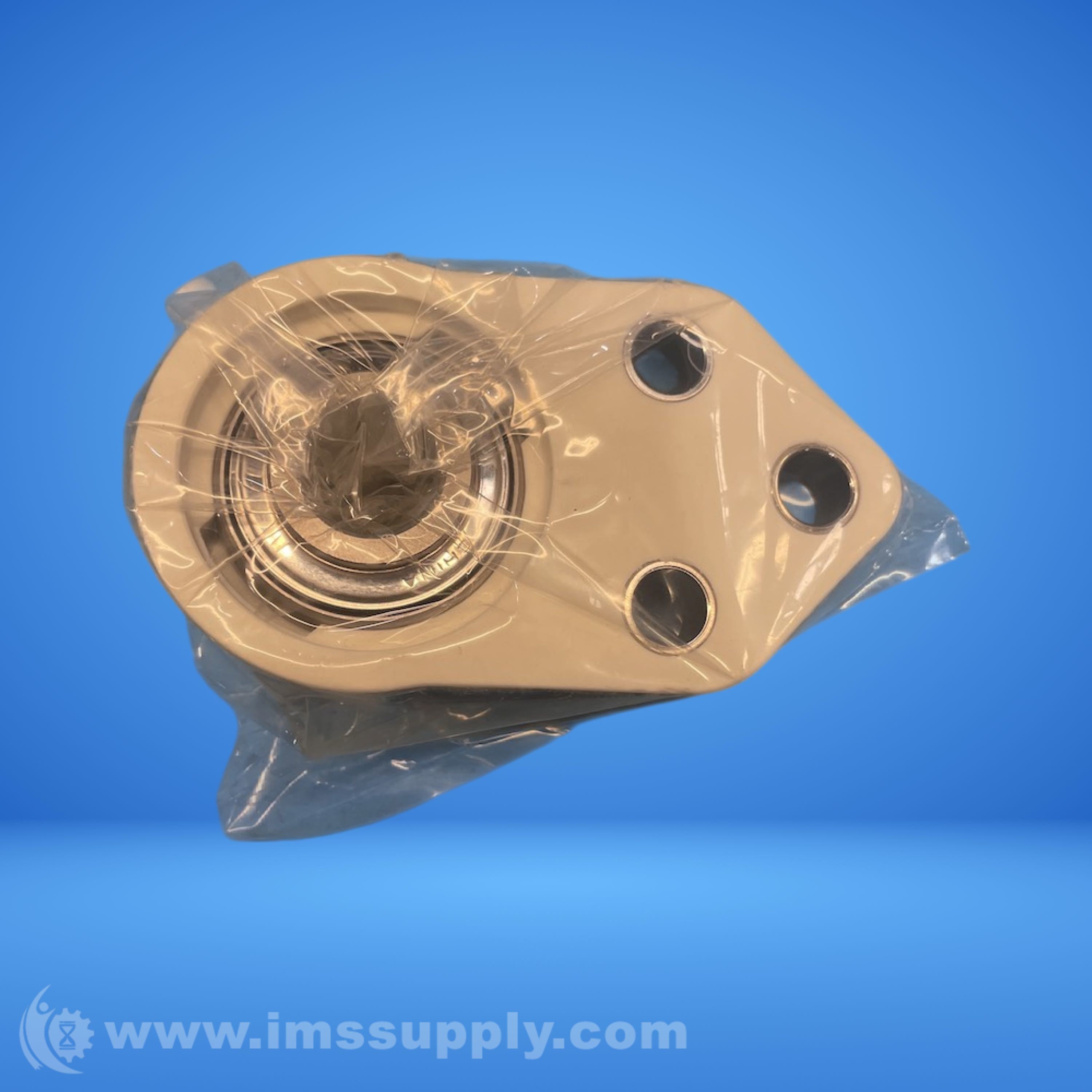

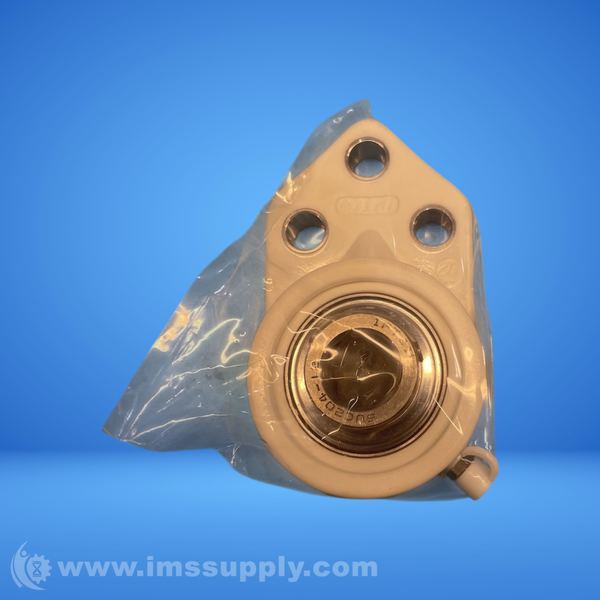

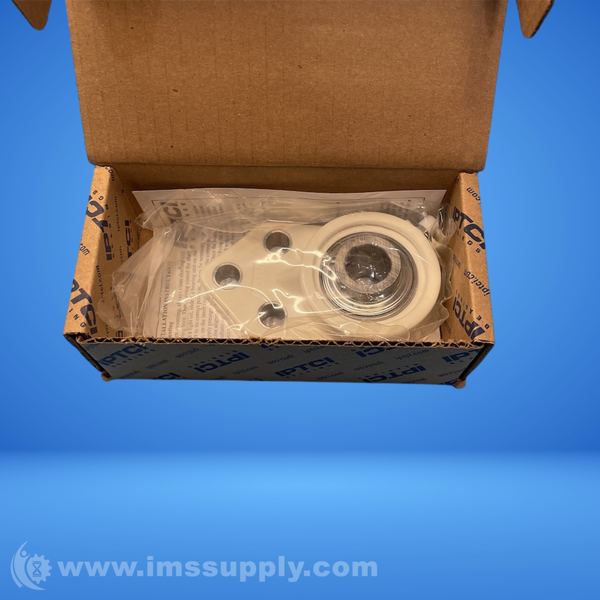

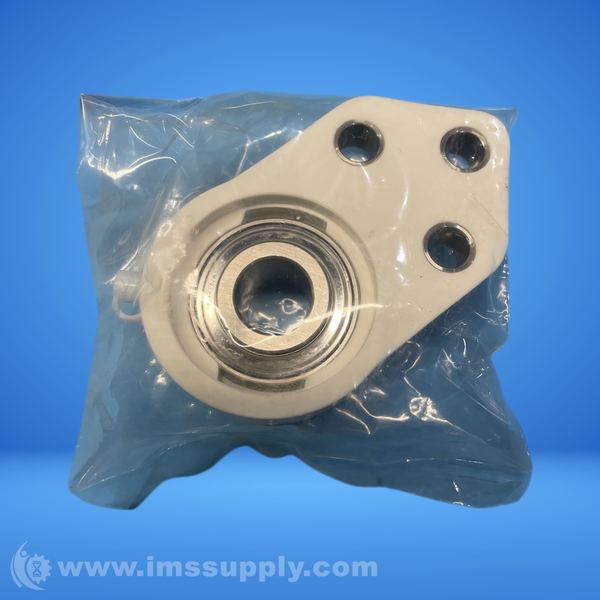

IPTCI SUCTFB 204 12 Flange Mount Bearing
Thermoplastic 3-bolt flange bracket housing with stainless set screw locking insert
Specifications
- d - Shaft Dia.: 3/4 Inch
- W - Dimension: 4 1/4 Inch
- B - Dimension: 2 1/2 Inch
- D - Dimension: 2 7/16 Inch
- L - Dimension: 1 1/32 Inch
- S - Dimension: 25/64 Inch
- G - Dimension: 7/16 Inch
- H - Dimension: 1 11/16 Inch
- J - Dimension: 7/8 Inch
- E - Dimension: 1 1/2 Inch
- I - Dimension: 19/32 Inch
- Z - Dimension: 1 5/16 Inch
- Bi - Dimension: 1.2205 Inch
- N - Dimension: 0.5000 Inch
- M - Dimension: 0.7205 Inch
- Bolt Used: 5/16 Inch
- Bearing No.: SUC 204-12 IP69K
- Housing No.: TFB 204
- Weight: 1.3 lb
- Seal Type: IP69K
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 3/4 in
- Bore Type: Straight
- Type Of Bearing: Ball
- Mounting Type: 3-Bolt Bracket
- Material Construction: Manufactured with high-quality thermoplastic housing and a stainless steel insert
- Mounting Compatibility: 3-bolt flange design
- Set Screw Lock: reliable set screw lock mechanism
- Housing Material: Thermoplastic
- Insert Material: Stainless Steel
- Flange Design: 3-Bolt
- Locking Mechanism: Set Screw
- Bore / Inner Diameter Inch: 0.75
- Bore / Inner Diameter MM: 19.05
- Number of Mounting Holes: 3
- Bolt Center to Center Inch: 0.875
- Bolt Center to Center MM: 22.225
- Bearing Locking Style: Set Screw
- Rolling Element: Ball Bearing
- Housing Style: 3 Bolt Flange Bracket
- Length Across Bore Inch: 1.221
- Length Across Bore MM: 31.013
