IPTCI SUCTFL 204 12 FLANGED BEARING
Quick Overview
Manufactured By: IPTCI
Manufacturer Part Number: SUCTFL 204 12
IMS Product Code: 2129103
Packaging: Sold Individually
Description:

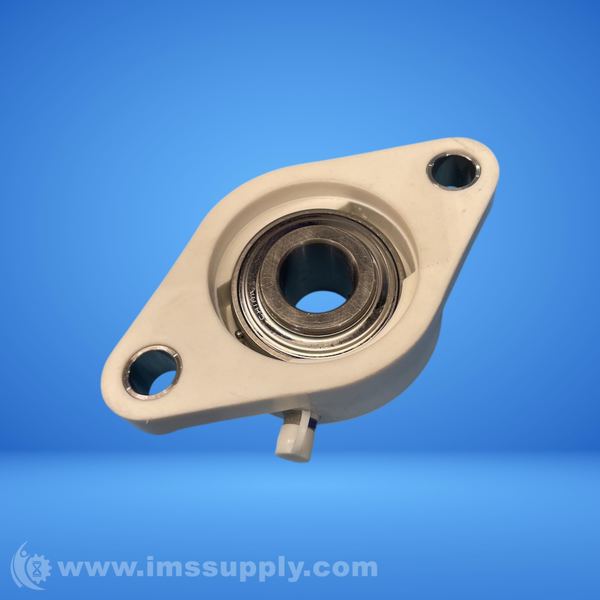

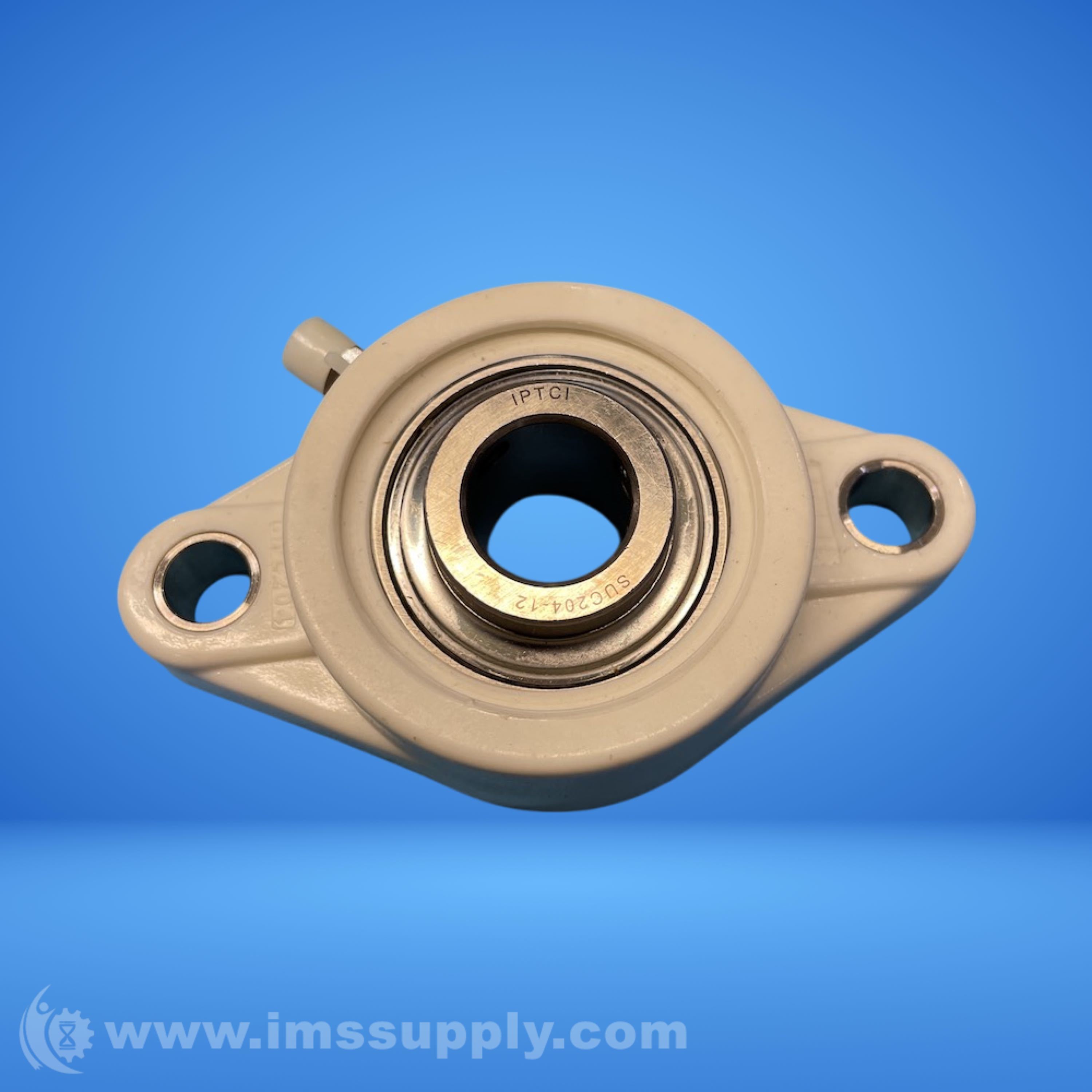

IPTCI SUCTFL 204 12 Flanged Bearing
3/4" Bore 2 Bolt Set Screw Flanged Bearing with Stainless Steel Bearing Insert and Thermoplastic Housing
Specifications
- Bearing Insert Type: Ball
- Bore Diameter: 3/4 in
- Material: Stainless/Thermoplastic
- Type: Flanged Mount Bearing
- d - Shaft Dia.: 3/4 Inch
- A - Dimension: 4 7/16 Inch
- E - Dimension: 3 17/32 Inch
- I - Dimension: 39/64 Inch
- G - Dimension: 7/16 Inch
- L - Dimension: 1 1/32 Inch
- S - Dimension: 7/16 Inch
- B - Dimension: 2 17/32 Inch
- Z - Dimension: 1 21/64 Inch
- Bi - Dimension: 1.2205 Inch
- N - Dimension: 0.5000 Inch
- M - Dimension: 0.7205 Inch
- Bolt Used: 3/8 Inch
- Bearing No.: SUC 204-12
- Housing No.: TFL 204
- Weight: 1.2 lb
- Seal Type: B-Type
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 59 minutes.
