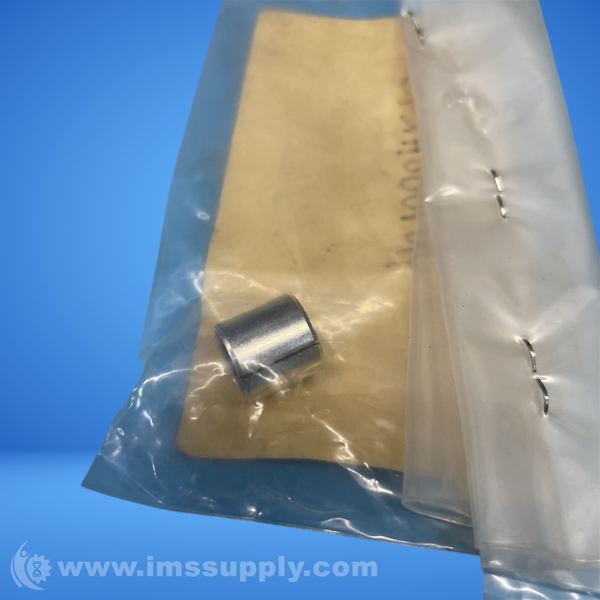

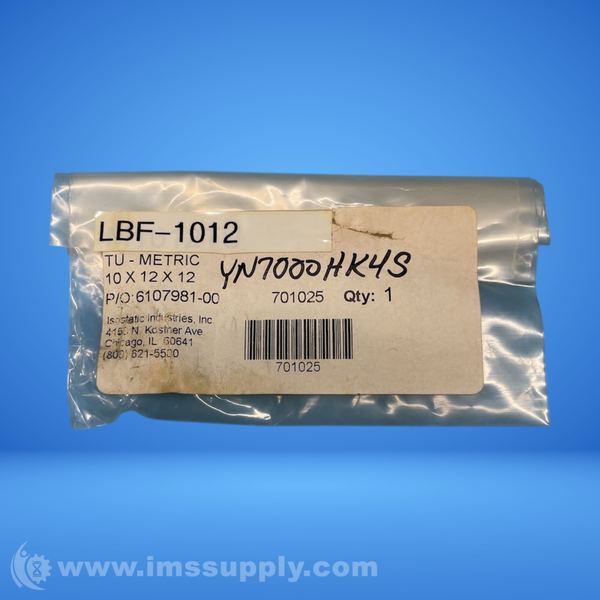

ISOSTATIC INDUSTRIES 701025 STEEL-BACKED PTFE SLEEVE BEARING
Quick Overview
Manufactured By: ISOSTATIC INDUSTRIES
Manufacturer Part Number: 701025
IMS Product Code: 2129284
Packaging: Sold Individually
Description:
Isostatic Industries 701025 Steel-Backed PTFE Sleeve Bearing
Self-lubricating dry sliding bearing
Specifications
- Material: Steel-Backed PTFE Lined
- Nominal Inner Diameter: 10 mm
- Nominal Outer Diameter: 12 mm
- Nominal Length: 12 mm
- Recommended Shaft Size: 9.972 to 9.987 mm
- Recommended Housing Bore: 12.000 to 12.018 mm
- Overall Length Tolerance: ±.25 mm
- Load - P Max Value: 36,250 lb/in²
- Speed - V Max Value: 1,900 ft²/min
- Load at Speed - PV Max Value: 102,000
- Temperature Rating: -328 to 536 deg F
- Maximum Pressure: 36,250 psi
- Maximum Velocity: 1,900 sq-ft/min
- Maximum PV Rating: 102,000 psi/sfm
- Style: Cylindrical Bushing
- Type: Round Bore Sleeve Bearing
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 28 minutes.
