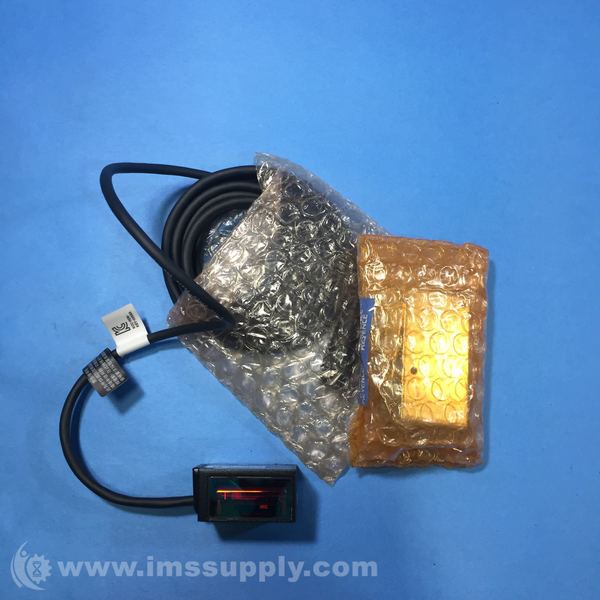

KEYENCE BL-1371 BARCODE READER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: BL-1371
IMS Product Code: 1870675
Packaging: Sold Individually
Description:

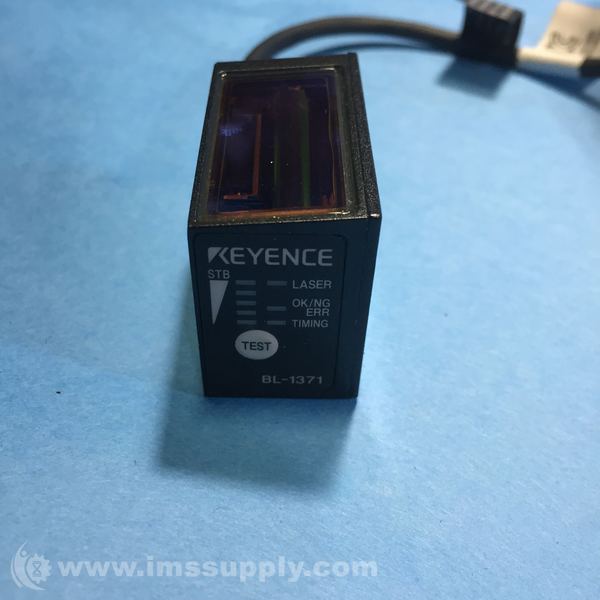

Keyence BL-1371 Barcode Reader
Ultra Small Digital Barcode Reader, Long-distance Type, Front Raster
Specifications
- Type: Barcode Reader
- Reading direction: Front
- Scanning method: Raster
- Light source: Visible semiconductor laser (wavelength: 660 nm)
- Laser class: Class 2 Laser Product (IEC60825-1, FDA (CDRH) Part1040.10*1)
- Supported codes: CODE39, ITF, Industrial2of5, Standard2of5, COOP2of5, CODABAR, CODE128, GS1-128, CODE93, UPC/EAN, GS1 DataBar
- Number of readable digits: 74 digits (148 digits for CODE128 with start character C)
- Readable bar width: 0.15 mm 0.006"
- Reading distance: 160 to 600 mm 6.30" to 23.62"*2 (narrow bar width 1.0 mm 0.04")
- Focal point: 230 mm 9.06"
- Largest readable label width: 404 mm 15.91"*2 (distance: 420 mm 16.54", narrow bar width: 1.0 mm 0.04")
- PCS: 0.4 or more
- Scanning rate: 500 to 1,300 scans/sec. (in units of 100 scans)
- Input terminals: 2 (IN1 and IN2)
- Input format: No-voltage input
- Output terminals: 4 (OUT1, OUT2, OUT3, and OUT4)
- Output: NPN open collector
- Rated load: 24 VDC, 30 mA
- Leakage current (at OFF): 0.1 mA or less
- Residual voltage (at ON): 0.5 V or less
- Communication method: Conforms to EIA RS-232C
- Communication speed: 600, 1,200, 2,400, 4,800, 9,600, 19,200, 31,250, 38,400, 57,600, 115,200 bps
- Synchronization between the transmitter and receiver: Asynchronous
- Data bit length: 7 or 8 bits
- Stop bit length: 1 bit or 2 bits
- Parity check: None, odd, even
- Power voltage: 5 VDC ±5 %
- Voltage consumption: 400 mA or less
- Enclosure rating: IP65
- Ambient light: Sunlight: 10,000 lux, Incandescent lamp: 6,000 lux
- Ambient temperature: 0 to +45 °C 32 to 113 °F
- Relative humidity: 35 to 85 % RH (No condensation)
- Storage temperature: -20 to +60 °C -4 to 140 °F
- Operating environment: No dust or corrosive gases present
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- Weight: Approx. 115 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
