KEYENCE FW-H10R ULTRASONIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FW-H10R
IMS Product Code: 2145661
Packaging: Sold Individually
Description:
Keyence FW-H10R Ultrasonic Sensor
Digital Ultrasonic Sensors
Specifications
- Series: FW
- Type: long range
- Detection range: 150 to 1000 mm
- Response speed: 1000 ms
- Operation indication: orange lamp
- Protection class: IP67
- Dimensions: M18 x P1, length 104 mm
- Weight: 106 g
- Material: Brass-nickel plating, PBT, Polyurethane, Polyamide resin
- Detecting area: 150 to 1000 mm 5.9" to 39.4"
- Temperature characteristics: 0.06% of F.S./degrees C
- Indicator lamp: Operation indicator (orange) x1 (Turns on when the target is within the detecting range.)
- Environmental resistance - Enclosure rating: IP67
- Environmental resistance - Operating temperature range: -25 to +70 degrees C -13 to 158 degrees F (No freezing)
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
- Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y, and Z axis

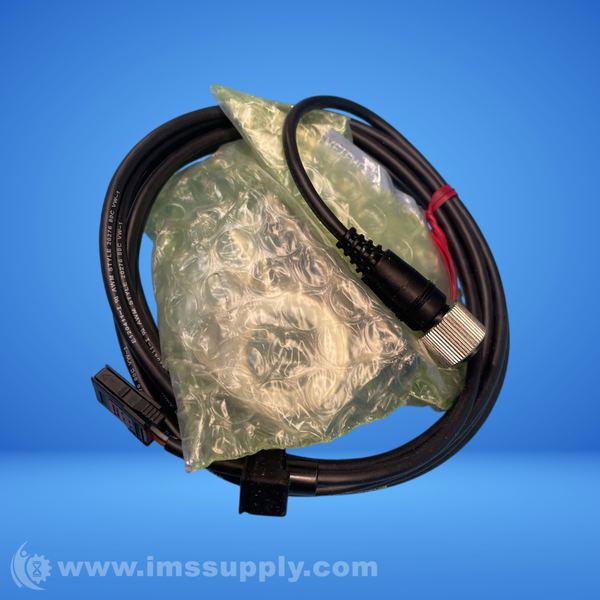

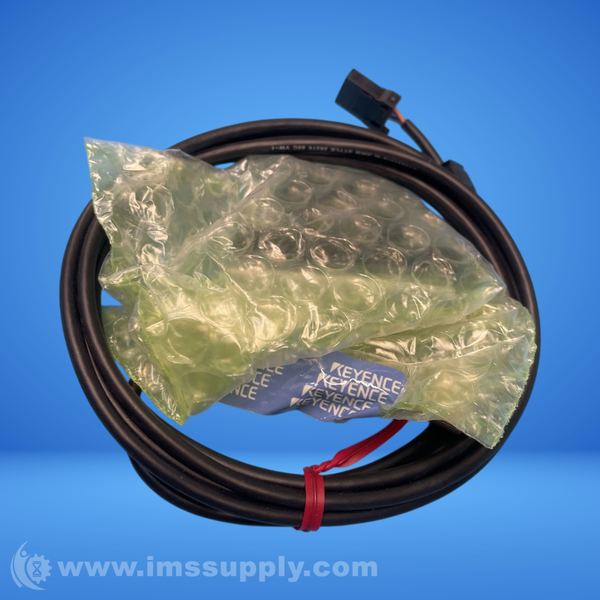

- Accessories: M18 nut: 2, Head cable: 2 m 6.6', Standard Mounting Bracket (FW-B01)
- Voltage: 24 VDC
- Cable Length: 2 M
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 36 minutes.
