KEYENCE HR-100B HANDHELD CODE READER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: HR-100B
IMS Product Code: 1913152
Packaging: Sold Individually
Description:

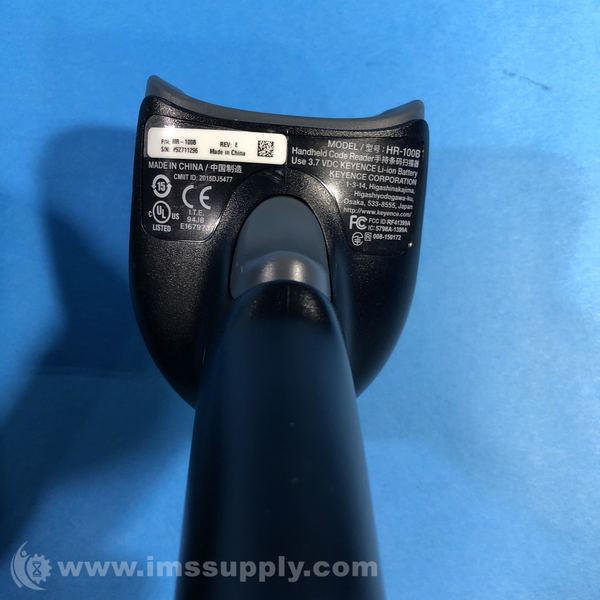

Keyence HR-100B Handheld Code Reader
A compact and lightweight handheld code reader with wireless interface and red LED light source.
Specifications
- Type: Standard
- Interface: Wireless
- Light Source: Red LED
- Wireless Standard: Bluetooth version 2.1
- Supported Symbols (2D): QR, MicroQR, DataMatrix (ECC200), PDF417, MicroPDF417, GS1 Composite (CC-A/BC-C), MaxiCode, AztecCode
- Barcode Types: CODE39, ITF, 2of5 (Industrial 2of5), NW-7 (Codabar), CODE128, GS1-128, GS1 DataBar, CODE93, JAN/EAN/UPC, MSI, Postal, CODE11, 2of5
- Minimum Resolution (2D): 0.169 mm 0.007"
- Barcode Minimum Resolution: 0.127 mm 0.005"
- Reading Distance (2D): 15 to 180 mm 0.59" to 7.09" (Cell size = 0.254 mm 0.01")
- Reading Distance (Barcode): 25 to 115 mm 0.98" to 4.53" (Narrow bar width = 0.127 mm 0.005")
- Ambient Light: Sunlight: 10000 lux, Fluorescent lamp: 2000 lux
- Ambient Temperature: 0 to 50 degrees Celsius 32 to 122 degrees Fahrenheit
- Relative Humidity: 5 to 95 % RH (No condensation)
- Drop Resistance: 1.8 m 5.91 feet 50 times on concrete
- Operating Time: Approximately 14 hours
- Dimensions: 161 x 86 x 71 mm 6.34" x 3.39" x 2.80"
- Weight: Approximately 225 g
New - Missing Box (Special):

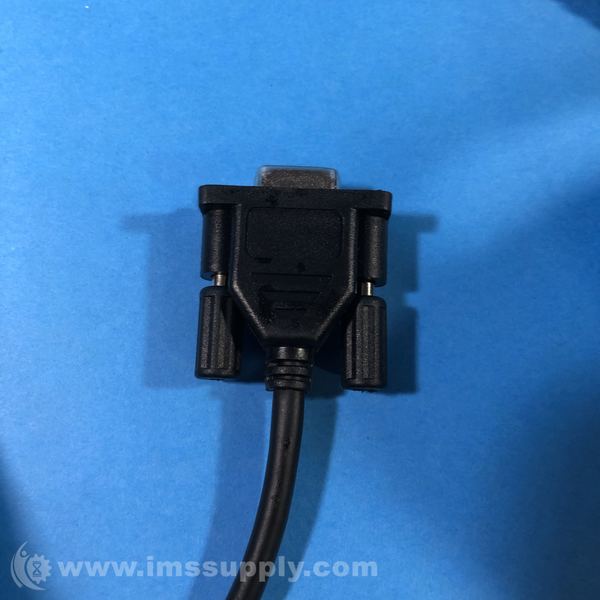

Includes base Model: HR-UC1, and HR-1C3RB cable.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
