KEYENCE SR-751 2D CODE READER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: SR-751
IMS Product Code: 2128490
Packaging: Sold Individually
Description:

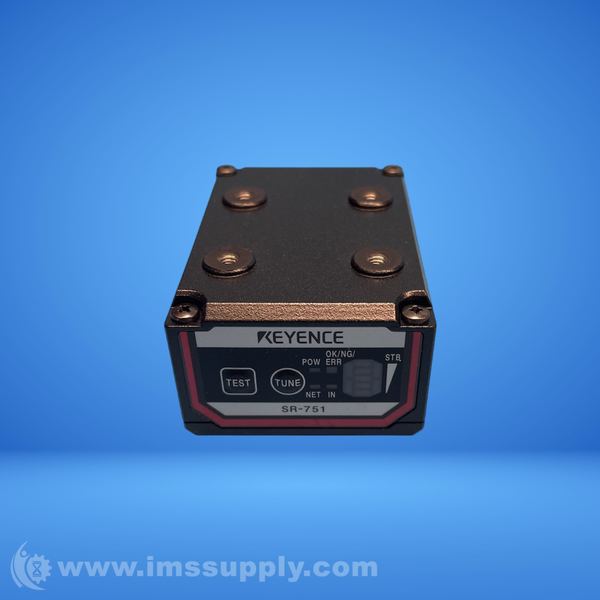

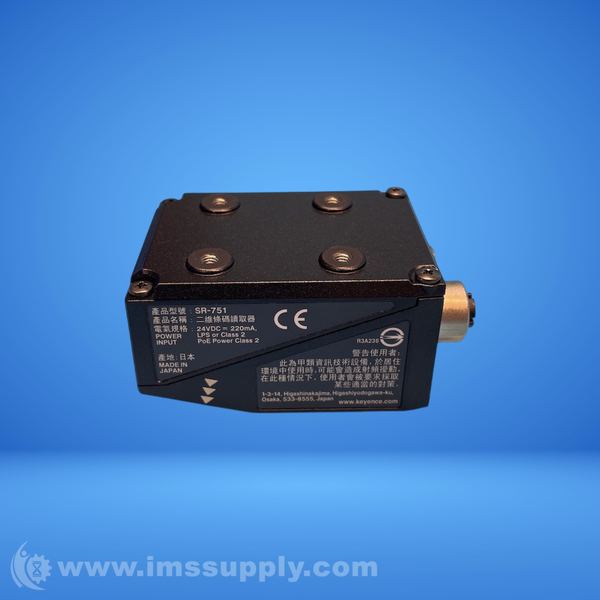

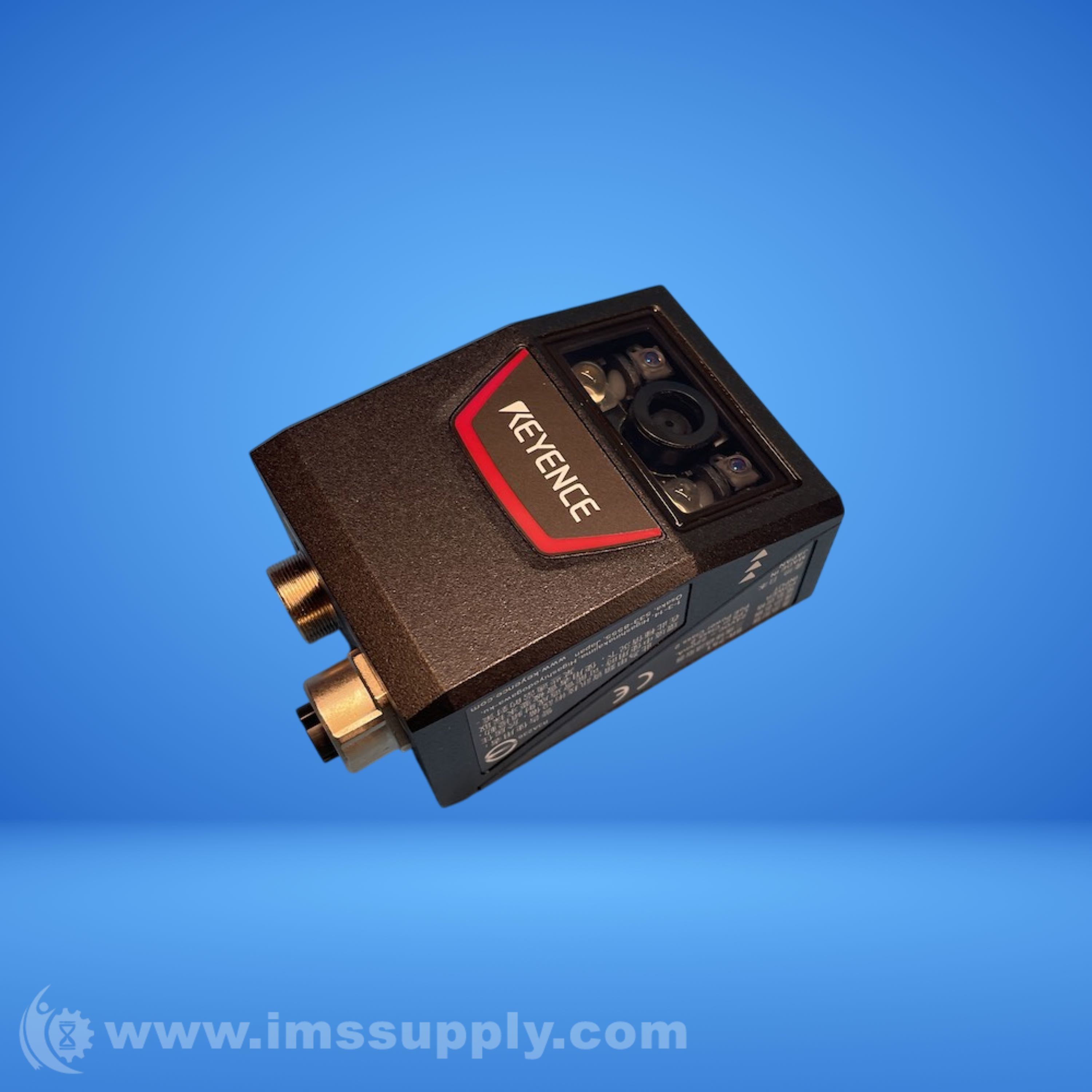

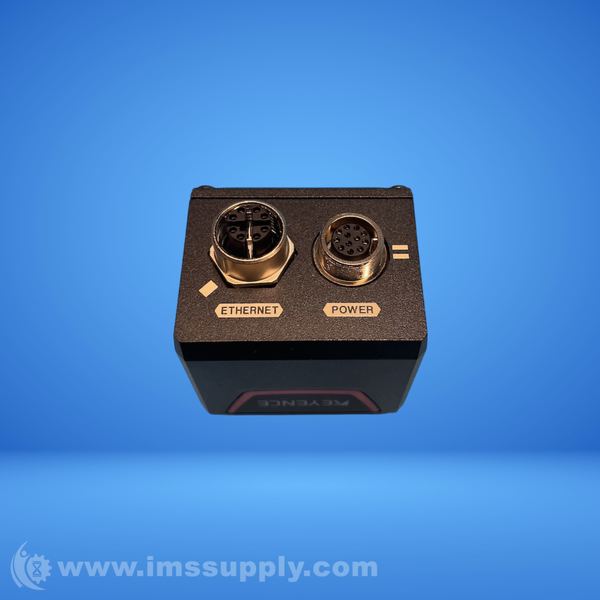

Keyence SR-751 2D Code Reader
Ethernet-compatible 2D code reader, medium-distance type, with CMOS image sensor and red LED light source.
Specifications
- Resolution: 752 x 480
- Voltage: 24 VDC
- Current: 220 mA
- Power: 5.3 W
- Input: PoE Power Class 2
- Weight: 0.35 lbs
- Dimensions: 9 x 7 x 7 in
- Sensor: CMOS Image Sensor
- Light Source: Red LED, Visible semiconductor laser, Wavelength 660 nm
- Focal Distance: 100 mm
- Field of View (at focal distance): 70.6 mm x 45.0 mm
- Control Input: 2 inputs, bidirectional voltage input, 26.4 VDC max
- Control Output: 3 outputs, Photo MOS relay output, 30 VDC max, 50 mA max per output
- Made in Japan

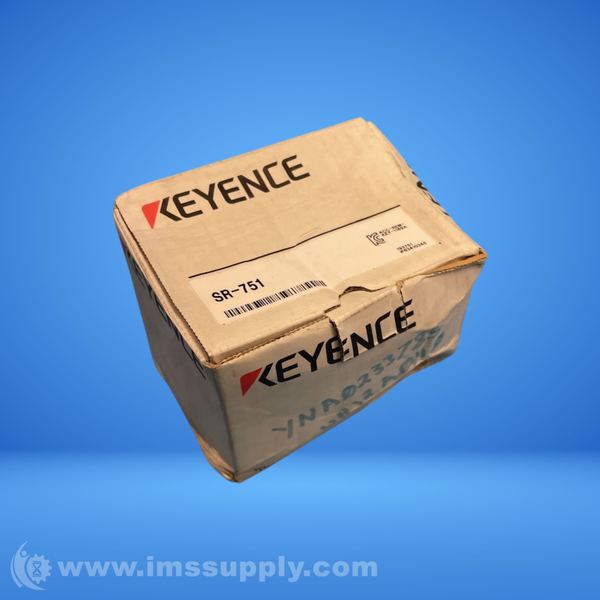

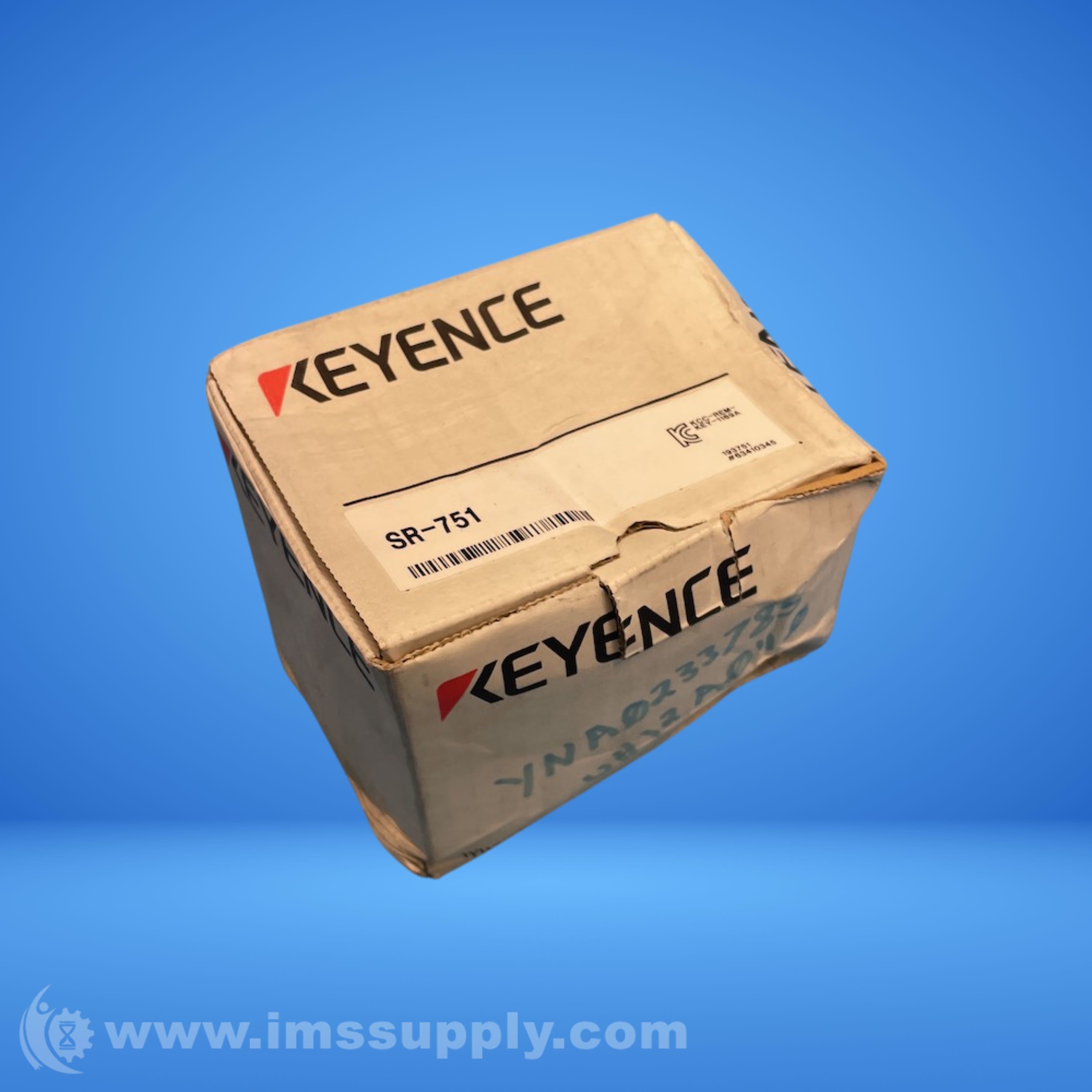

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
