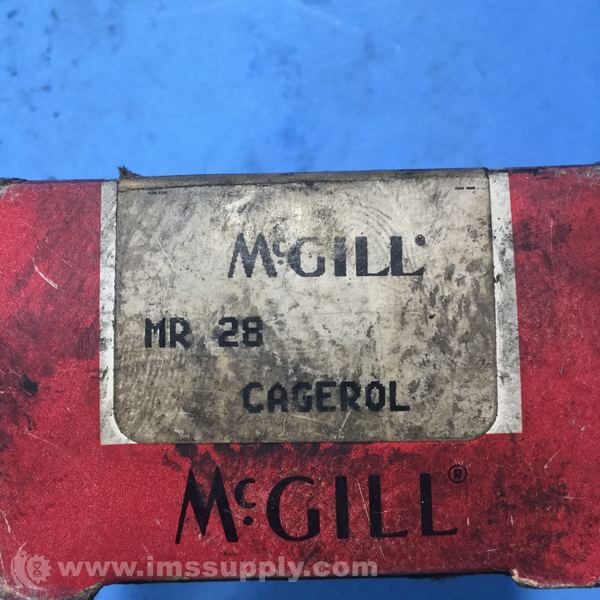

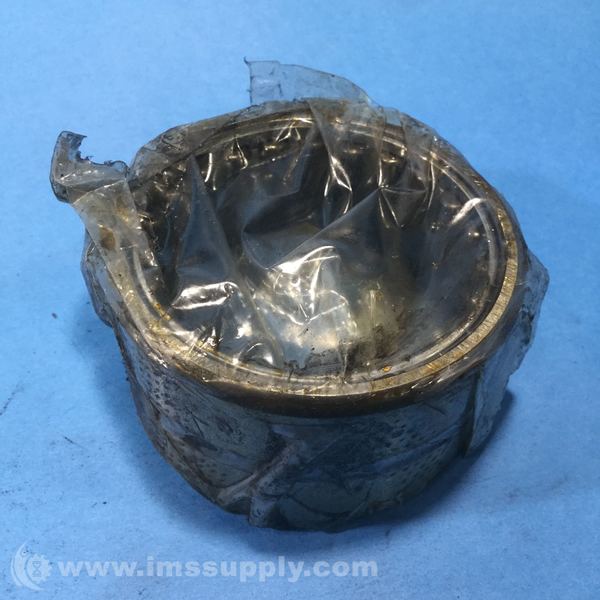

MCGILL MR-28 NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: MCGILL
Manufacturer Part Number: MR-28
IMS Product Code: 957643
Packaging: Sold Individually
Description:
McGill MR-28 Needle Roller Bearing
Machined race needle bearing with retained needle rolling elements and annular lubrication groove.
Specifications
- Bore Diameter: 1.7500 in
- Outside Diameter: 2.3125 in
- Overall Width: 1.2500 in
- Number Of Rows: 1
- Bore Type: Straight
- Bearing Material: 52100 Bearing Steel
- Cage Material: Steel
- Radial Dynamic Load Capacity: 14100 lbf
- Operating Temperature Range: -20 to 250 °F
- Radial Static Load Capacity: 24400 lbf
- Max Rpm: 6850 rpm
- Fillet Radius: 0.0600 in
- Flanges: No Flange
- Series: MR
- Lubrication Hole Type: Lubrication Groove and Hole
- Precision Rating: RBEC-1
- Weight: 0.48 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
