MOELLER B3.1/5-PKZ0 THREE-PHASE BUSBAR LINK
Quick Overview
Manufactured By: MOELLER ELECTRIC
Manufacturer Part Number: B 3.1/5-PKZ0
IMS Product Code: 1903868
Packaging: Sold Individually
Description:

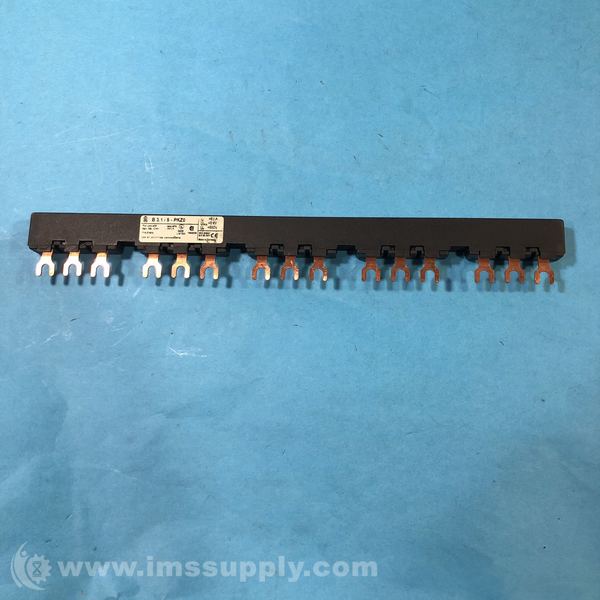

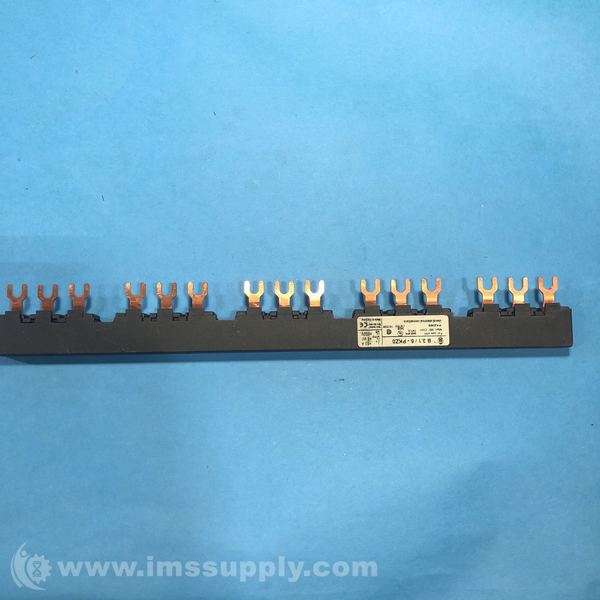

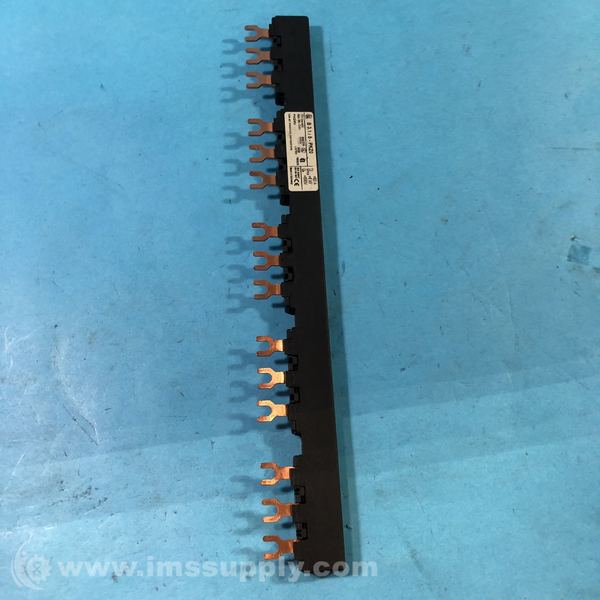

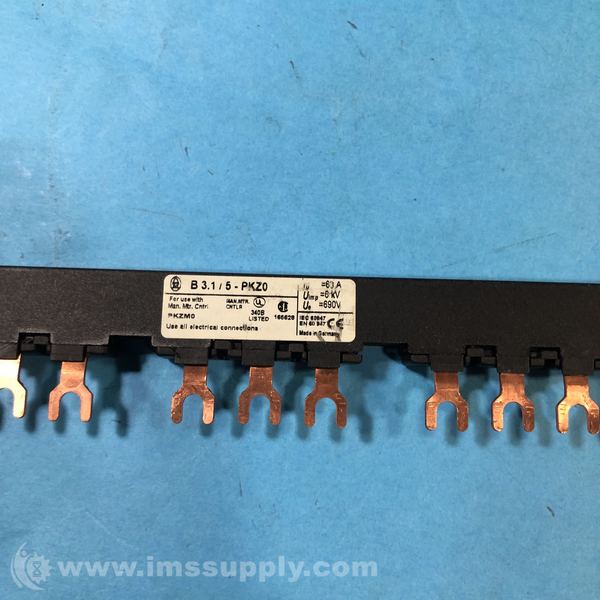

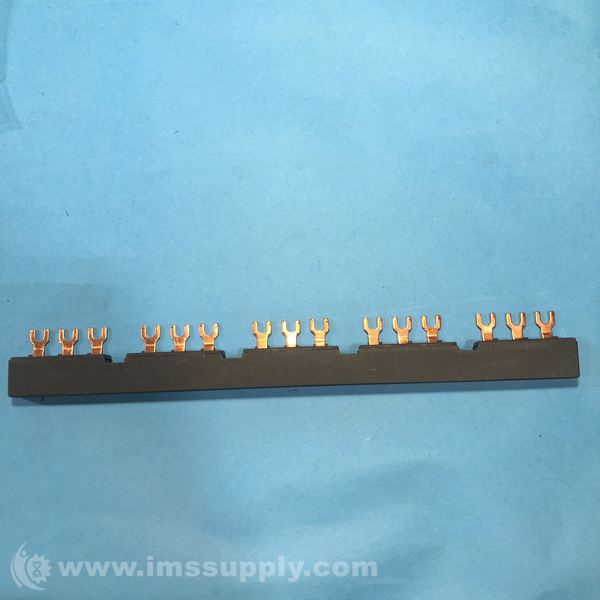

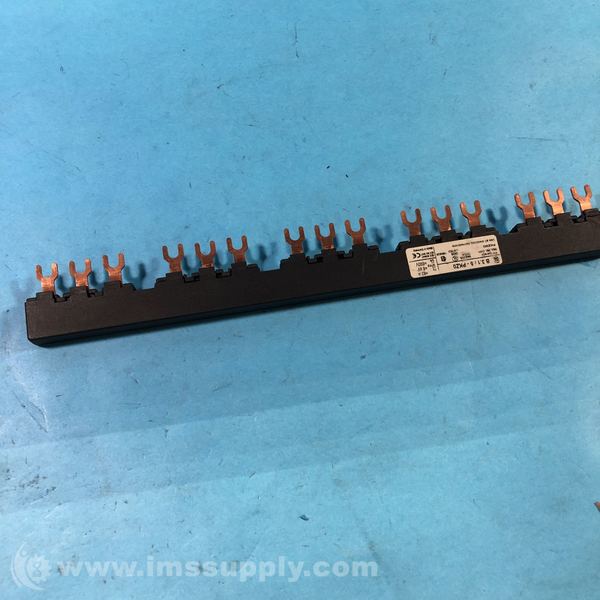

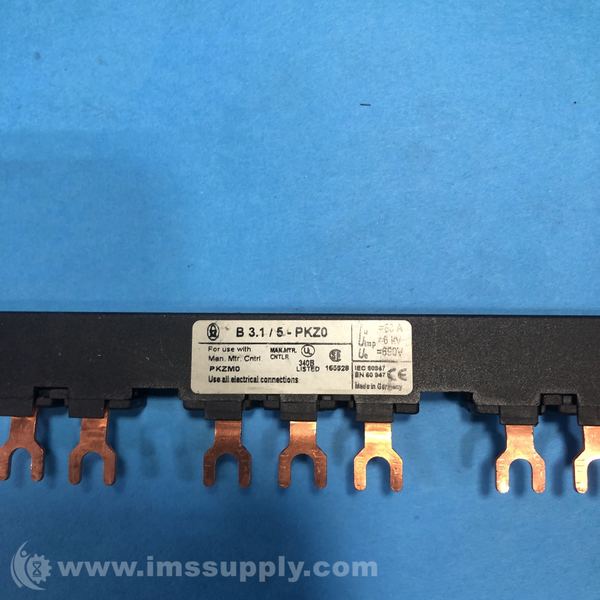

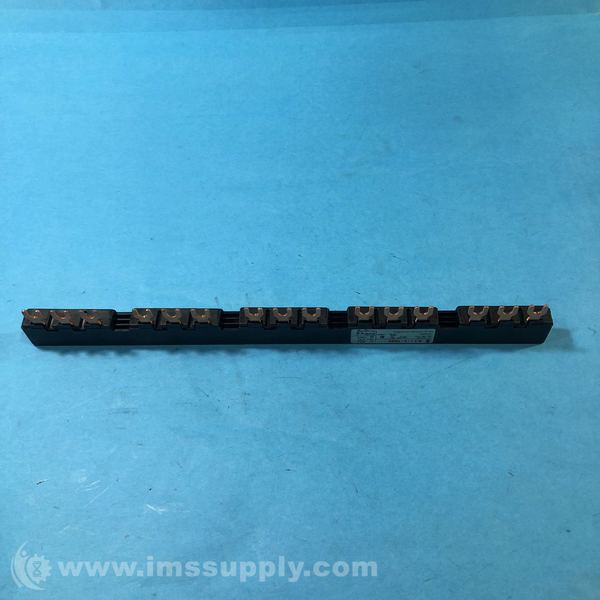

Moeller B3.1/5-PKZ0 Three-Phase Busbar Link
Three-phase busbar link for PKZM0 circuit breakers, rated current 63A, insulated, fork-type connections.
Specifications
- rated current: 63 A
- rated impulse withstand voltage (Uimp): 6000 V AC
- rated operational voltage (Ue) - max: 690 V
- number of phases: 3
- number of poles: Three-pole
- product length: 264 mm
- product height: 34 mm
- product width: 11 mm
- product weight: 0.109 kg
- material: Plastic, Copper
- color: Black
- electric connection type: Fork
- certifications: CE, CSA, UL
- ambient operating temperature - min: -25 degrees C
- ambient operating temperature - max: 55 degrees C
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships on Monday, March 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
(3) Moeller PKZM0-6.3 and (1) Moeller PKZM0-4-T attached
Availability: 1 In Stock
Ships on Monday, March 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
