MOELLER PKZM0-4 MANUAL MOTOR PROTECTOR
Quick Overview
Manufactured By: MOELLER ELECTRIC
Manufacturer Part Number: PKZM0-4
IMS Product Code: 1903676
Packaging: Sold Individually
Description:

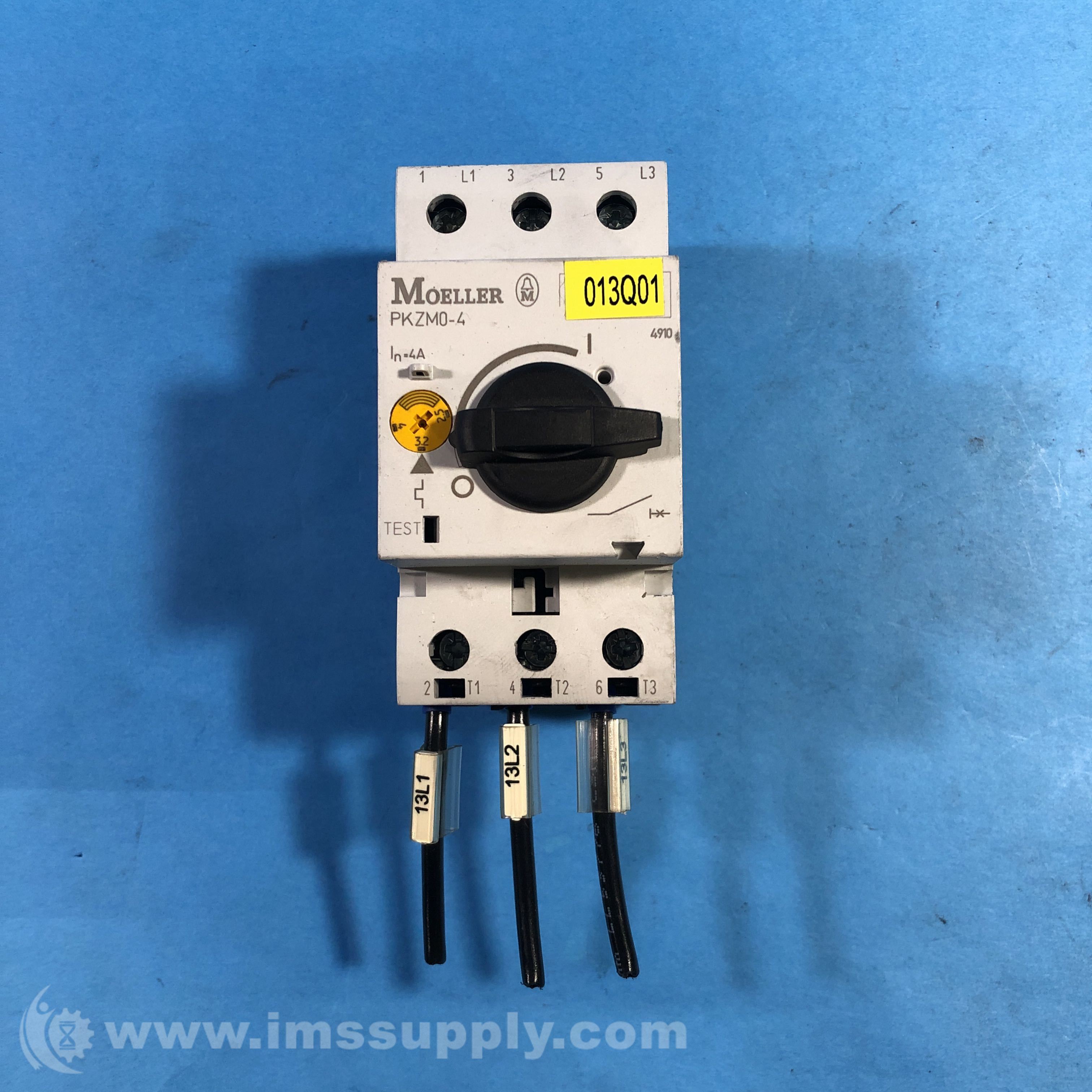

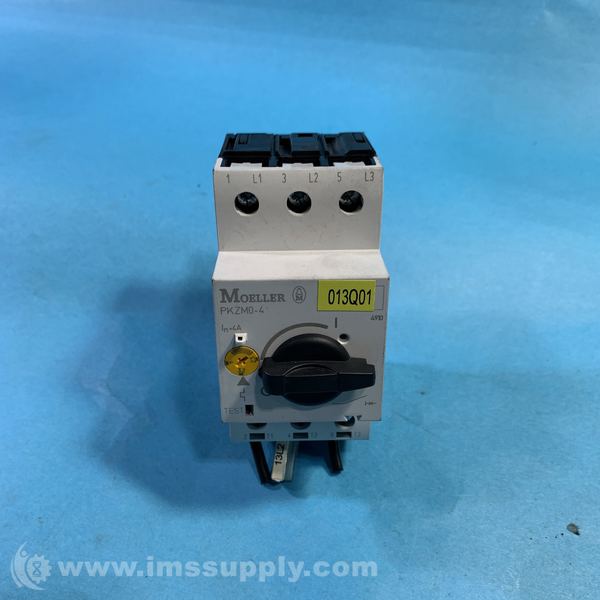

Moeller PKZM0-4 Manual Motor Protector
A 3-phase thermal-magnetic motor protective device with adjustable bimetal trips for overload protection and magnetic trips for short circuit protection. Adjustable from 2.5 to 4 AMPS, Class 10 tripping characteristic, rotary ON/OFF handle, and screw terminals.
Specifications
- AMP Range: 2.5 to 4 AMPS
- Tripping Characteristic: Class 10
- Phase Loss Sensitivity: Yes
- Terminals: Screw
- Type: Circuit Breaker
- Degree of Protection: IP20
- Rated Impulse Withstand Voltage: 690v
- Rated Frequency: 40-60Hz, 50/60 Hz
- Lifespan, Electrical: 100,000 operations
- Lifespan, Mechanical: 100,000 operations
- Short Circuit Release Tolerance: +/- 20%
- Rated Current: 4 A
- Setting Range: 0.25...4 A
- Tripping Characteristic: D
- Number of Poles: 3
- Connection Type: Screw Connection
- Rated Voltage: 690 V AC
- Operating Temperature: -25...+55 degrees C
- Mounting Type: DIN rail
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
