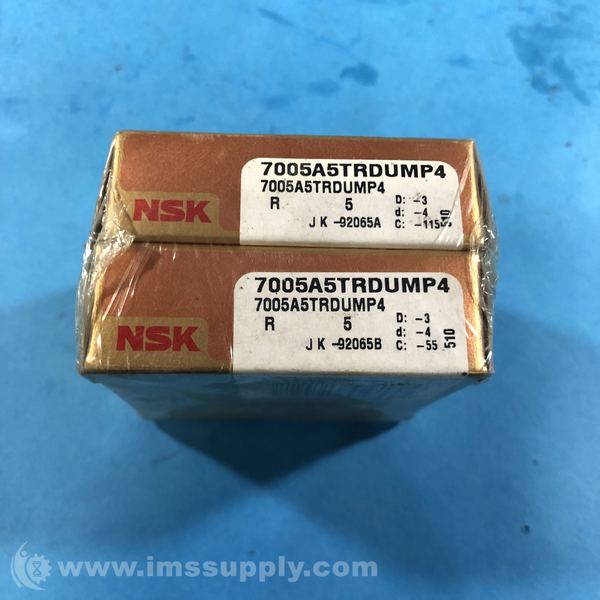

NSK 7005A5TRDUMP4 ANGULAR CONTACT SPINDLE BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 7005A5TRDUMP4
IMS Product Code: 1922036
Packaging: Set of 2
Description:
NSK 7005A5TRDUMP4 Angular Contact Spindle Bearing
NSK Super Precision Angular Contact Spindle Bearings are single-row angular contact ball bearings. They are manufactured in such a way that they can be mounted in any arrangement without suffering performance losses, and can be combined in different sets.
Specifications
- Inside Diameter: 25mm
- Outside Diameter: 47mm
- Width: 12mm
- Seals / Shields: None
- Style: Universal Matched Pair of Bearings
- Contact Angle: 25 Degree contact angle
- Bearing Preload: Medium preload
- d: 25mm
- D: 47mm
- B: 12mm
- rmin: 0.6mm
- r1min: 0.3mm
- Cr: 11.7kN
- Cor: 7.1kN
- Axial load Kn: 5.95 kN
- Effective diameter: 14.4mm
- Max speed in grease: 27800 rpm
- Max speed in oil: 41700 rpm
- da min: 30mm
- Da max: 42mm
- Db max: 44.5mm
- ra max: 0.6mm
- rb max: 0.3mm
- Weight: 0.154kg
- Bearing Number: 7005A5TRDUMP4
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
