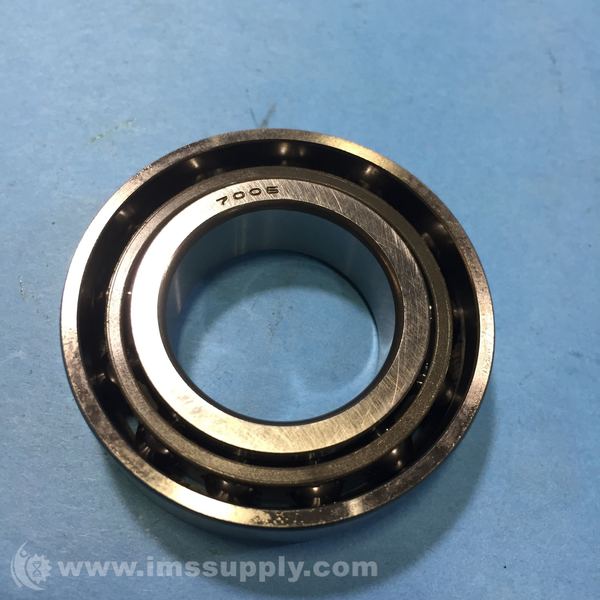

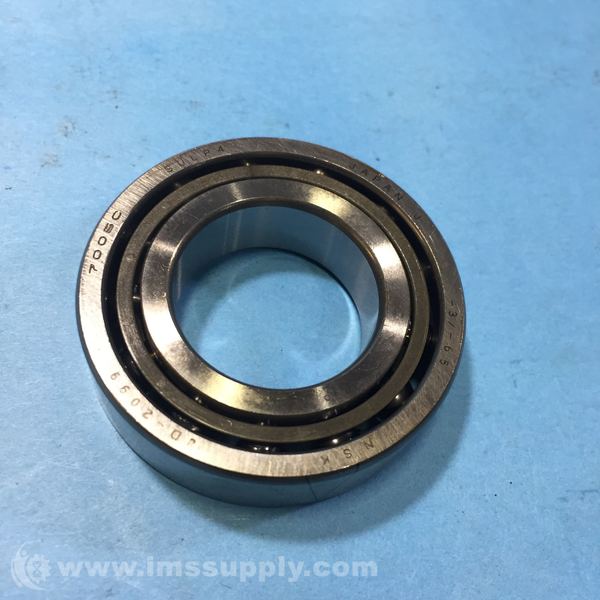

NSK 7005CTYNSULP4 ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 7005CTYNSULP4
IMS Product Code: 1861875
Packaging: Sold Individually
Description:
NSK 7005CTYNSULP4 Angular Contact Ball Bearing
High precision angular contact ball bearing with cylindrical bore and polymer cage.
Specifications
- d: 25 mm
- D: 47 mm
- B: 12 mm
- r(min.): 0.6 mm
- r1(min.): 0.3 mm
- Cr: 14.7 kN
- C0r: 7.40 kN
- Grease Limiting Speed: 32000 min-1
- Oil (Oil-air) Limiting Speed: 38000 min-1
- Contact Angle: 15 degrees
- a: 10.8 mm
- da(min.): 30 mm
- Da(max.): 42 mm
- Db(max.): 44.5 mm
- ra(max.): 0.6 mm
- rb(max.): 0.3 mm
- Pa: 5.20 kN
- f0: 14.7
- Preload EL: 30 N
- Axial Rigidity EL: 24 N/�m
- Measured axial clearance EL: -1 �m
- Mass: 0.078 kg
- Cage material: Polymer
- Bore type: Cylindrical
- Precision class: Class 4 (P4)
- Seal type: Open
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 20 minutes.
