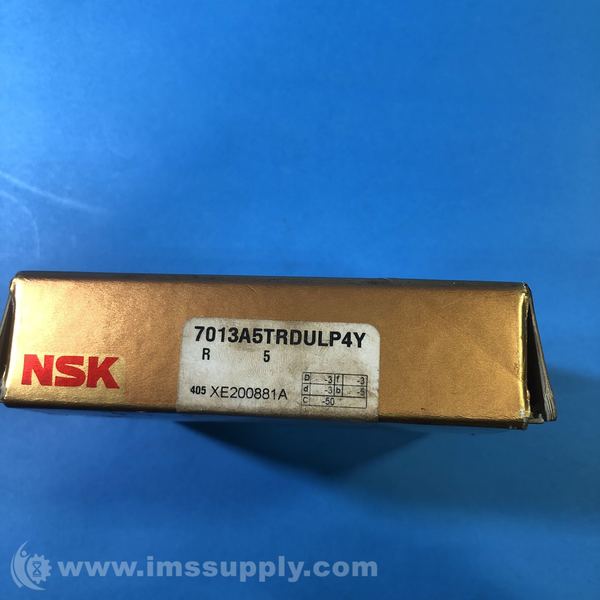

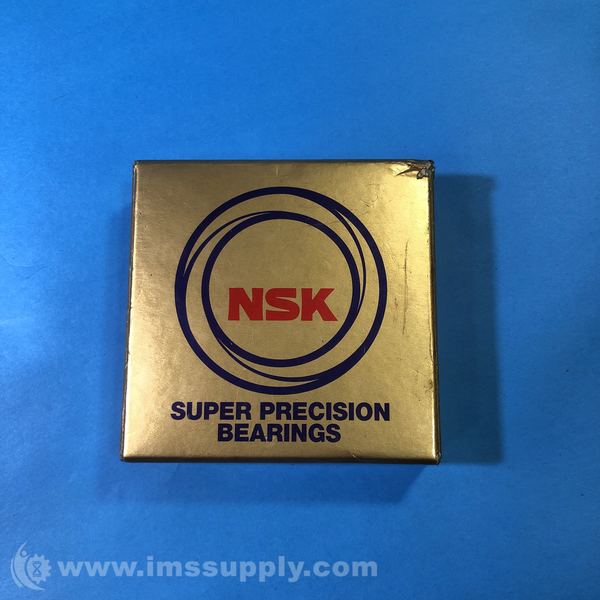

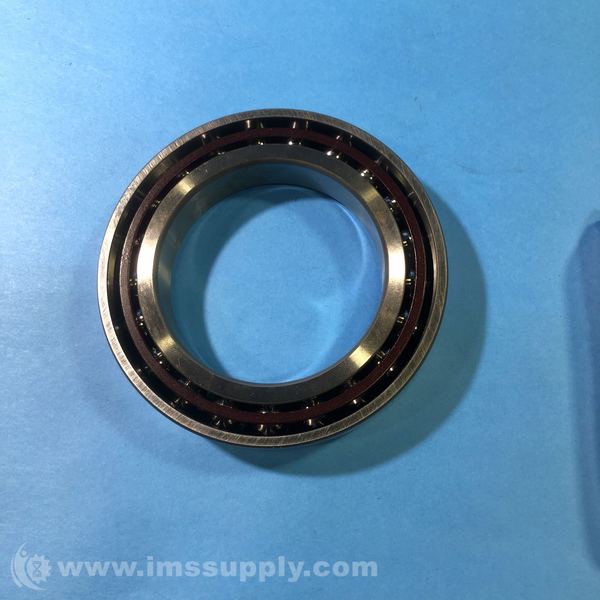

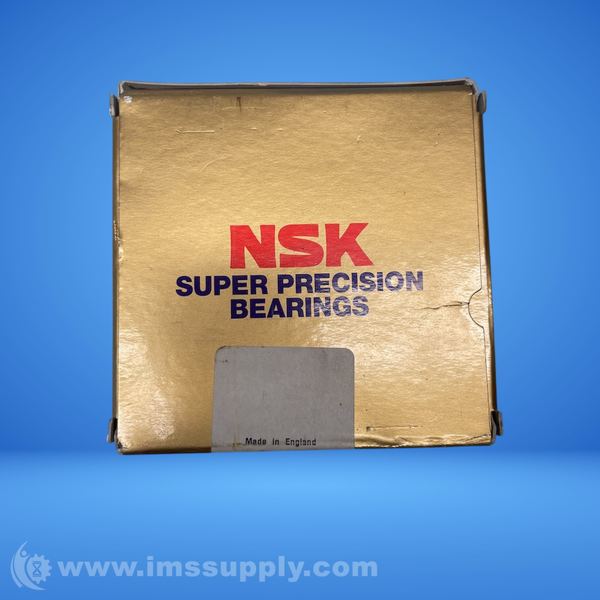

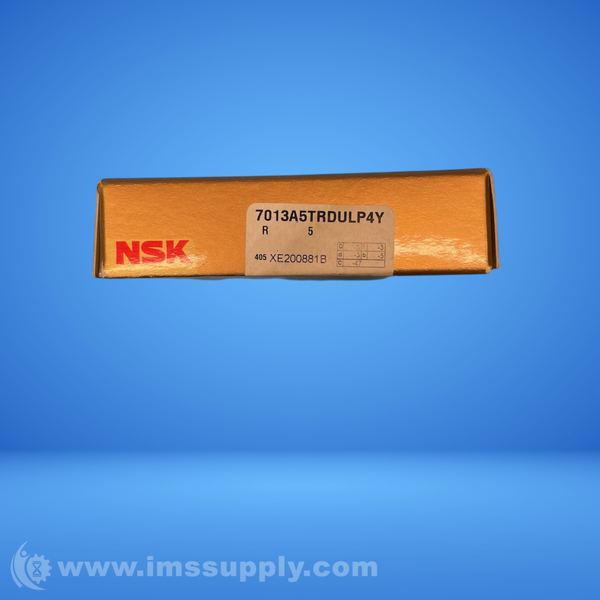

NSK 7013A5TRDULP4Y ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 7013A5TRDULP4Y
IMS Product Code: 1923954
Packaging: Sold Individually
Description:
NSK 7013A5TRDULP4Y Angular Contact Bearing
Duplex universal angular contact spindle bearing with ABEC-7 precision rating, 65mm bore diameter, 100mm outside diameter, and 36mm overall width.
Specifications
- Bore Diameter: 65 mm
- Outside Diameter: 100 mm
- Overall Width: 36 mm
- Contact Angle: 25 degrees
- Precision Rating: ABEC7, P4
- Cage Material: Polyamide Cage
- Duplex Type: Duplex Universal
- Closure Type: Open
- Finish/Coating: Uncoated
- Internal Clearance: C0
- Fillet Radius: 1.1 mm
- Radial Dynamic Load Capacity: 57000 N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 1 hours and 7 minutes.
