NSK 7936A5TRSULP4 ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 7936A5TRSULP4
IMS Product Code: 1916250
Packaging: Sold Individually
Description:

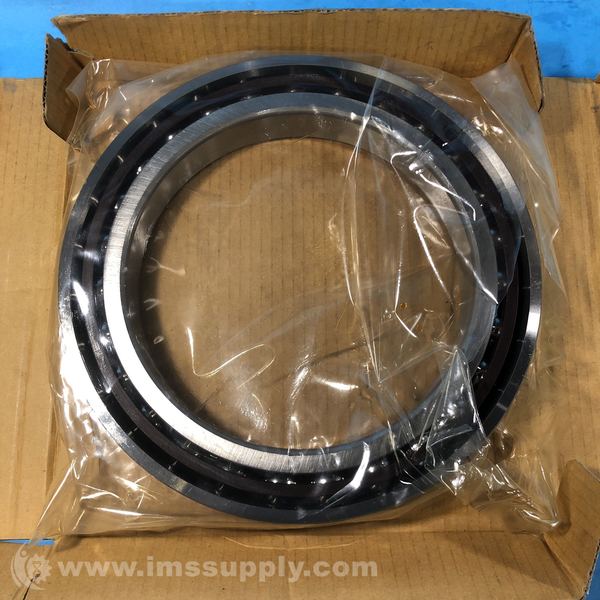

NSK 7936A5TRSULP4 Angular Contact Ball Bearing
Super precision angular contact ball bearing, 180 mm bore diameter, 250 mm outside diameter, 33 mm width, 25 degree contact angle.
Specifications
- d: 180 mm
- D: 250 mm
- B: 33 mm
- r(min.): 2 mm
- r1(min.): 1 mm
- Cr: 172 kN
- C0r: 174 kN
- Grease: 4200 min-1
- Oil (Oil-air): 6600 min-1
- A5: 25°
- a: 66.6 mm
- da(min.): 190 mm
- Da(max.): 240 mm
- Db(max.): 244 mm
- ra(max.): 2 mm
- rb(max.): 1 mm
- Pa: 128 kN
- Preload: EL: 990N, L: 2017N, M: 4440N, H: 8876N
- Axial Rigidity: EL: 397N/µm, L: 514N/µm, M: 694N/µm, H: 917N/µm
- Measured axial clearance: EL: -10µm, L: -19µm, M: -35µm, H: -57µm
- Recommended Grease Quantities: 24 g/brg
- Mass: 4.94 kg
- Accuracy: P4
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
