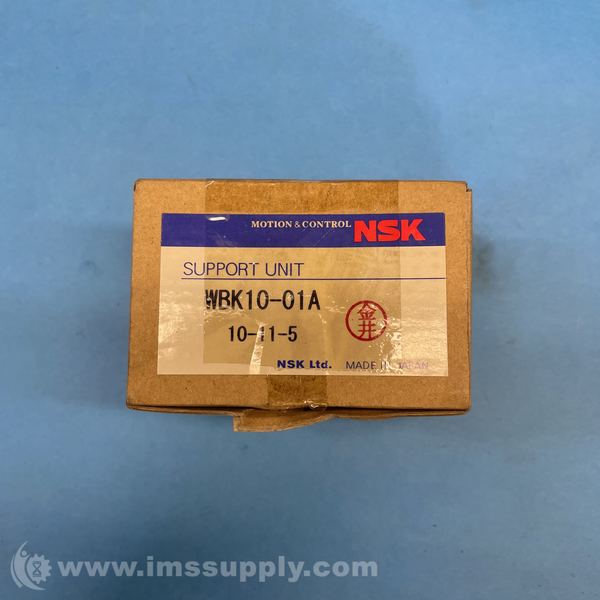

NSK WBK10-01A BALL SCREW SUPPORT UNIT
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: WBK10-01A
IMS Product Code: 2134676
Packaging: Sold Individually
Description:
NSK WBK10-01A Ball Screw Support Unit
Square ball screw support unit with 10 mm bearing bore, 70 mm width, and 43 mm height.
Specifications
- Nominal Screw Diameter: 10 mm
- Overall Height: 24 MM
- Overall Length: 70 MM
- Measurement Standard: Metric
- Overall Width: 70 MM
- Type: Square
- Width: 70 mm
- Height: 43 mm
- Bearing Bore: 10 mm
- D1: 10.000
- A: 70.000
- B: 43.000
- C: 25.000
- D: 35.000
- E: 36.000
- F: 17.000
- J: 30.000
- K: 5.500
- L: 24.000
- N: 6.000
- P: 0.000
- Q: 0.000
- W: 52.000
- X: 9.000
- Y: 14.000
- Z: 11.000
- M: 10.000
- Load Rating: 6600N
- Dimensions: 70mm x 43mm x 30mm
- Weight: 1.100 lb

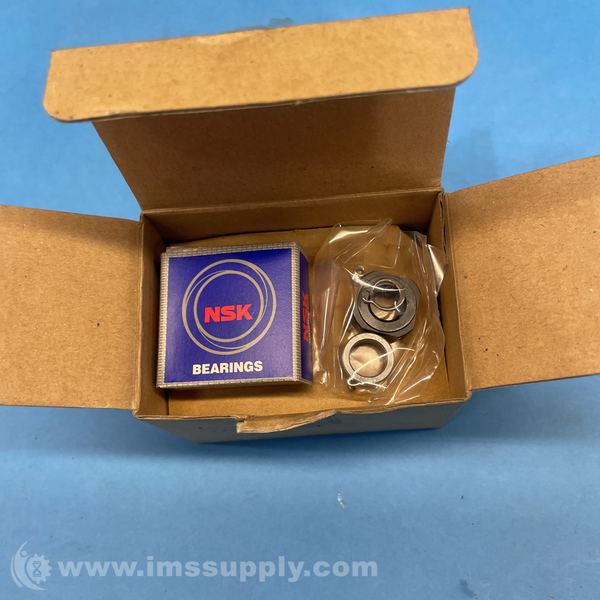

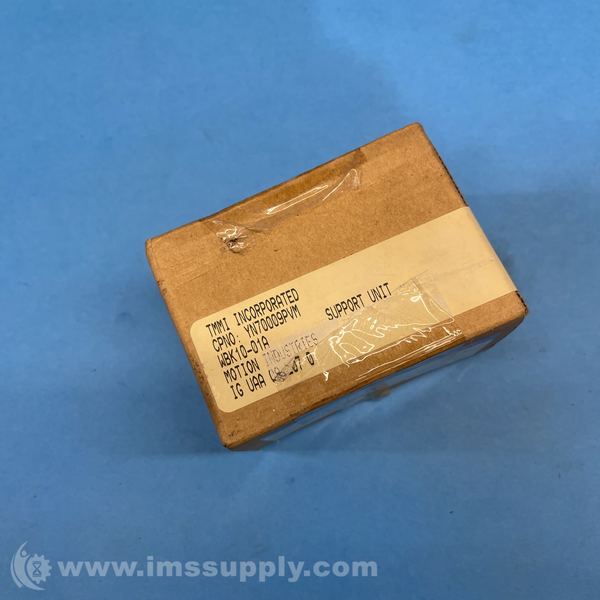

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
