NSK WBK20-01 BALL SCREW SUPPORT
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: WBK20-01
IMS Product Code: 2139270
Packaging: Sold Individually
Description:

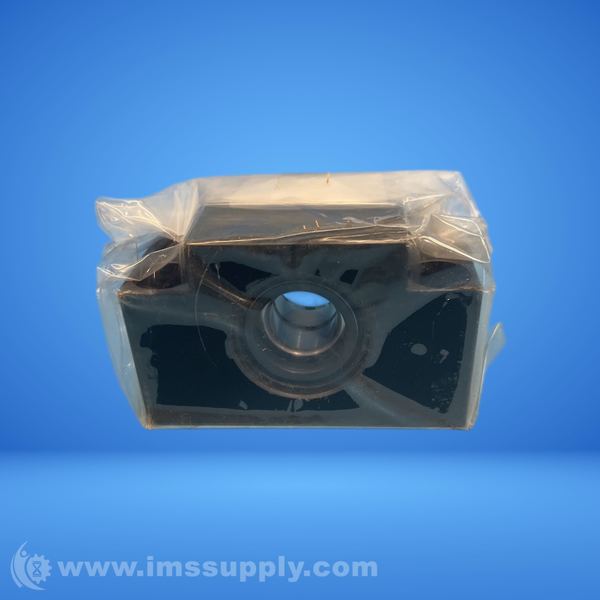

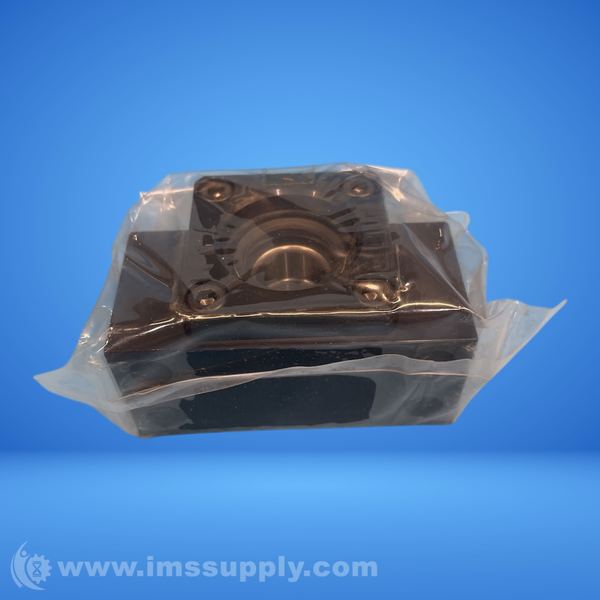

NSK WBK20-01 Ball Screw Support
Precision-engineered component for linear motion systems, 20 mm bore, 58 mm height, 95 mm width.
Specifications
- Nominal Screw Diameter: 20 mm
- Overall Height: 52 MM
- Overall Length: 95 MM
- Measurement Standard: Metric
- Overall Width: 95 MM
- Type: Square
- Width: 95 mm
- Height: 58 mm
- Bearing Bore: 20 mm
- D1: 20.000
- A: 95.000
- B: 58.000
- C: 30.000
- D: 45.000
- E: 56.000
- F: 30.000
- J: 52.000
- K: 10.000
- L: 42.000
- N: 10.000
- P: 22.000
- Q: 10.000
- W: 75.000
- X: 11.000
- Y: 17.000
- Z: 15.000
- M: 20.000
- d: 20
- Weight: 1.2 kg

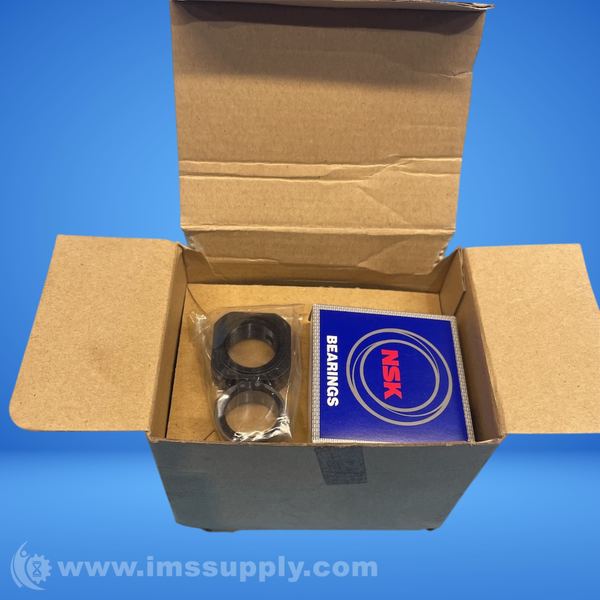

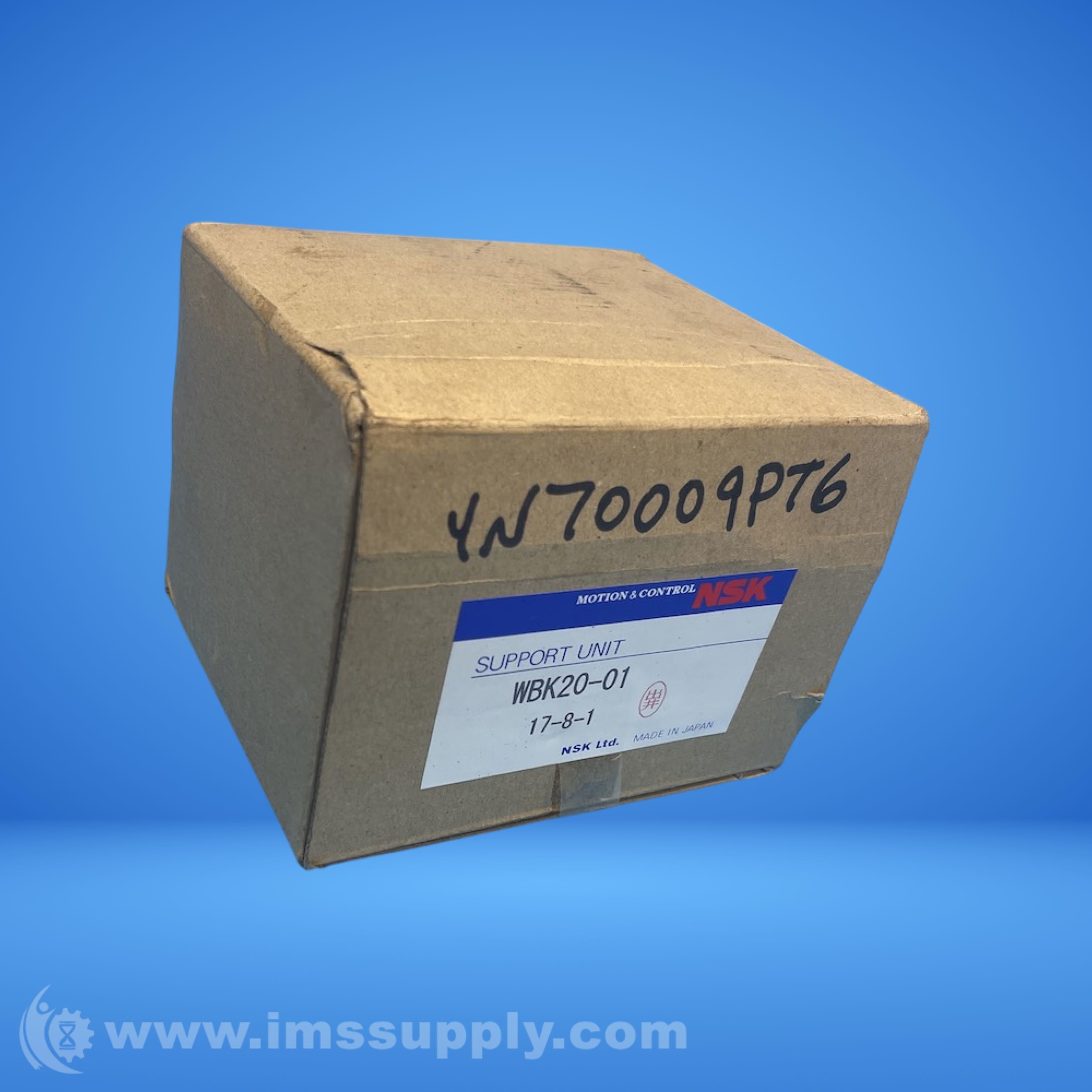

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 20, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
