NTN BEARING AELPP204-012 PILLOW BLOCK UNIT
Quick Overview
Manufactured By: NTN BEARING
Manufacturer Part Number: AELPP204-012
IMS Product Code: 1866110
Packaging: Sold Individually
Description:

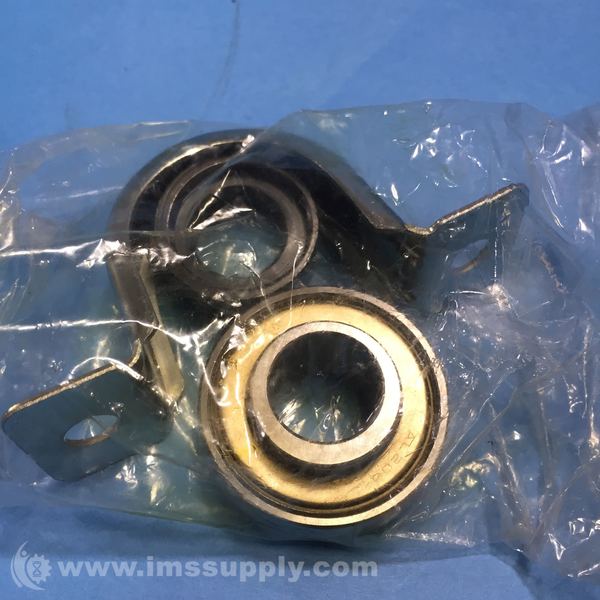

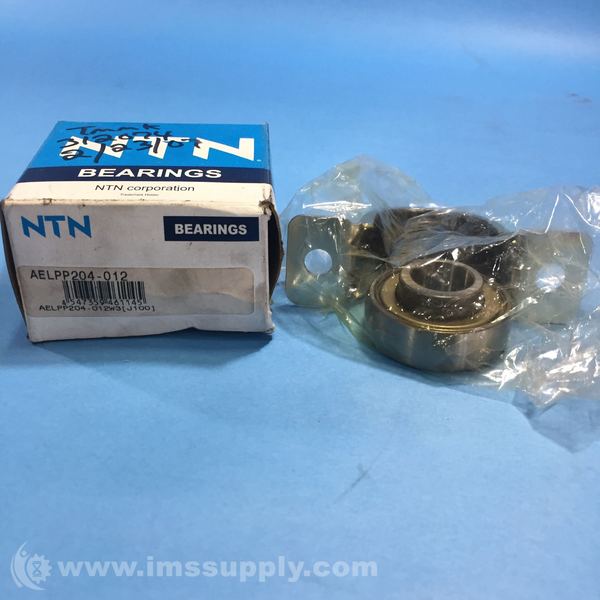

Ntn Bearing AELPP204-012 Pillow Block Unit

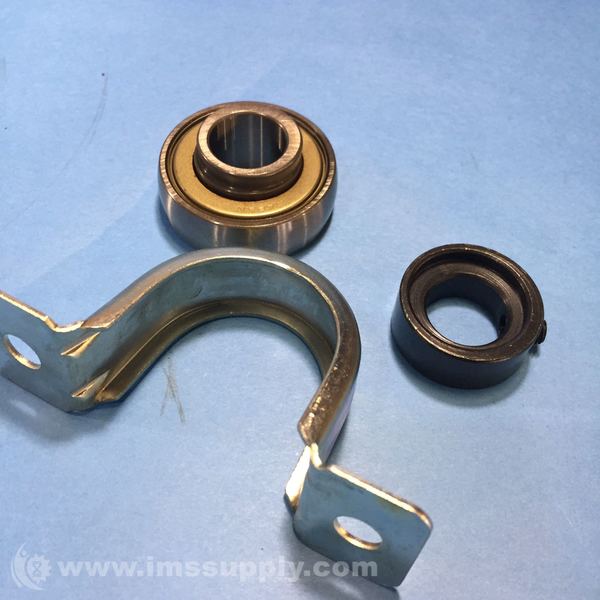

NTN Bearing AELPP204-012 Pillow Block Unit with eccentric locking collar and pressed steel housing.
Specifications
- Type: Pillow Block Unit

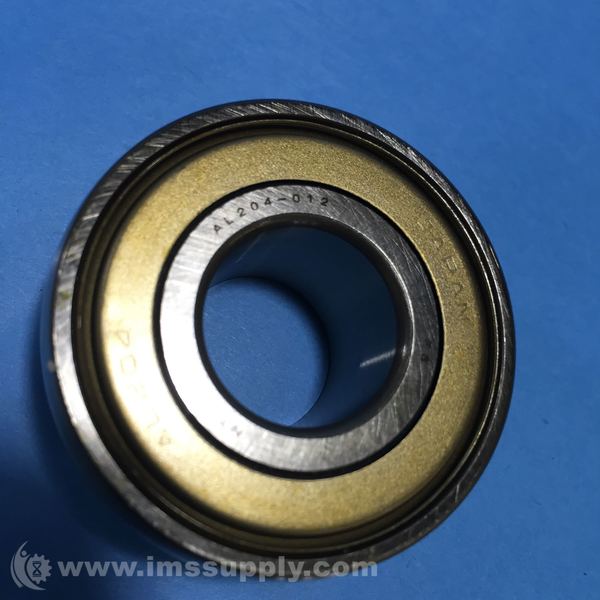

- Bearing Type: Ball Bearing
- Locking Device: Eccentric Locking Collar
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Housing Material: Pressed Steel
- Dynamic Load Rating: 2880 lbf, 12800 N, 12.80 kN
- Static Load Rating: 1500 lbf, 6650 N, 6.65 kN
- Max. Load Recommended - Axial: 160 lbf, 800 N
- Max. Load Recommended - Radial: 440 lbf, 2000 N
- Rotational Speed [Max]: 6700 RPM
- Weight: 0.400 lb, 0.200 kg
- d: 0.7500 in, 19.050 mm
- J: 3.0000 in, 76.0 mm
- L: 3.8437 in, 98.0 mm
