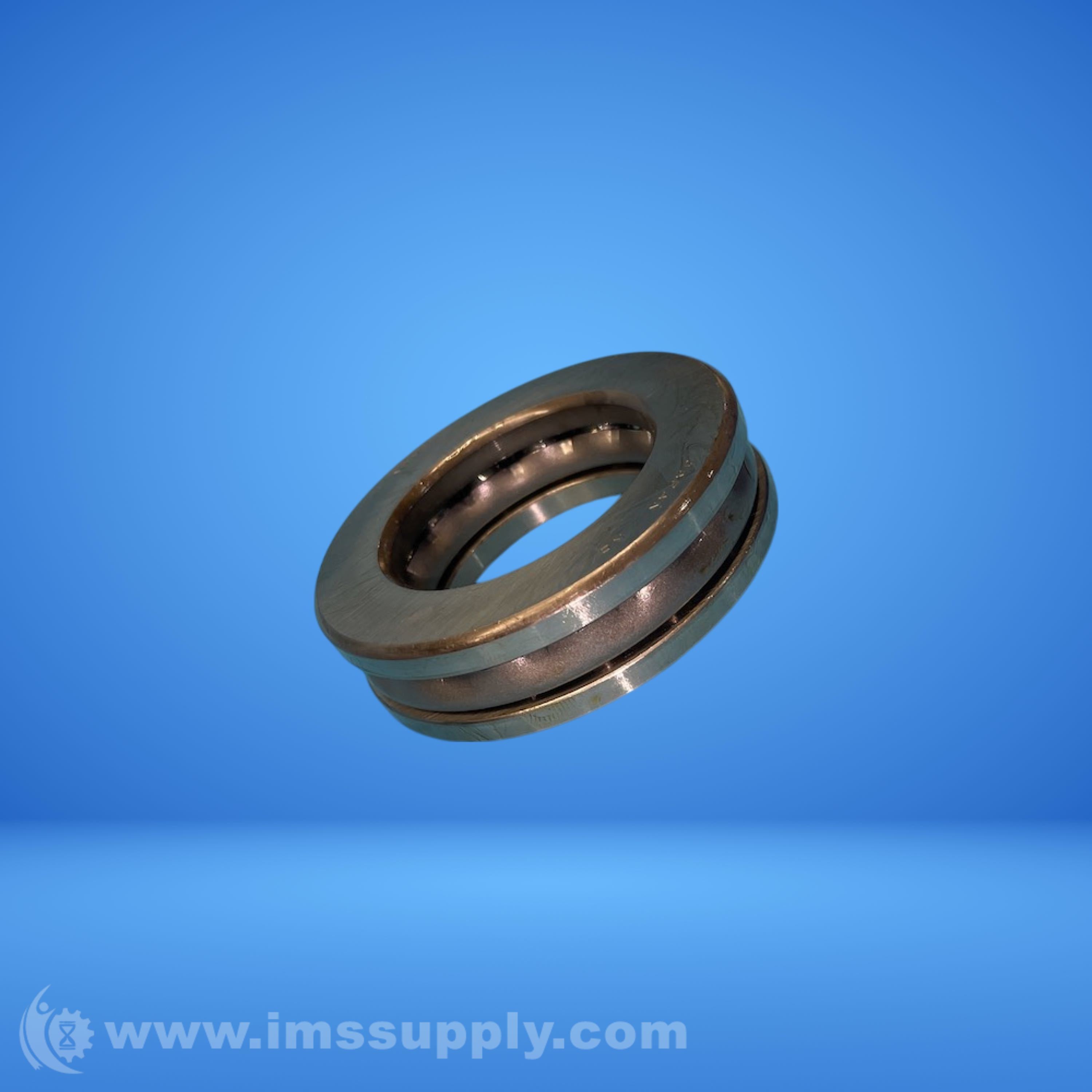

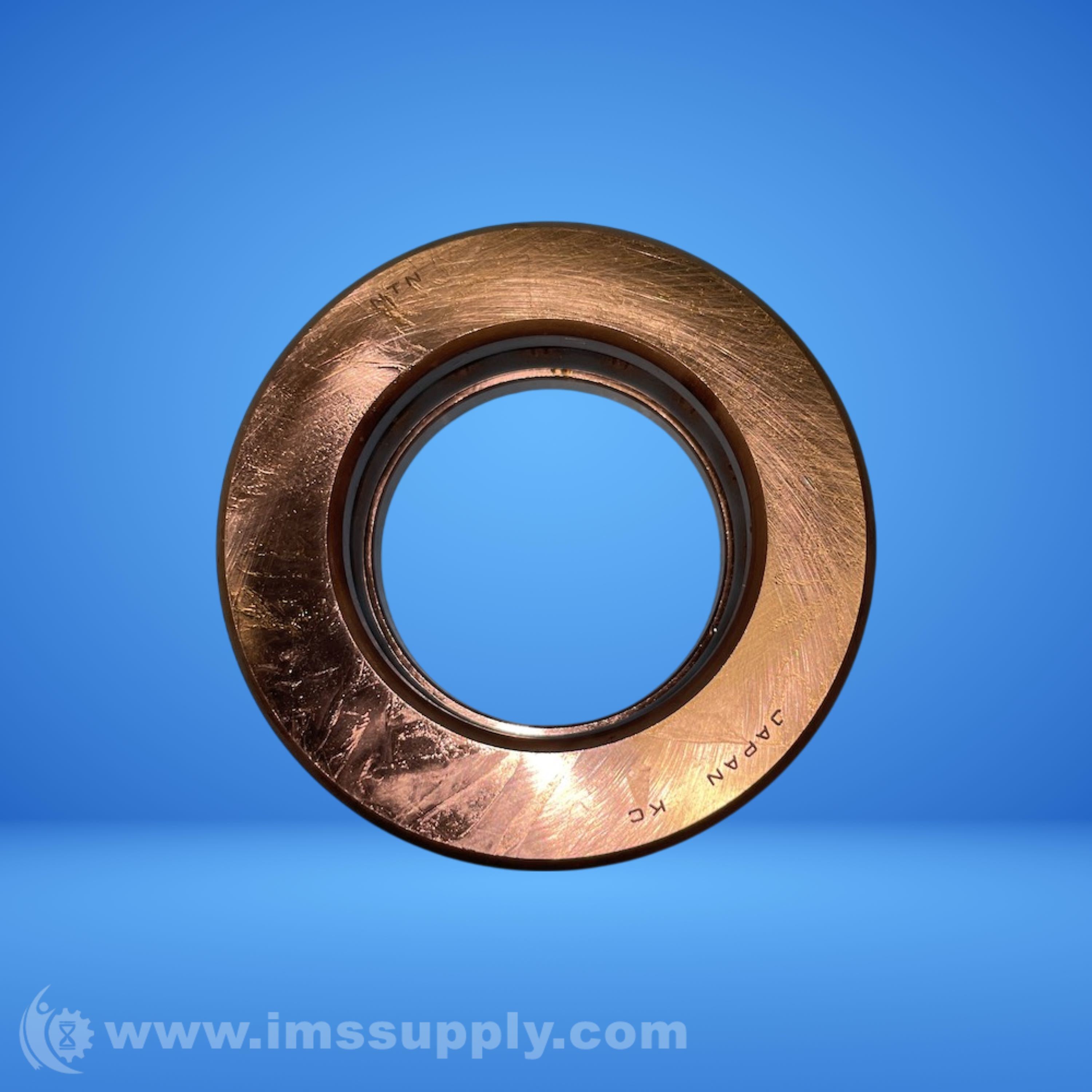

NTN 51208 THRUST BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 51208
IMS Product Code: 2122042
Packaging: Sold Individually
Description:
NTN 51208 Thrust Ball Bearing
Single Direction Thrust Ball Bearing, Metric, 40mm Bore, 68mm OD, 19mm Width, Separable, High Carbon Chrome Steel
Specifications
- Bore Type: Round
- Outside Ring Type: Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 3900 RPM
- Limiting Speed - Grease: 2700 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 98500 N
- Dynamic Load Rating: 47000 N
- Enclosure: Open
- Weight: 0.260 kg
- Operating Temperature Range: -40 to 120 degrees C
- d: 40.000 mm
- D1: 42.000 mm
- d1: 68.000 mm
- D: 68.000 mm
- T: 19.000 mm
- r: 1.000 mm
- da min: 57.000 mm
- Da max: 57.000 mm
- ras max: 1.000 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
