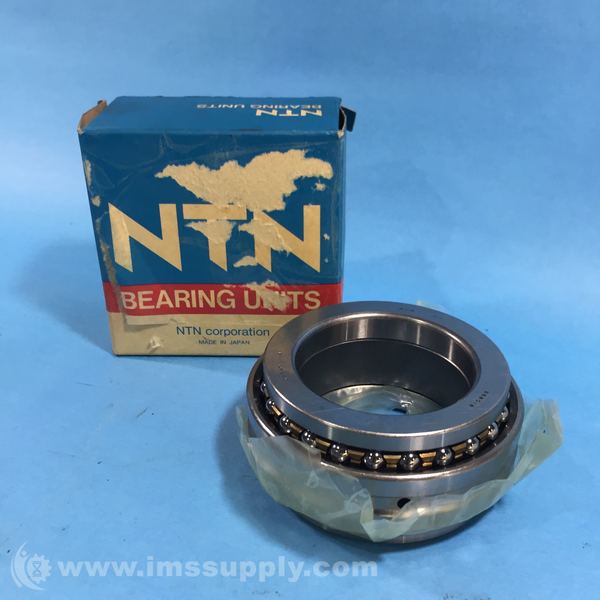

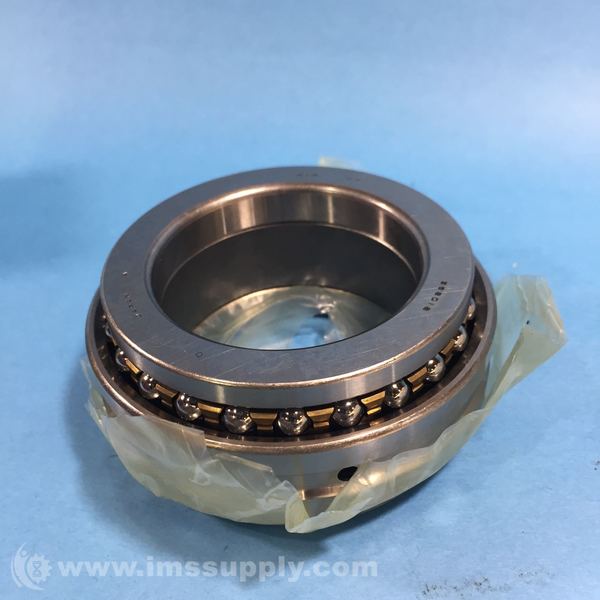

NTN 562012/GNP5 BALL THRUST BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 562012/GNP5
IMS Product Code: 1859027
Packaging: Sold Individually
Description:
NTN 562012/GNP5 Ball Thrust Bearing

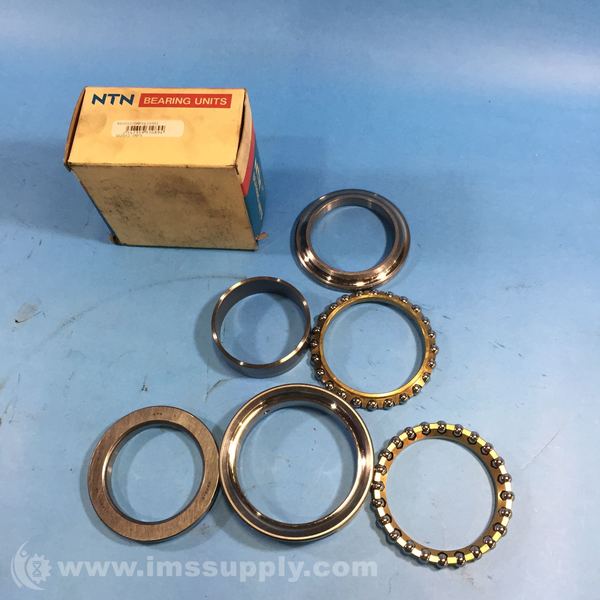

Double-Direction, Separable, High Carbon Chrome Steel
Specifications
- Bore Diameter: 60 mm
- Fillet Radius: 0.0433 in, 1.100 mm
- Outside Diameter: 95 mm
- Overall Width: 44 mm
- Precision Rating: ISO Class 5
- Bearing Material: High Carbon Chrome Steel
- Cage Material: Brass
- Cage Type: Machined
- Closure Type: Open
- Configuration: Two
- Dynamic Load Capacity: 8430 lbf
- Max Operating Temperature: 250 degrees F
- Max Rpm: 5700 rpm
- Operating Temperature Range: -40 to 250 degrees F
- Radial Dynamic Load Capacity: 8450 lbf
- Seal Material: None
- Series: 5620
- Static Load Capacity: 23155 lbf
- Thrust Bearing Type: Double-Direction
