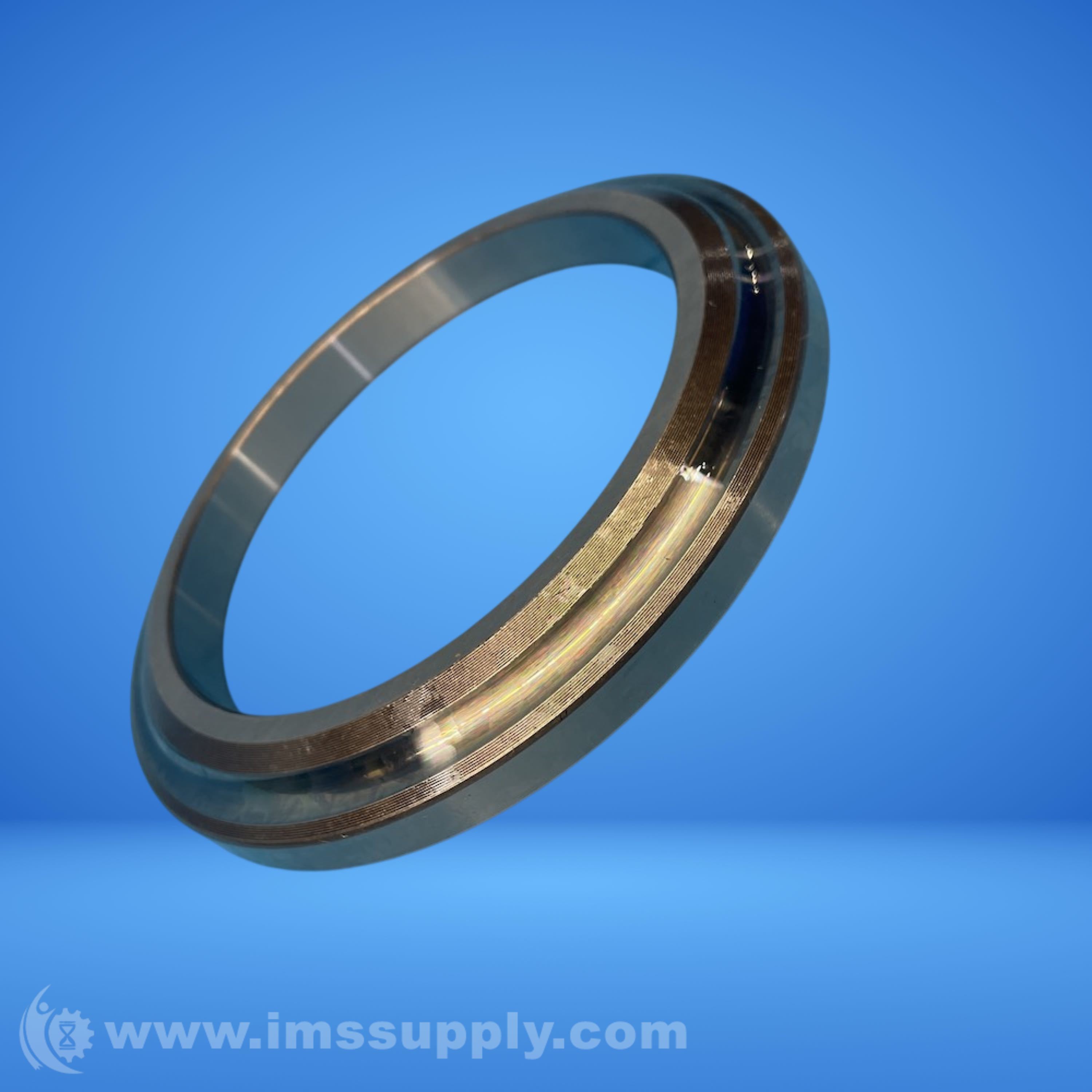

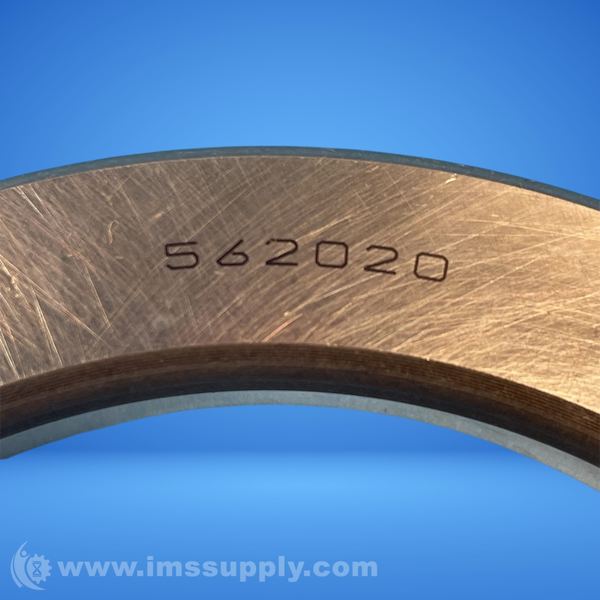

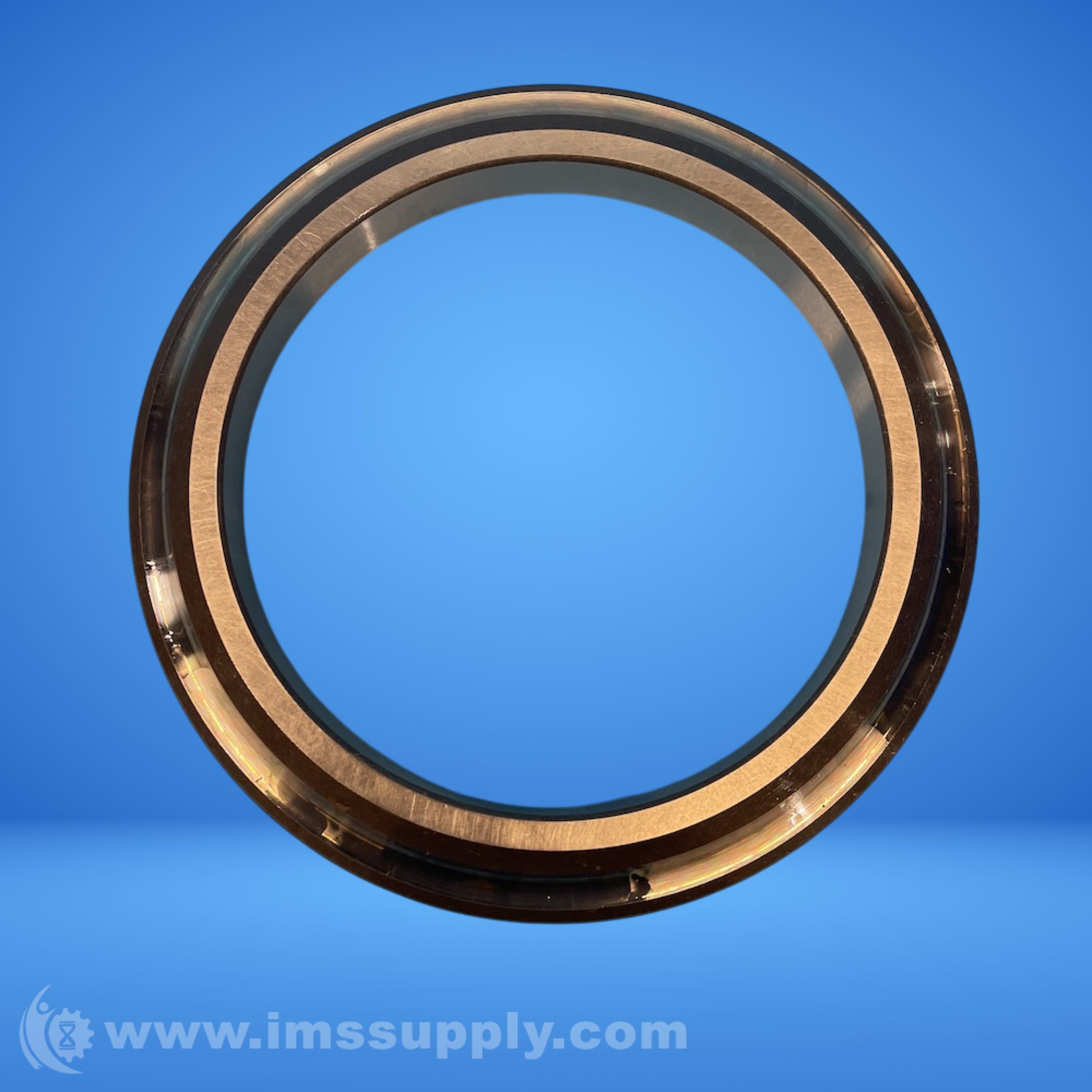

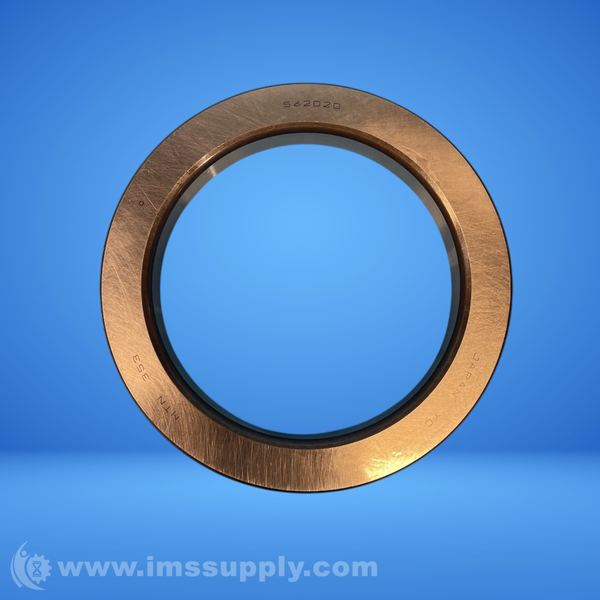

NTN 562020 THRUST BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 562020
IMS Product Code: 2156890
Packaging: Sold Individually
Description:
NTN 562020 Thrust Ball Bearing
Thrust Ball Bearing
Specifications
- Type: Thrust Ball Bearing
- Bore Type: Round
- Outside Ring Type: Straight
- Material: High Carbon Chrome Steel
- Cage Type: Machined
- Cage Material: Brass
- Ball Material: Steel
- Limiting Speed - Oil: 3800 RPM
- Limiting Speed - Grease: 2900 RPM
- Configuration: Two
- Static Load Rating: 51500 lbf229000 N229.00 kN
- Dynamic Load Rating: 15400 lbf68500 N68.50 kN
- Enclosure: Open
- Operating Temperature Range: -40 to 250 F-40 to 120 C
- d: 3.9370 in100.000 mm
- D: 5.9055 in150.000 mm
- C: 1.1811 in30.000 mm
- T1: 2.3622 in60.000 mm
- J: 5.2362 in133.000 mm
- Ew: 5.3937 in137.000 mm
- r: 0.0591 in1.500 mm
- r1: 0.0394 in1.000 mm
- Wo: 0.3150 in8.000 mm
- do: 0.1575 in4.000 mm
- Contact Angle: 60
- da min: 4.6850 in119.000 mm
- Da max: 4.6850 in119.000 mm
- ras max: 0.0591 in1.500 mm
- r1as max: 0.0394 in1.000 mm
- Weight: 3.32 Kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Tuesday, May 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
