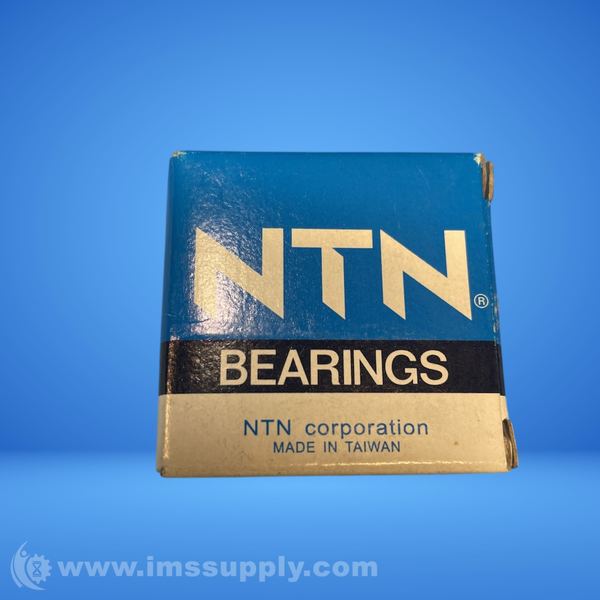

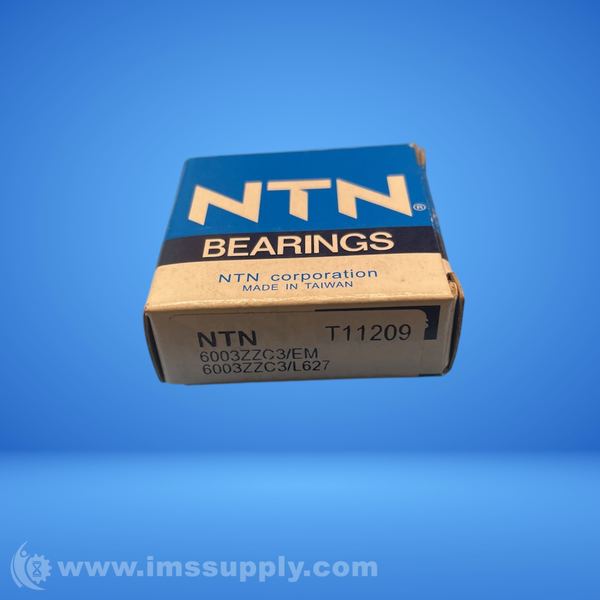

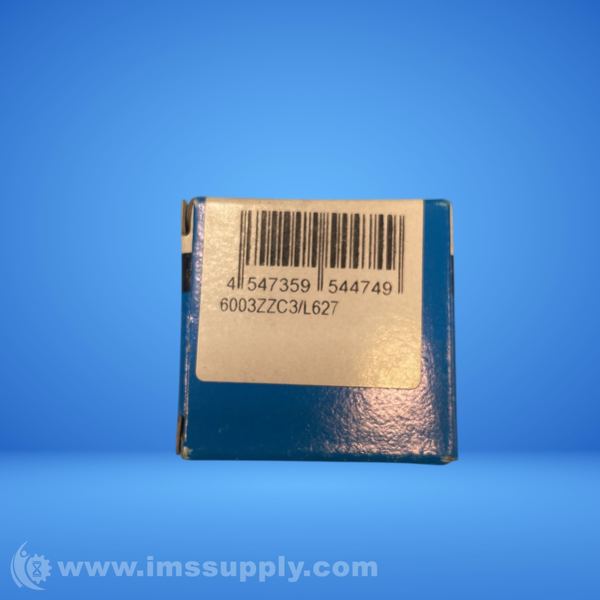

NTN 6003ZZC3/EM DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6003ZZC3/EM
IMS Product Code: 2153449
Packaging: Sold Individually
Description:
NTN 6003ZZC3/EM Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Double Shielded
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 20000 RPM
- Precision: ISO Class 0
- Radial Internal Clearance: C3
- Static Load Rating: 755 lbf, 3350 N, 3.35 kN
- Dynamic Load Rating: 1690 lbf, 7550 N, 7.55 kN
- Enclosure: Double Shielded
- Weight: 0.084 lb, 0.038 kg
- Operating Temperature Range: -40 to 250 degrees F, -40 to 120 degrees C
- d: 0.6693 in, 17.000 mm
- D: 1.3780 in, 35.000 mm
- B: 0.3937 in, 10.000 mm
- r: 0.0118 in, 0.300 mm
- r1: 0.0118 in, 0.300 mm
- da min: 0.7480 in, 19.000 mm
- Da max: 1.2992 in, 33.000 mm
- ras max: 0.0118 in, 0.300 mm
- Bore Diameter: 17 mm
- Outside Diameter: 35 mm
- Overall Width: 10 mm
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Precision Rating: ISO Class 0
- Finish Coating: Uncoated
- Series: 60
- Radial Dynamic Load Capacity: 1690 lbf
- Radial Static Load Capacity: 755 lbf
- I.D.: 17 mm
- O.D.: 35 mm
- Outer Ring Width: 10 mm
- Inch/Metric: Metric
- No. in Set: Single Bearing
- Shield: Metal Shield - Both Sides
- Clearance: C3
- Precision: P0 Precision
- Dynamic Load: 6800 N
- Static Load: 3350 N
- Series: 60 Series
- Load Capacity: 6800 N
- Maximum Speed: 20000 rpm Grease
- Number of Rows: 1
