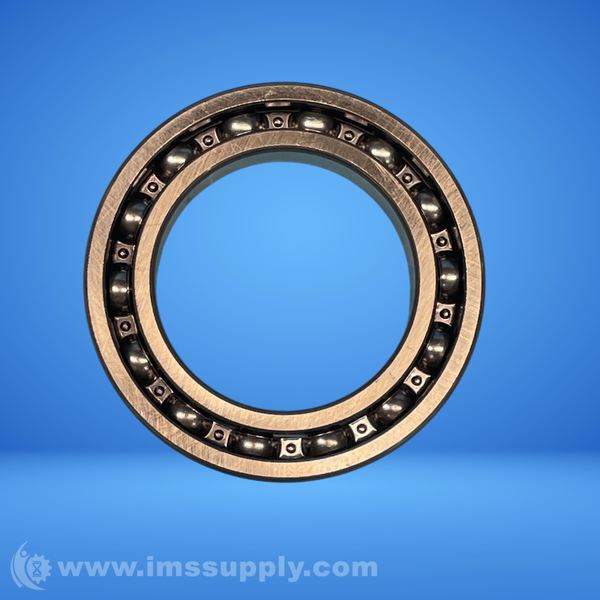

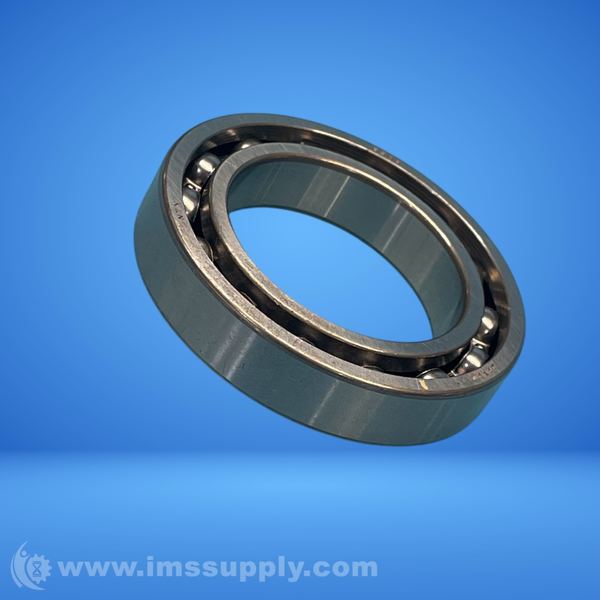

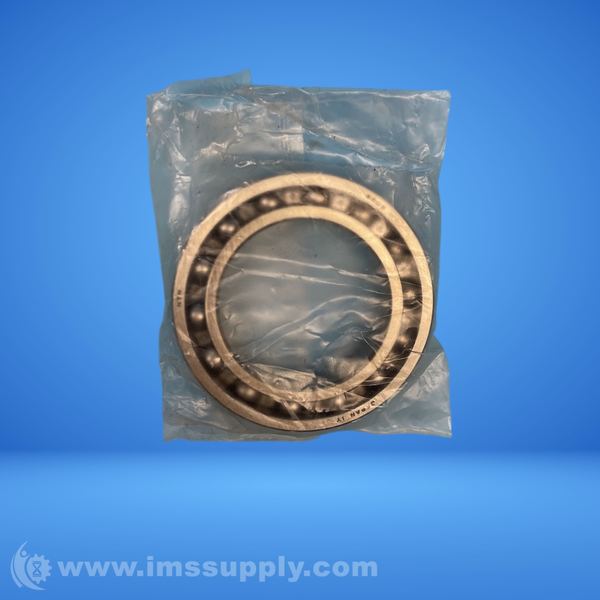

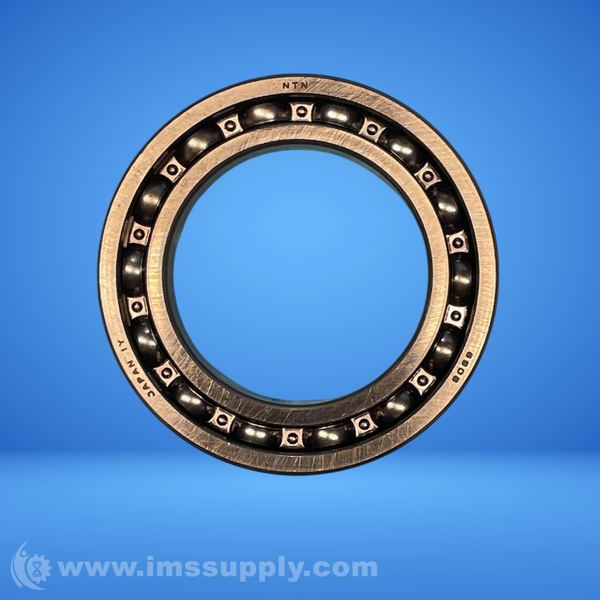

NTN 8908 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 8908
IMS Product Code: 2167476
Packaging: Sold Individually
Description:
NTN 8908 Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Double Sealed (Contact Rubber Seal)
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Configuration: One
- Radial Internal Clearance: CN
- Precision: ISO Class 0
- Enclosure: Double Sealed
- d: 0.3150 in, 8.000 mm
- D: 0.9449 in, 24.000 mm
- Total Width: 0.4970 in, 12.624 mm
- r: 0.0118 in, 0.300 mm
- Operating Temperature Range: -40 to 250 degrees F, -40 to 120 degrees C
- Static Load Rating: 355 lbf, 1580 N, 1.58 kN
- Dynamic Load Rating: 900 lbf, 4000 N, 4.00 kN
- Limiting Speed - Grease: 24000 RPM
