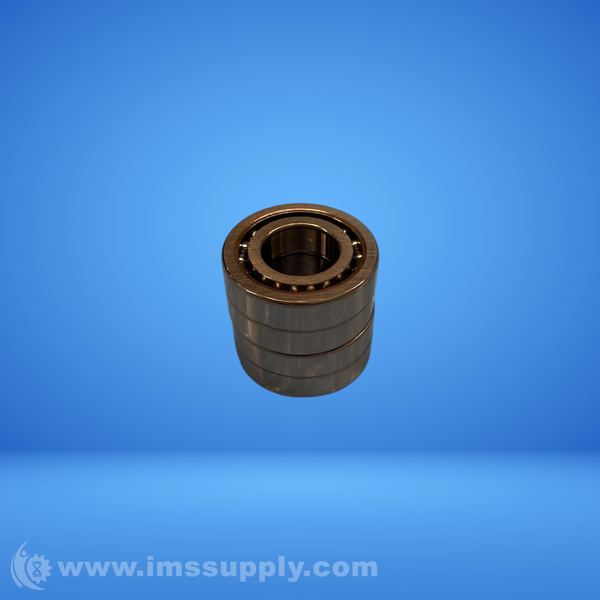

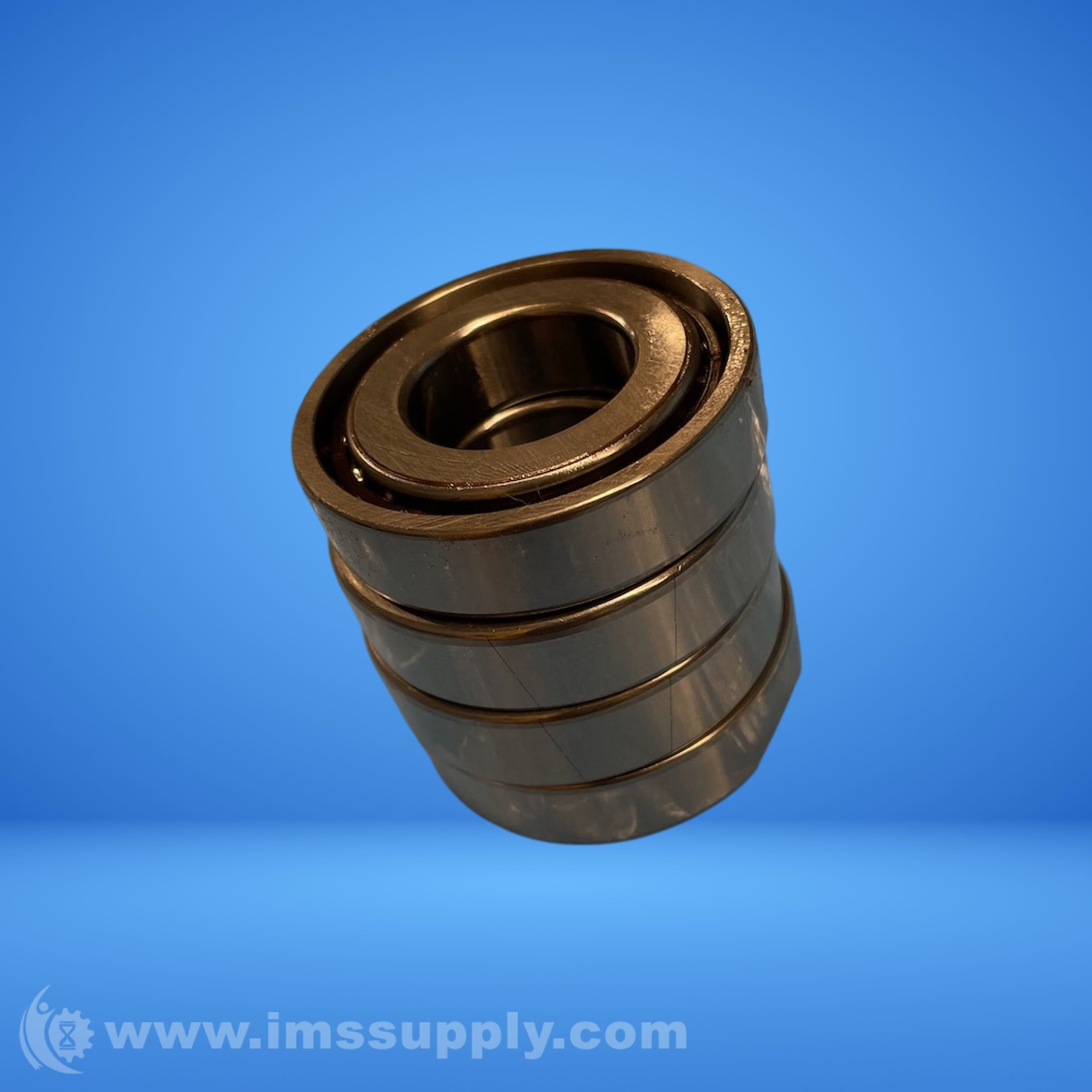

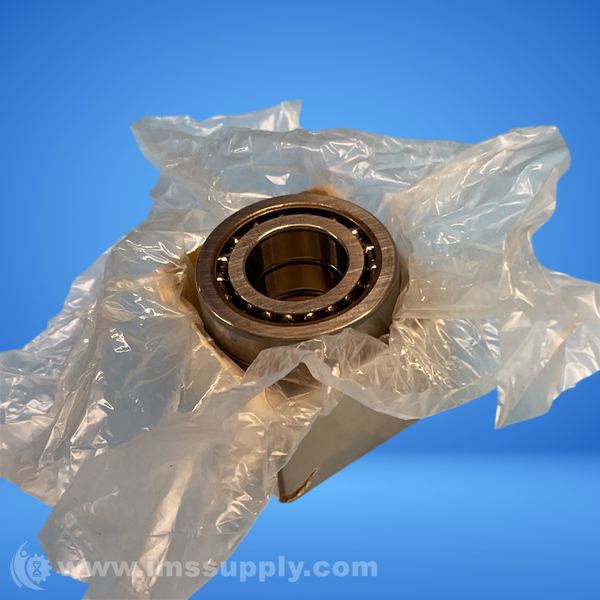

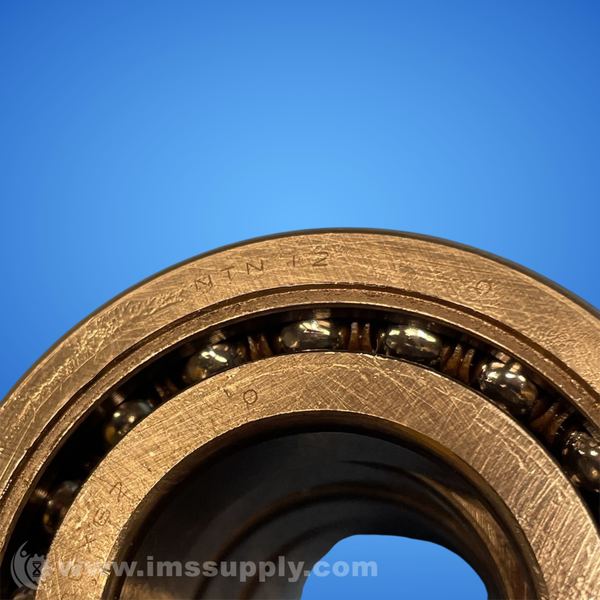

NTN BST30X62-1BDTFTP4 QUADRUPLE-ROW ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: BST30X62-1BDTFTP4
IMS Product Code: 2121342
Packaging: Sold Individually
Description:
NTN BST30X62-1BDTFTP4 Quadruple-Row Angular Contact Bearing
Quadruple-row angular contact thrust ball bearing for ball screws with DTFT arrangement, open type, four rows, high carbon chrome steel, resin cage.
Specifications
- Material: High Carbon Chrome Steel
- Cage Material: Resin
- Precision: ISO Class 4
- Configuration: Four
- Static Load Rating: 26500 lbf
- Dynamic Load Rating: 10700 lbf
- Enclosure: Open
- Weight: 1.834 lb
- Operating Temperature Range: -40 to 250 F
- Bore Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 60 mm
- Contact Angle: 60 degrees
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 36 minutes.
