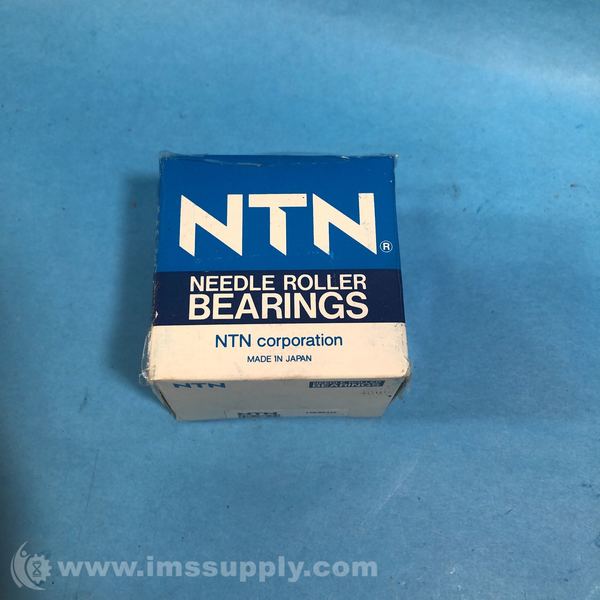

NTN NK45/30R NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NK45/30R
IMS Product Code: 1910079
Packaging: Sold Individually
Description:
NTN NK45/30R Needle Roller Bearing
Needle Roller Bearing
Specifications
- Type: Needle Roller Bearing
- Roller Type: Needle
- Configuration: One
- Material: High Carbon Chrome Steel
- Cage Material: Steel
- Limiting Speed - Oil: 9000 RPM
- Limiting Speed - Grease: 6000 RPM
- Precision: ISO Class 0
- Enclosure: Open
- Static Load Rating: 19200 lbf/85500 N/85.50 kN
- Dynamic Load Rating: 9200 lbf/41000 N/41.00 kN
- Weight: 0.306 lb/0.139 kg
- Operating Temperature Range: -40 to 250 ºF/-40 to 120 ºC
- Fw: 1.7717 in/45.000 mm
- Fw Tolerance: 0.041/0.025 mm
- D: 2.1654 in/55.000 mm
- C: 1.1811 in/30.000 mm
- r: 0.0118 in/0.300 mm
- Da max: 2.0866 in/53.000 mm
- ras max: 0.0118 in/0.300 mm
- Dimensions: 45x55x30mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 4 In Stock
Ships today if ordered in the next 1 hours and 6 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 6 minutes.
