NTN NKX30T2 NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NKX 30 T2
IMS Product Code: 1993151
Packaging: Sold Individually
Description:

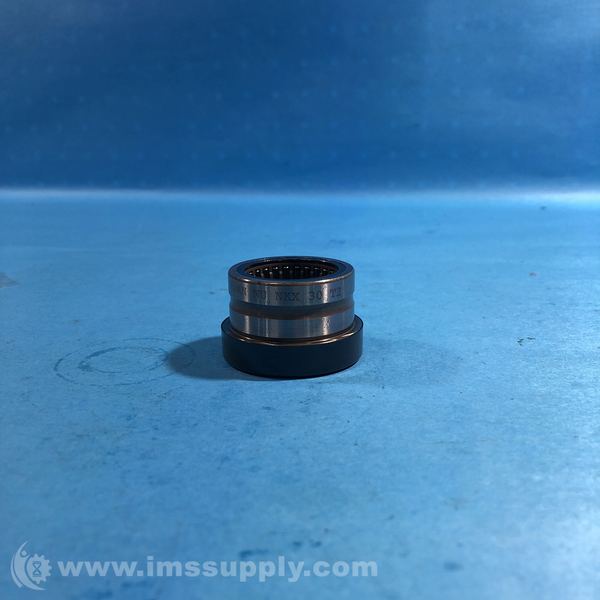

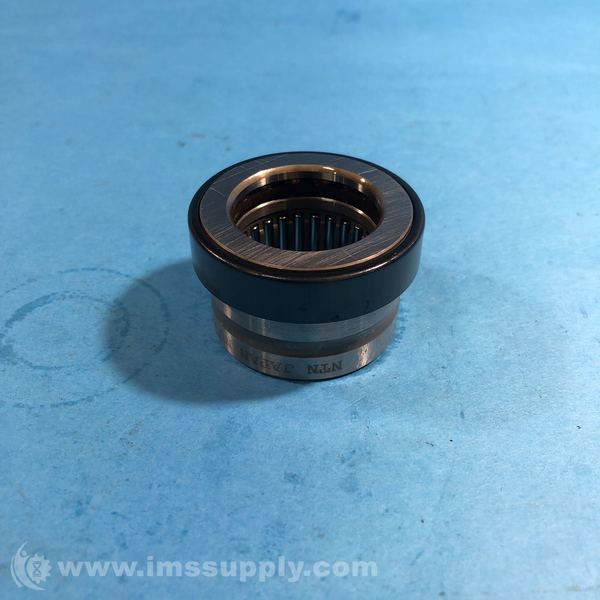

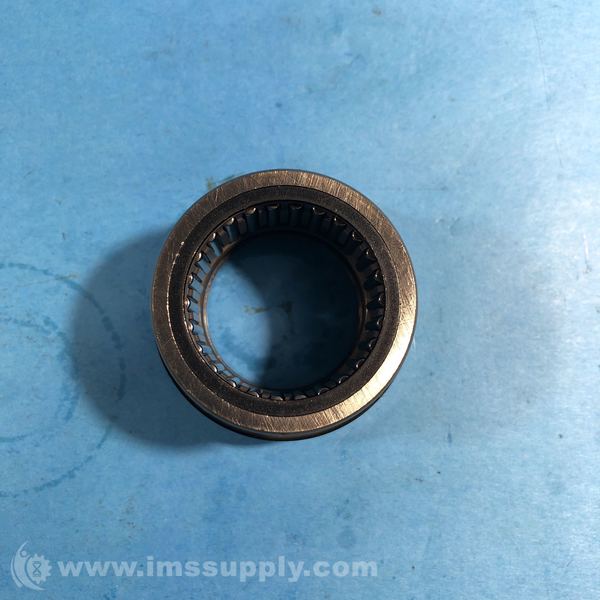

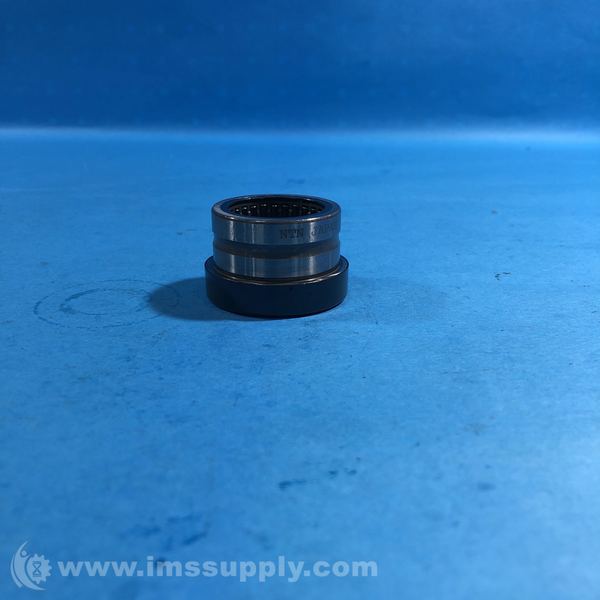

NTN NKX30T2 Needle Roller Bearing
NTN NKX30T2 is a machined ring needle roller bearing with a 30 mm bore. It features a polyamide cage and an open design. This NKX series bearing combines a needle roller bearing with a thrust ball bearing for combined radial and axial loads in a compact assembly.
Specifications
- Type: Complex Bearing
- Bore Type: Round
- Configuration: One
- Clearance: CN
- Material: High Carbon Chrome Steel
- Cage Material: Nylon
- Limiting Speed - Oil: 6200 RPM
- Limiting Speed - Grease: 4300 RPM
- Precision: ISO Class 0
- Enclosure: Open
- Axial Static Load Rating: 9450 lbf / 42000 N
- Axial Dynamic Load Rating: 4600 lbf / 20400 N
- Radial Static Load Rating: 8900 lbf / 39500 N
- Radial Dynamic Load Rating: 5000 lbf / 22300 N
- Weight: 0.309 lb / 0.140 kg
- Operating Temperature Range: -40 to 250 F / -40 to 120 C
- Fw: 1.1811 in / 30.000 mm
- Fw Tolerance: 0.061/0.040 mm
- dw: 1.1811 in / 30.000 mm
- dw Tolerance: 0.033/0.020 mm
- D: 1.6535 in / 42.000 mm
- D1: 1.8504 in / 47.000 mm
- C: 1.1811 in / 30.000 mm
- C Tolerance: 0/-0.250 mm
- C1: 0.4331 in / 11.000 mm
- C1 Tolerance: 0/-0.200 mm
- C2: 0.3740 in / 9.500 mm
- r: 0.0236 in / 0.600 mm
- da min: 1.5748 in / 40.000 mm
- ras max: 0.0236 in / 0.600 mm
