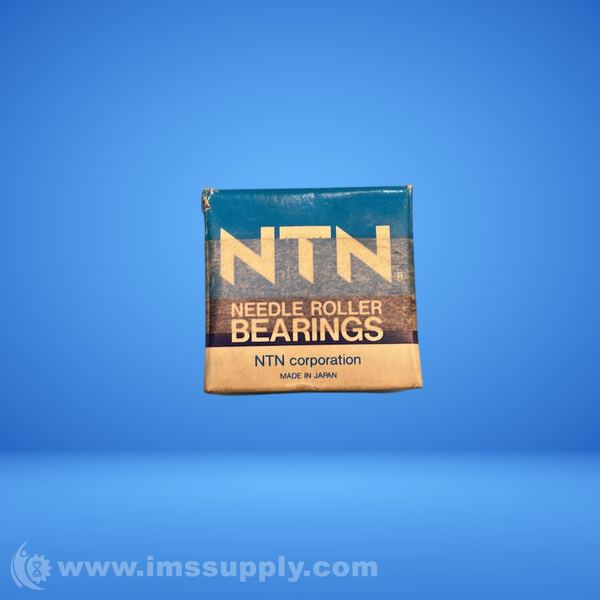

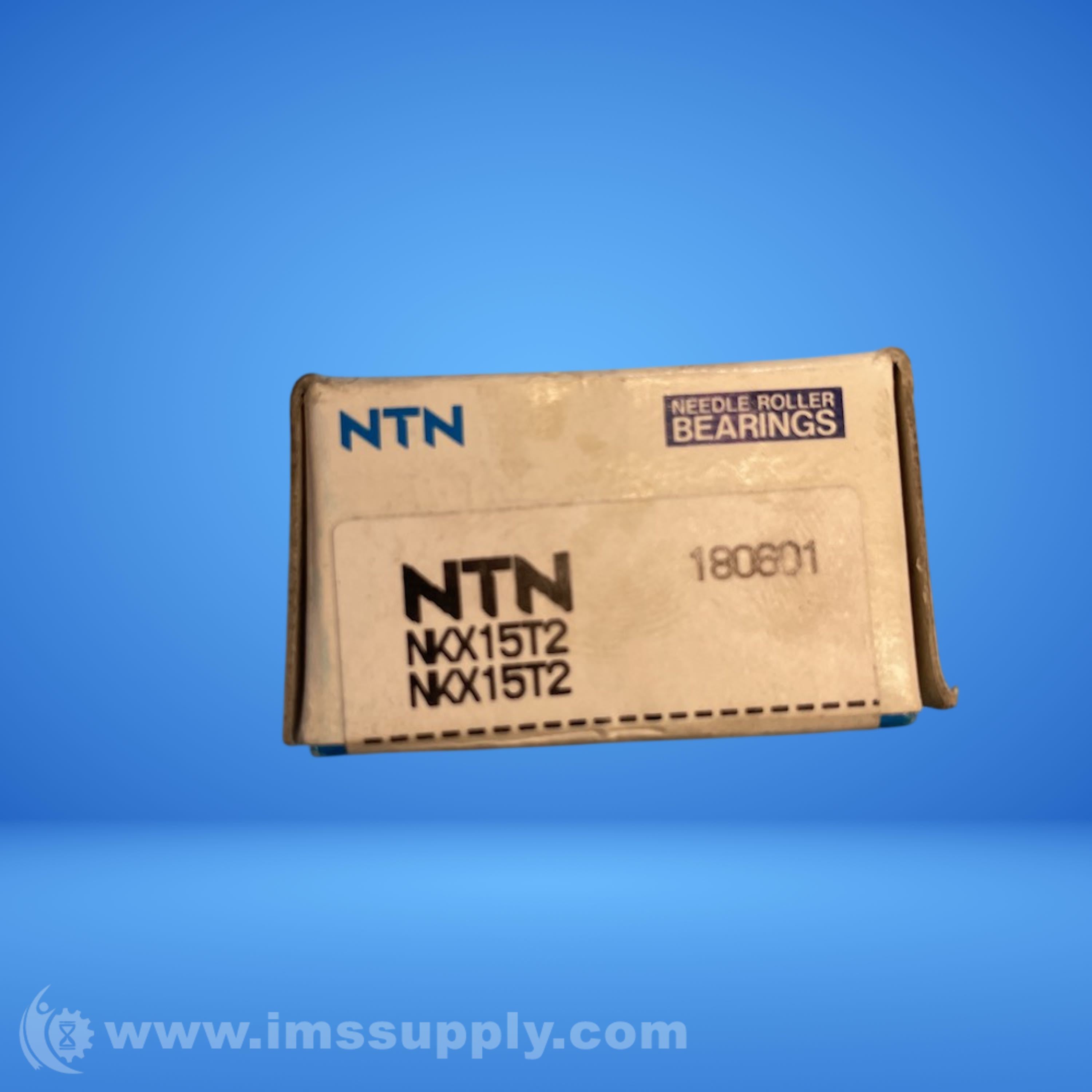

NTN NKX15T2 NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NKX15T2
IMS Product Code: 2158433
Packaging: Sold Individually
Description:
NTN NKX15T2 Needle Roller Bearing
Needle roller/axial ball bearing, 15mm x 24mm x 23mm, open type, high carbon chrome steel, nylon cage
Specifications
- Type: Complex Bearing
- Bore Type: Round
- Configuration: One
- Clearance: CN
- Material: High Carbon Chrome Steel
- Cage Material: Nylon
- Limiting Speed - Oil: 8800 RPM
- Limiting Speed - Grease: 6200 RPM
- Precision: ISO Class 0
- Enclosure: Open
- Axial Static Load Rating: 3800 lbf / 16800 N
- Axial Dynamic Load Rating: 2360 lbf / 10500 N
- Radial Static Load Rating: 2290 lbf / 10200 N
- Radial Dynamic Load Rating: 1850 lbf / 8250 N
- Weight: 0.097 lb / 0.040 kg
- Operating Temperature Range: -40 to 250 F / -40 to 120 C
- Fw: 0.5910 in / 15.000 mm
- Fw Tolerance: 0.050/0.032 mm
- dw: 0.5906 in / 15.000 mm
- dw Tolerance: 0.027/0.016 mm
- D: 0.9449 in / 24.000 mm
- D1: 1.1024 in / 28.000 mm
- C: 0.9055 in / 23.000 mm
- C Tolerance: 0/-0.250 mm
- C1: 0.3543 in / 9.000 mm
- C1 Tolerance: 0/-0.200 mm
- C2: 0.2559 in / 6.500 mm
- r: 0.0118 in / 0.300 mm
- da min: 0.9055 in / 23.000 mm
- ras max: 0.0118 in / 0.300 mm
- Inside Diameter: 15 mm
- Outside Diameter: 24 mm
- Width: 23 mm
- Dimensions: 15x24x23 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
