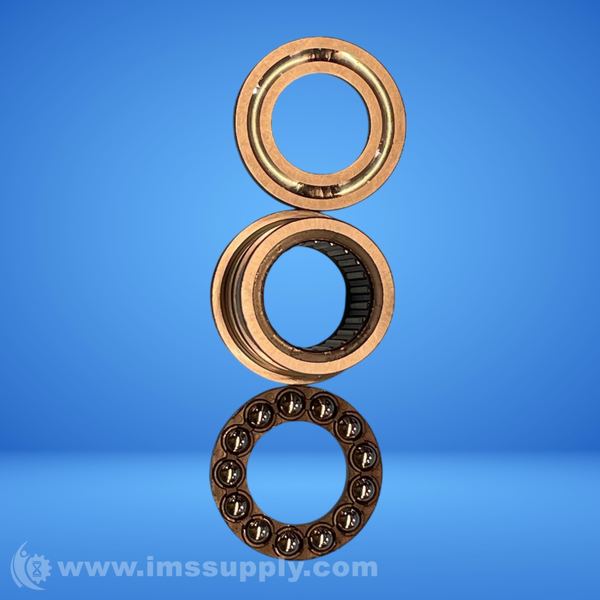

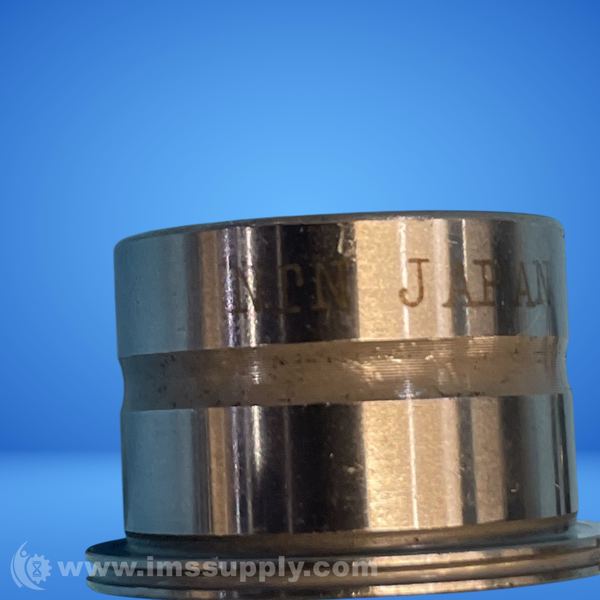

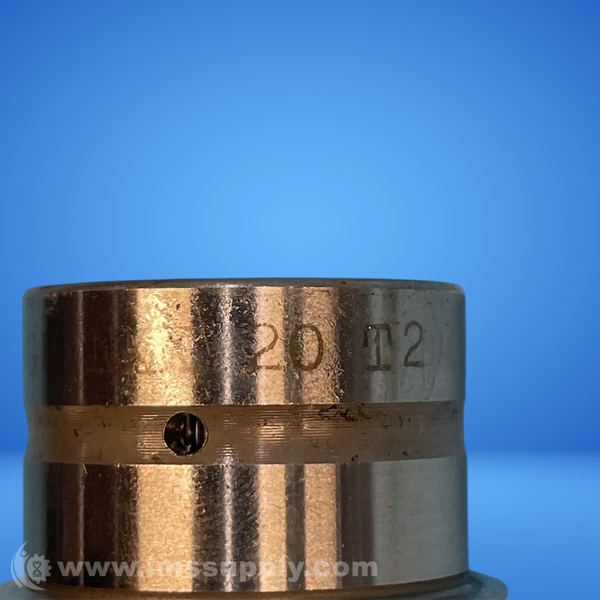

NTN NKX20T2 NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NKX20T2
IMS Product Code: 2158434
Packaging: Sold Individually
Description:
NTN NKX20T2 Needle Roller Bearing
Needle roller bearing with thrust ball bearing, open type, high carbon chrome steel, nylon cage, ISO Class 0 precision.
Specifications
- Type: Complex Bearing
- Bore Type: Round
- Clearance: CN
- Material: High Carbon Chrome Steel
- Cage Material: Nylon
- Limiting Speed - Oil: 7500 RPM
- Limiting Speed - Grease: 5200 RPM
- Precision: ISO Class 0
- Enclosure: Open
- Axial Static Load Rating: 5550 lbf/24700 N
- Axial Dynamic Load Rating: 3200 lbf/14200 N
- Radial Static Load Rating: 6100 lbf/27100 N
- Radial Dynamic Load Rating: 3700 lbf/16400 N
- Weight: 0.187 lb/0.085 kg
- Operating Temperature Range: -40 to 250 degrees F/-40 to 120 degrees C
- Fw: 0.7874 in/20.000 mm
- D: 1.1811 in/30.000 mm
- D1: 1.3780 in/35.000 mm
- C: 1.1811 in/30.000 mm
- C1: 0.3937 in/10.000 mm
- C2: 0.4134 in/10.500 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
