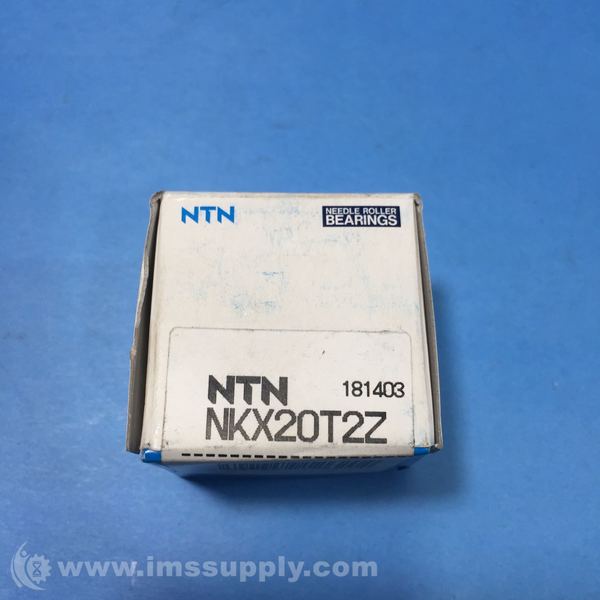

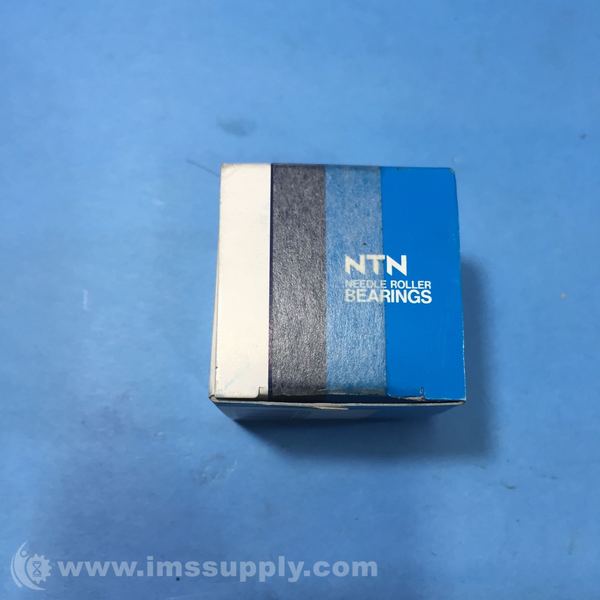

NTN NKX20T2Z NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NKX20T2Z
IMS Product Code: 1873073
Packaging: Sold Individually
Description:
NTN NKX20T2Z Needle Roller Bearing
Complex bearing composed of radial needle roller bearing and thrust ball bearing.
Specifications
- Type: Complex Bearing
- Bore Type: Round
- Configuration: One
- Clearance: CN
- Material: High Carbon Chrome Steel
- Cage Material: Nylon
- Limiting Speed - Oil: 7500 RPM
- Limiting Speed - Grease: 5200 RPM
- Precision: ISO Class 0
- Enclosure: Open
- Axial Static Load Rating: 5550 lbf/24700 N
- Axial Dynamic Load Rating: 3200 lbf/14200 N
- Radial Static Load Rating: 6100 lbf/27100 N
- Radial Dynamic Load Rating: 3700 lbf/16400 N
- Weight: 0.198 lb/0.090 kg
- Operating Temperature Range: -40 to 250 F/-40 to 120 C
- Fw: 0.7870 in/20.000 mm
- Fw Tolerance: 0.061/0.040 mm
- dw: 0.7874 in/20.000 mm
- dw Tolerance: 0.033/0.020 mm
- D: 1.1811 in/30.000 mm
- D1: 1.4173 in/36.000 mm
- C: 1.1811 in/30.000 mm
- C Tolerance: 0/-0.250 mm
- C1: 0.3937 in/10.000 mm
- C1 Tolerance: 0/-0.200 mm
- C2: 0.4134 in/10.500 mm
- a: 1.2087 in/30.700 mm
- r: 0.0118 in/0.300 mm
- da min: 1.1417 in/29.000 mm
- ras max: 0.0118 in/0.300 mm
- Bore Diameter: 20 mm
- Outside Diameter: 30 mm
- Overall Width: 30 mm
- Internal Clearance: CN
- Precision Rating: ISO Class 0
- Radial Dynamic Load Capacity: 3700 lbf
- Radial Static Load Capacity: 6100 lbf
- Bearing Material: High Carbon Chrome Steel
- Max Rpm: 7500 rpm
- Closure Type: Open
- Fillet Radius: 0.0118 in, 0.300 mm
- Series: NKX
- Load Capacity: 24700 N
- Maximum Speed: 5200 rpm Grease/7500 rpm Oil
- Width: 30 mm
- Bore Dia: 20 mm
- Closure: Open
- Operating Temperature: -40 to 120 deg C
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
