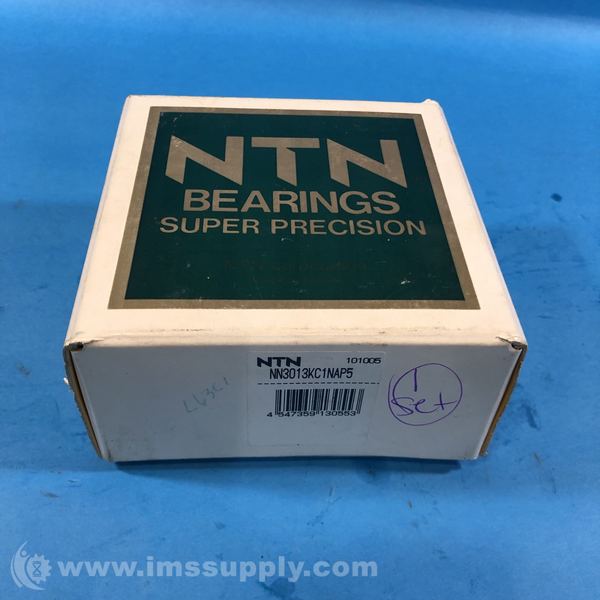

NTN NN3013KC1NAP5 CYLINDRICAL ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NN3013KC1NAP5
IMS Product Code: 1915250
Packaging: Sold Individually
Description:

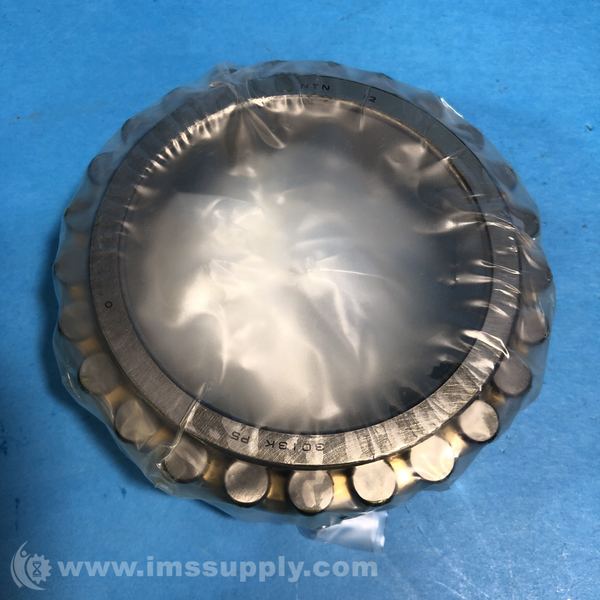

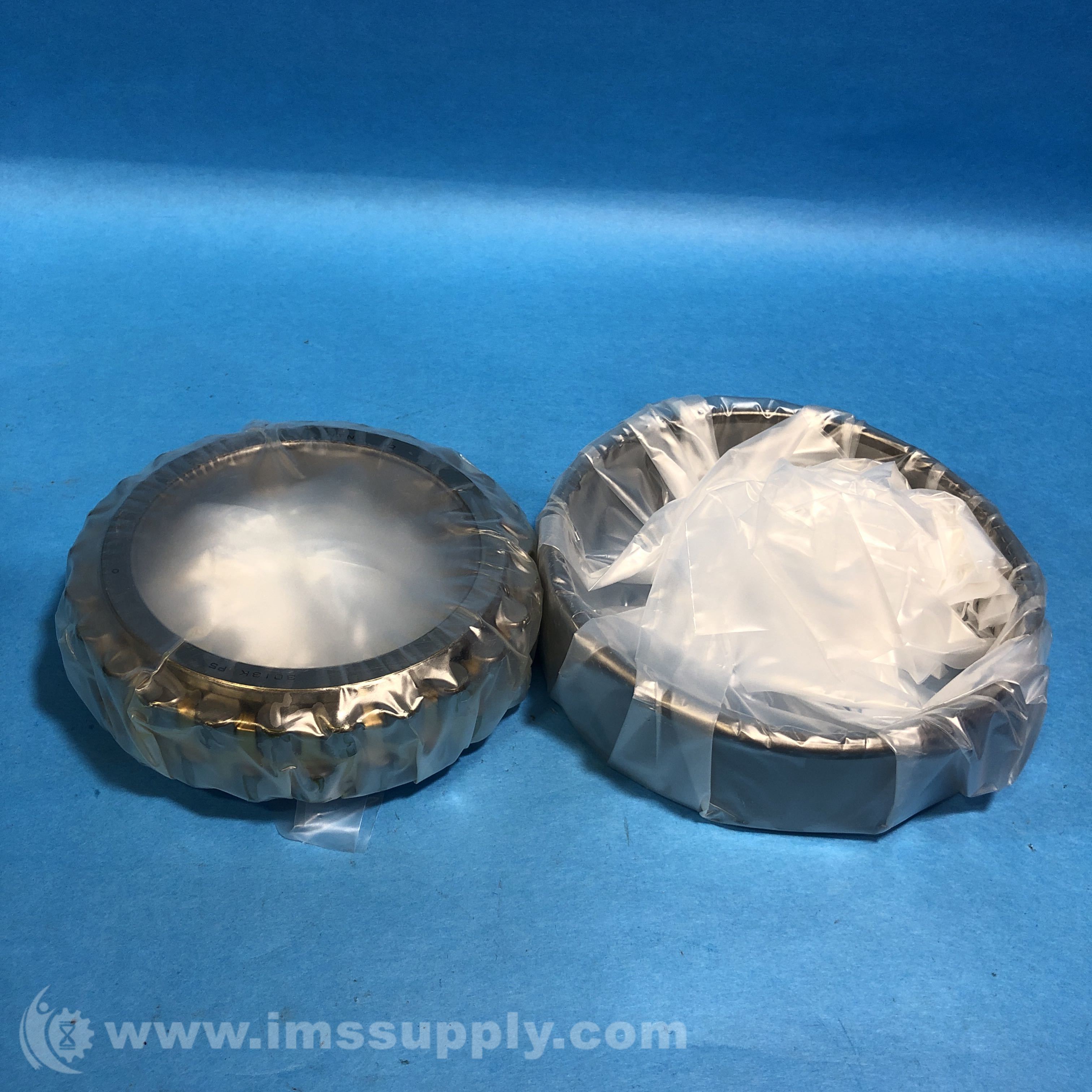

NTN NN3013KC1NAP5 Cylindrical Roller Bearing
Double Row Cylindrical Roller Bearing with Tapered Bore
Specifications
- Type: Cylindrical Roller Bearing
- Bore Type: Tapered
- Material: Hardened Alloy Steel
- Cage Material: High Strength 2 piece Machined Brass
- Limiting Speed - Oil: 7300 RPM
- Limiting Speed - Grease: 6200 RPM
- Taper: 1:12
- Precision: ISO Class 5
- Configuration: Two
- Oil Hole: w/o Oil Hole
- Radial Internal Clearance: C1NA
- Static Load Rating: 24954 lbf/111000 N/111.00 kN
- Dynamic Load Rating: 16861 lbf/75000 N/75.00 kN
- Enclosure: Open
- Weight: 1.532 lb/0.690 kg
- Operating Temperature Range: -40 to 250 ºF/-40 to 120 ºC
- d: 2.5590 in/65.000 mm
- D: 3.9370 in/100.000 mm
- B: 1.0236 in/26.000 mm
- C: 1.0236 in/26.000 mm
- Ew: 3.5827 in/91.000 mm
- r: 0.0433 in/1.100 mm
- da min: 2.8150 in/71.500 mm
- db min: 2.8937 in/73.500 mm
- Da max: 3.6220 in/92.000 mm
- Db min: 3.6220 in/92.000 mm
- Db max: 3.6811 in/93.500 mm
- ras max: 0.0394 in/1.000 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 4 minutes.
