NTN UCT316D1 TAKE-UP UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCT316D1
IMS Product Code: 2125475
Packaging: Sold Individually
Description:

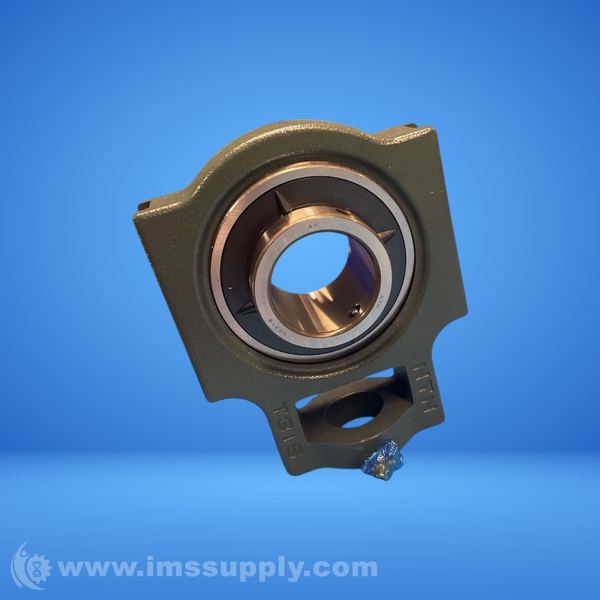

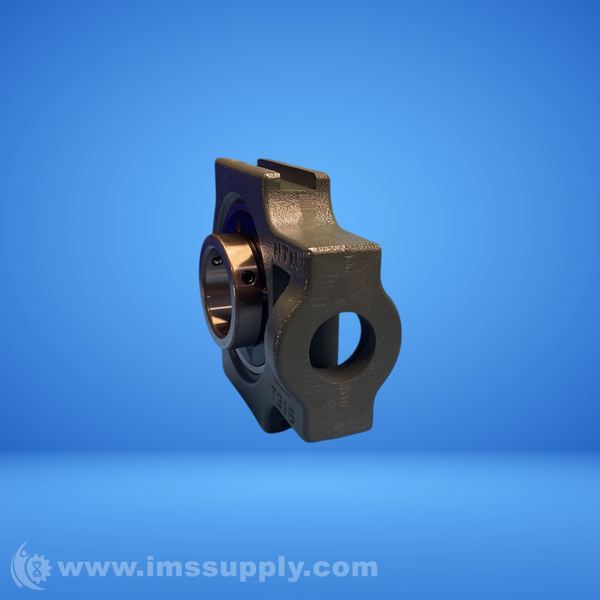

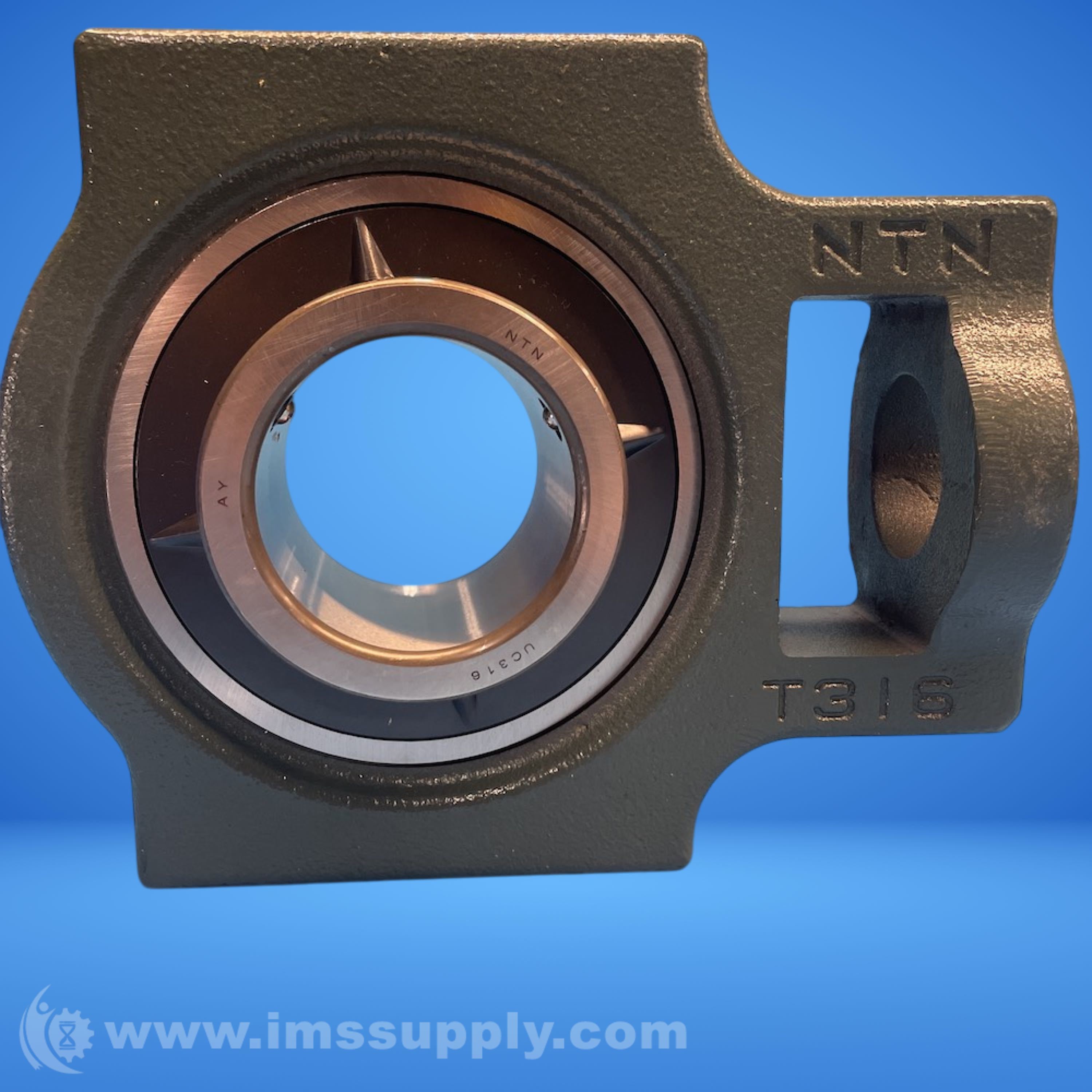

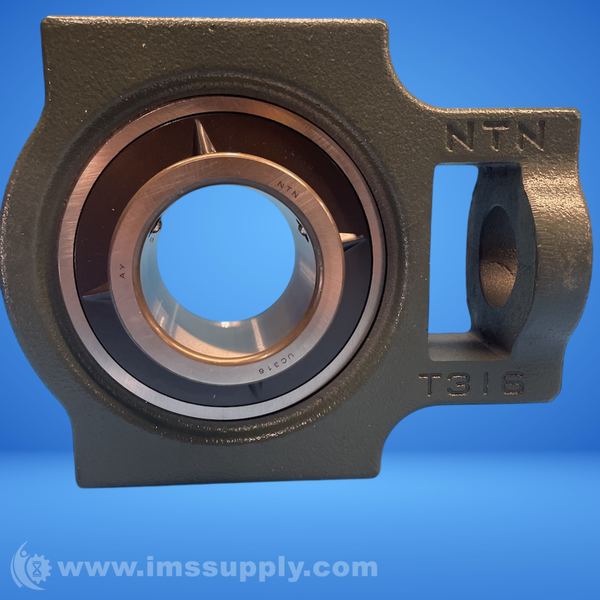

NTN UCT316D1 Take-Up Unit
Take-up ball bearing unit with cast iron housing and set screw locking device.
Specifications
- Type: Take-Up Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC316D1
- Housing Number: T316D1
- Housing Material: Cast Iron
- Performance: Heavy Duty
- Dynamic Load Rating: 27652 lbf, 123000 N, 123.00 kN
- Static Load Rating: 19446 lbf, 86500 N, 86.50 kN
- Rotational Speed [Max]: 1800.0 RPM
- Weight: 35.280 lb, 16.000 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Lubrication: Relubricatable
- d: 3.1500 in, 80.000 mm
- L: 11.0937 in, 282.0 mm
- H: 9.0625 in, 230.0 mm
- H1: 8.0313 in, 204.0 mm
- H2: 5.9062 in, 150.0 mm
- L1: 6.8437 in, 174.0 mm
- L2: 1.1875 in, 30.0 mm
- L3: 6.3125 in, 160.0 mm
- N: 2.0937 in, 53.0 mm
- N1: 1.6562 in, 42.0 mm
- N2: 3.8437 in, 98.0 mm
- A: 4.0313 in, 102.0 mm
- A1: 1.1811 in, 30.0 mm
- A2: 2.3750 in, 60.0 mm
- r: 4.2500 in, 108.0 mm
- B: 3.3858 in, 86.000 mm
- S: 1.3386 in, 34.000 mm
- F: 0.4488 in, 11.400 mm
- Outside Diameter: 6.6930 in, 170.000 mm
- Outside Ring Width: 1.7720 in, 45.000 mm
- Inside Ring Width: 1.7720 in, 45.000 mm
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Radial Dynamic Load Rating: 27652 lbf, 123000 N
- Radial Static Load Rating: 19446 lbf, 86500 N
- Rotational Speed [Max]-Grease: 1800 RPM
- Bore Diameter: 80 mm
- Country of Origin: JP
- Compatible Frame Number: T316D1
- Hole Diameter: 2.0937 in, 53.0 mm
- Duty Type: Heavy Duty
- Between Frame Width: 8.0313 in, 204.0 mm
- Body Width: 4.0313 in, 102.0 mm
- Overall Length: 282 mm
- Overall Height: 9.0625 in
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Width: 86 mm
- Replacement Bearing: UC316D1
- Type Of Bearing: Ball Bearing
- Expansion Capability: Non-Expansion Bearing (Fixed)
- Max Rpm: 1800 rpm
- Radial Static Load Capacity: 19400 lbf
- Manufacturer Catalog Number: UCT316D1
- Housing ID: T316D1
- Radial Dynamic Load Capacity: 27700 lbf
- Product Type: Take-Up Ball Bearing Units
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
