OMRON D4D-2120N LIMIT SWITCH

Starting At: $75.00

Quick Overview

Manufactured By: OMRON
Manufacturer Part Number: D4D-2120N
IMS Product Code: 1747095
Packaging: Sold Individually

Description:

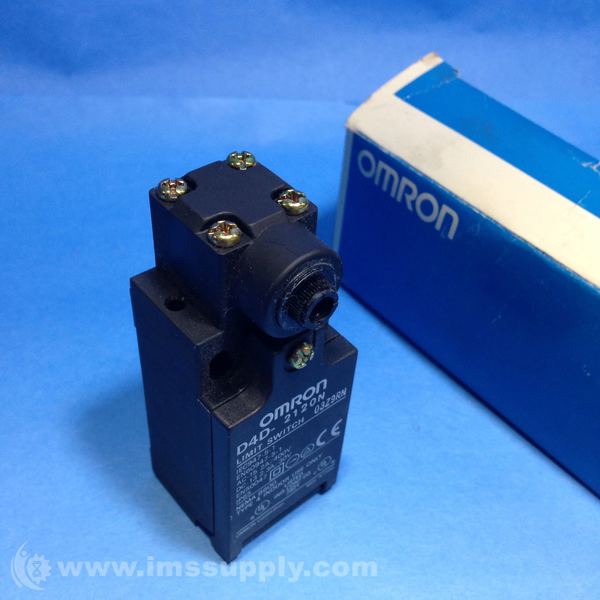

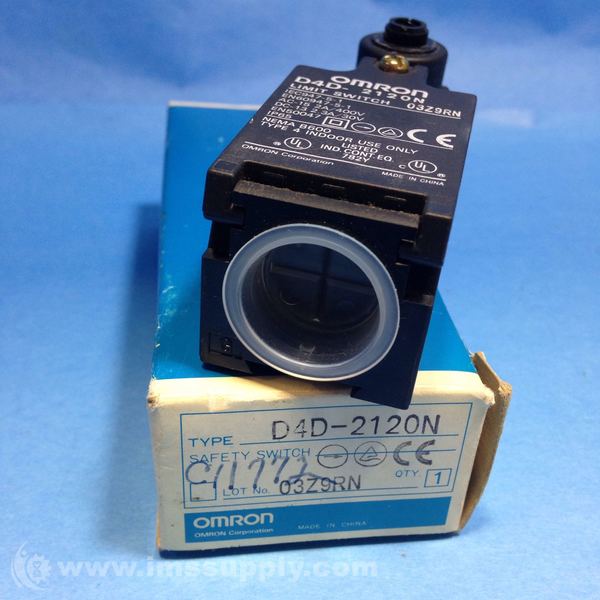

Omron D4D-2120N Limit Switch

Limit Switch D4D-2120N OMRON for JSW Injection Molding Machine

Specifications

  • product_name: Omron D4D-2120N Limit Switch
  • product_description: Limit Switch D4D-2120N OMRON for JSW Injection Molding Machine
  • Part #: D4D-2120N
  • Top Category: Switches
  • Category: Limit and Proximity Switches
  • Sub Category: Mechanical Limit Switches
  • Weight: 0.07 kgs
  • model_number: D4D-2120N
  • brand_name: Omron
  • Type: Complete Products
  • Vendor: Omron
  • Model: D4D-2120N
  • Brand: Omron
  • Usage/Application: Machine Tools
  • Switch Type: Rotary Limit Switch
  • Pole Throw: SPDT
  • Switch Configuration: Both
  • Rated Voltage: 240 VAC
  • Current Rating: 5a
  • Operating mechanism: Snap action ctuator Roller lever 17.5 dia x 6.8 Resin lever, Resin roller R26
  • Frequency: 50/60 Hz
  • Contact form: 1NC/1NO
  • Load: General load/Micro load
  • Conduit: G1/2
  • Number of conduit: 1
  • Ambient temperature: -30 to 70 (with no icing)
  • Ambient humidity: 95% RH max.
  • Permissible operating frequency: 30 operations / 1 minute max.
  • Contact resistance (Initial value): 25 m max.
  • Insulation resistance: 100 M min.
  • Impulse withstand voltage: Between each terminal of the same polarities: 2.5 kV Between each terminal of the different polarities: 4 kV Between each terminal and non-live-metallic part: 6 kV
  • Durability: Electrical: 300,000 operations min. (10 A at 250 VAC), 500,000 operations min. (3 A at 250 VAC) Mechanical: 15,000,000 operations min.
  • Vibration resistance: Malfunction: 10 to 55 Hz, 0.75 mm single amplitude
  • Shock resistance: Destruction: 1000 m/s2 Malfunction: 300 m/s2
  • Pollution degree: 3 (EN60947-5-1)
  • Degree of protection: IP67
  • Classification of protection against electric shock: Class II (Double insulation)


New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.

Availability: 1 In Stock
