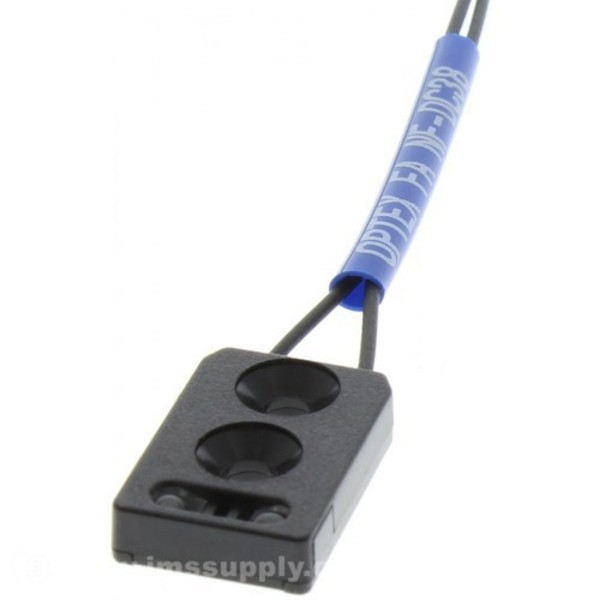

OPTEX NF-DC38 LIMITED DIFFUSE RECTANGULAR FLAT-ON 0-12MM
Starting At: $98.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DC38
IMS Product Code: 1781027
Packaging: Sold Individually
Description:
Optex NF-DC38 Limited Diffuse Rectangular Flat-on 0-12mm For Glass
NOt affected by change in angle
Clearly visible red spot when using D3RF series amplifier
Specifications:
| Sensing Mode | Convergent |
| Type of Sensing | High accuracy presence of glass/quartz targets |
| Beam Sensing Direction | Front-On |
| Mounting Size | 18 x 12 x 4 mm |
| Beam Diameter / Array (mm) | Ø 1.5 mm at 6 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Temperature | -40 to 60° C |
| D3RF Max Sensing Distance | 0 to 12 mm |
| Fiber Cable Bend Radius | R10 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
