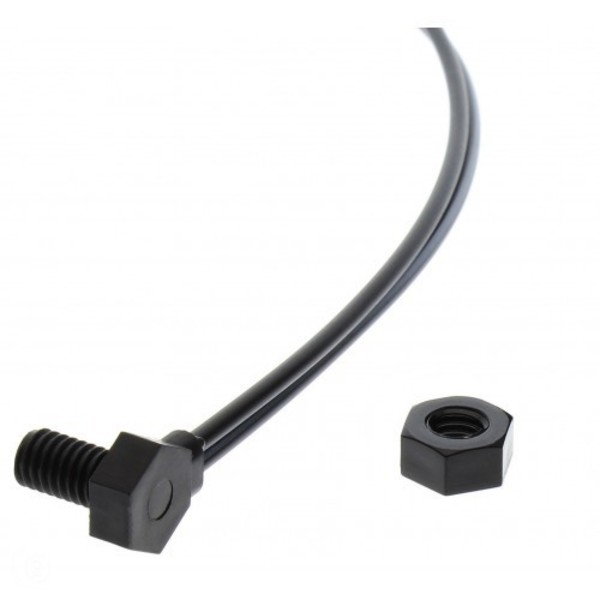

OPTEX NF25-DH M6 DIFFUSE 90° HI-TEMP NYLON
Starting At: $115.64
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF25-DH
IMS Product Code: 1780962
Packaging: Sold Individually
Description:
Optex NF25-DH M6 Diffuse 90° Hi-Temp Nylon
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded |
| Beam Sensing Direction | 90° Angle |
| Features | Nylon Body |
| Mounting Size Dimension | M6 |
| Mounting Size Length | 10 mm |
| D3RF Max Sensing Distance | 650mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 105° C |
| Fiber Core | 1.0 x 2 |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
