SIEMENS BQ1B020 1 POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: BQ1-B020
IMS Product Code: 1877818
Packaging: Box of 6
Sold Individually
Box of 5
Box of 6
Description:

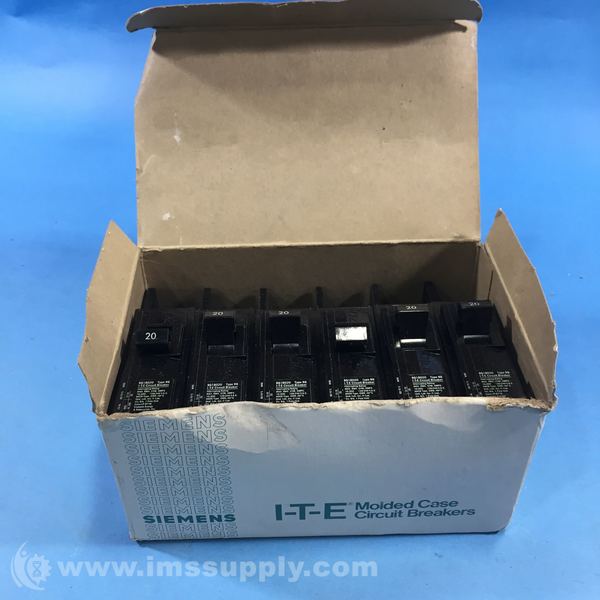

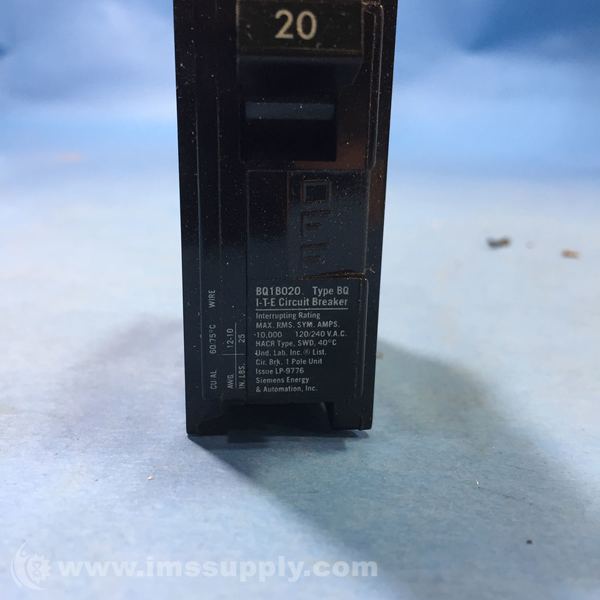

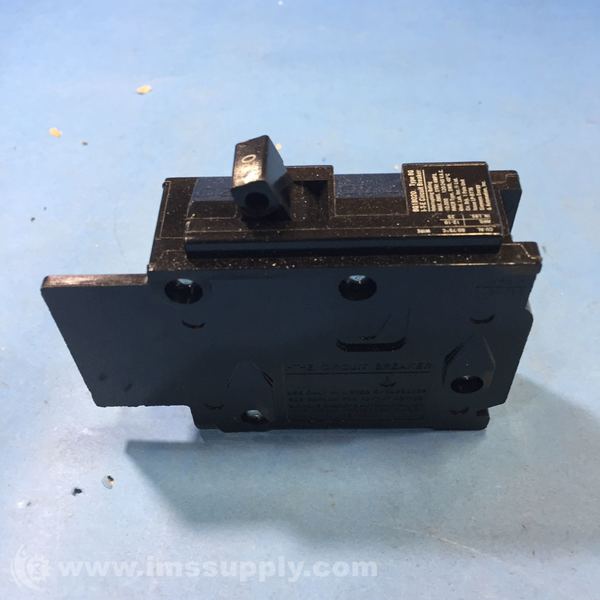

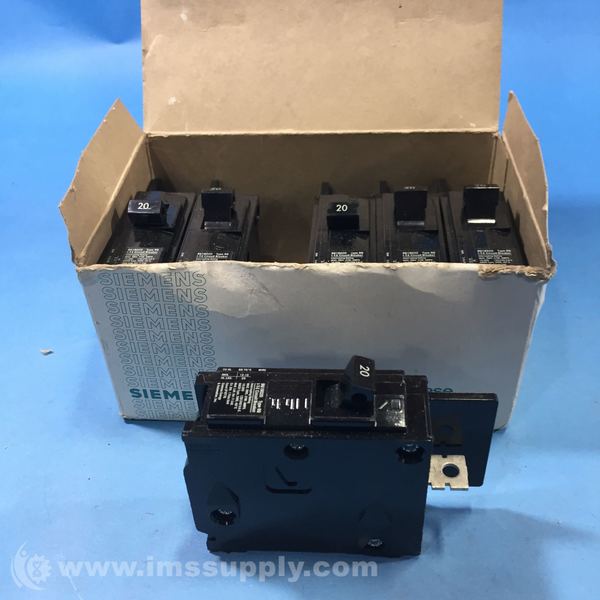

Siemens BQ1B020 1 Pole Circuit Breaker
Siemens BQ1B020 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The BQ1B020 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
- Series: BQ
- Amperage: 20
- Voltage: 120VAC
- Poles: 1
- Phase: 1
- Mounting Type: Bolt-On
- Interrupting Rating: 10kAIC at 120V
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous
- Length: 12.9 in
- Width: 4.6 in
- Height: 3.8 in
- Max Wire Size: 10 AWG
- Min Wire Size: 12 AWG (Al); 14 AWG (Cu)
