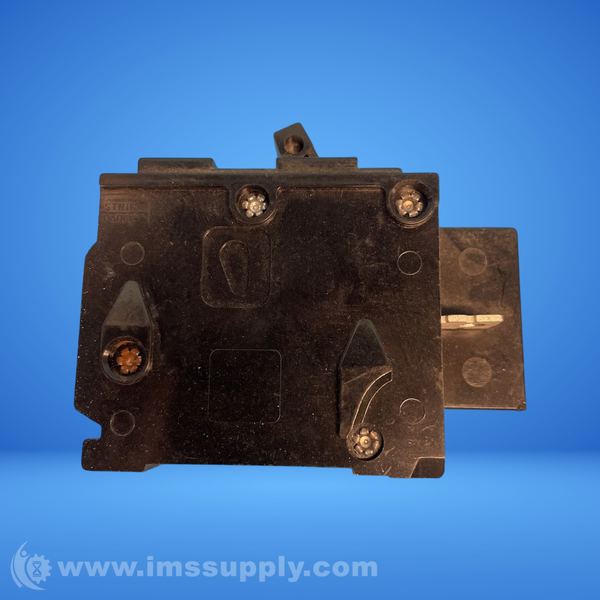

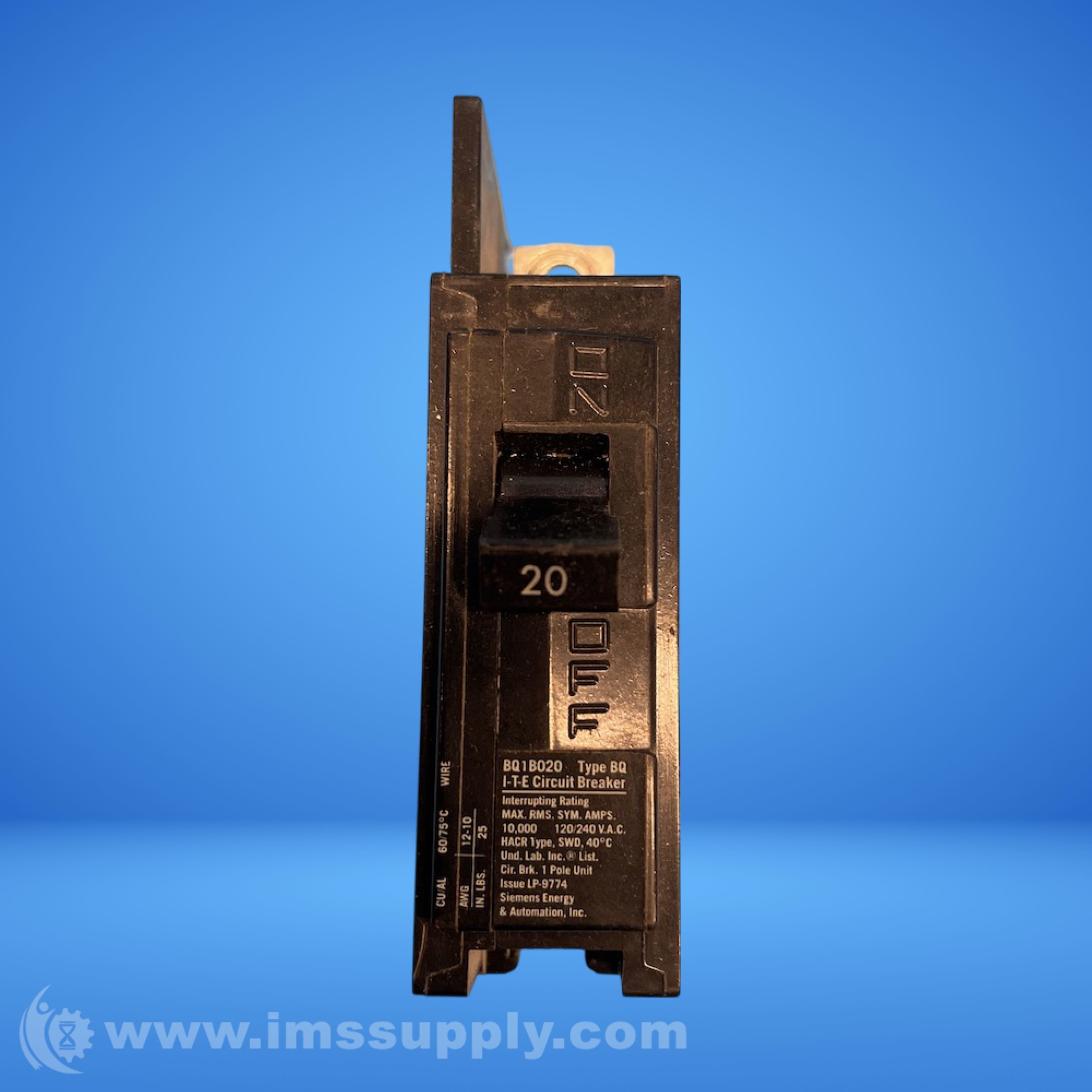

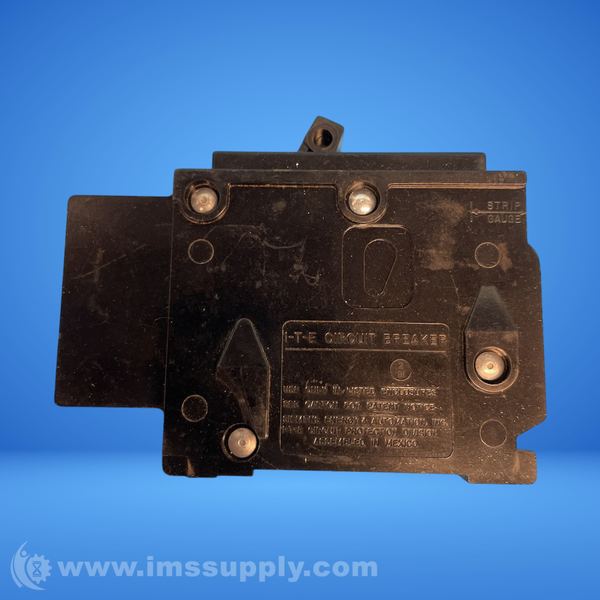

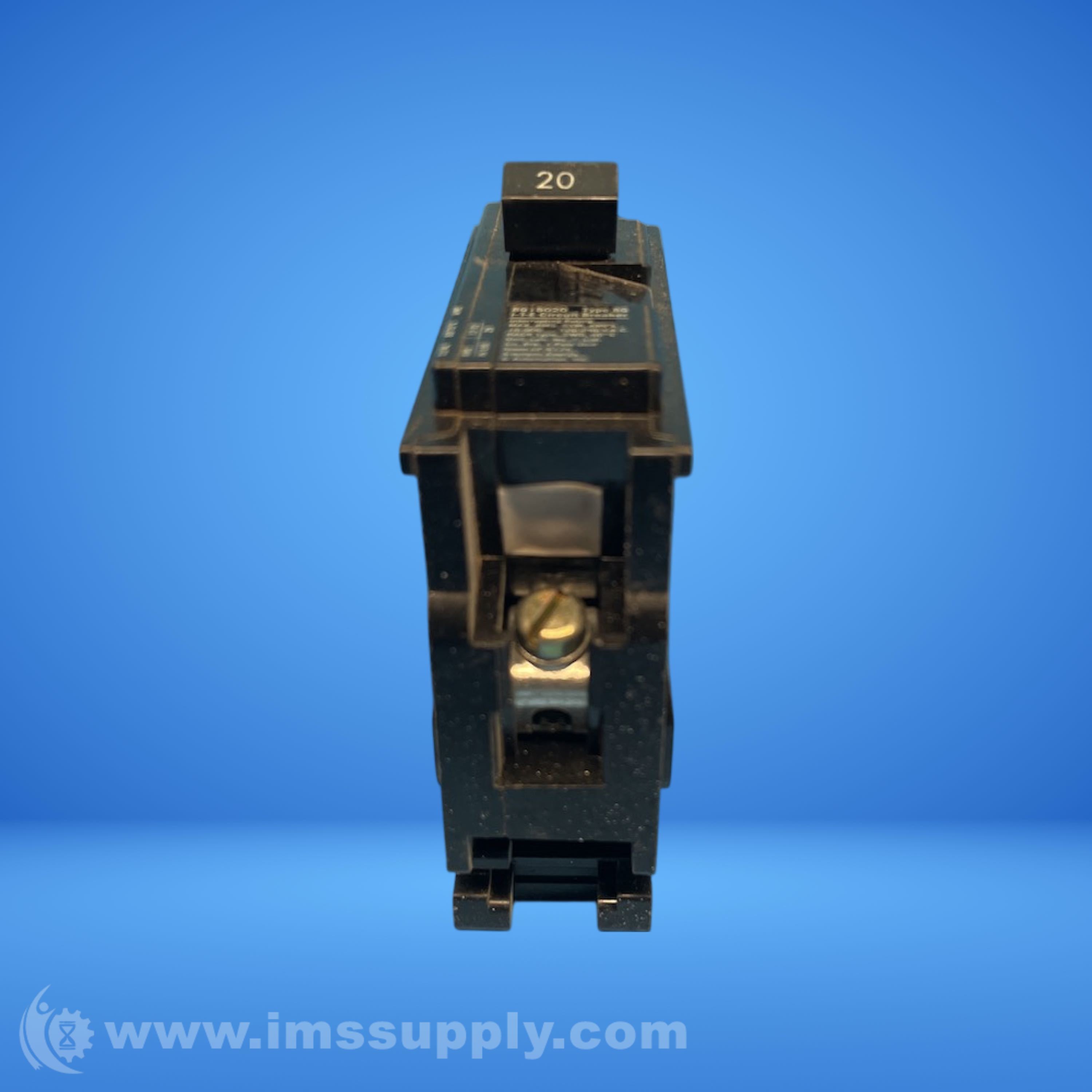

SIEMENS BQ1B020 1 POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: BQ1B020
IMS Product Code: 2055193
Packaging: Sold Individually
Sold Individually
Box of 5
Box of 6
Description:
Siemens BQ1B020 1 Pole Circuit Breaker
Siemens type BQ Bolt-On Breakers are a non-interchangeable trip molded case Bolt-On Circuit Breaker. All BQ Bolt-On Circuit Breakers are supplied with load side lugs.
Specifications
- Manufacturer: Siemens
- Family: BQ Series
- Cat. No.: BQ1B020
- Poles: 1
- Amp: 20
- Volt: 120/240
- Connection: Bolt-On
- Phase: 1
- Interrupting Rating: 10000 Ampere
- Dimensions (H x W x L): 3-3/4 Inch H x 1 Inch W x 2.37 Inch D
- Series: Series BQ
- Commercial/Residential: Commercial
- Voltage Rating: 240 VAC
- Amperage Rating: 20 A
- Frequency Rating: 60 Hz
- Interrupt Rating: 10 kA
- Frame: BQ
- Trip Type: Non-Interchangeable, Fixed Thermal Magnetic
- Number of Poles: 1
- Connection Type: Bolt-On
- Wire Size: 14 - 10 AWG Copper/Aluminum
- Terminal Type: Load Lug
- Enclosure Type: NEMA 1 Indoor, NEMA R Outdoor
- Mounting Type: Panel Board
- Temperature Rating: 40 deg C
- Approval: UL, CSA, NOM
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous
- Max Wire Size: 10 AWG
- Min Wire Size: 12 AWG (Al); 14 AWG (Cu)
- HACR Rated: Yes
- Standards: UL Listed and CSA Certified
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
